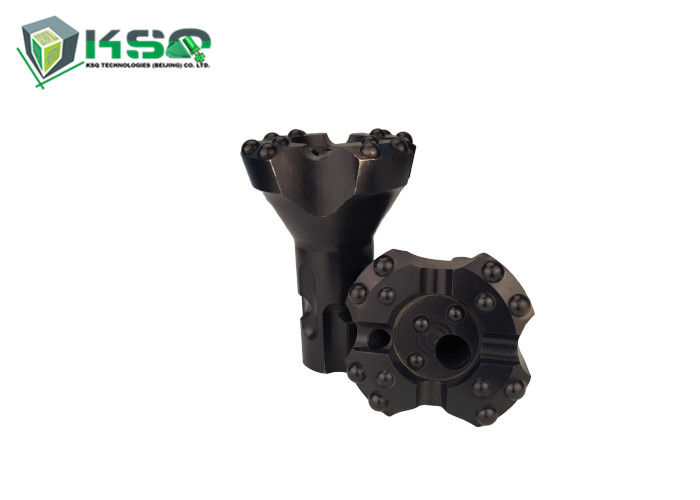

P110 P130 DTH Drill Bits Down The Hole Hammer Bit For Tunneling Mining

P110 P130 DTH Drill Bits Down The Hole Hammer Bit For Tunneling Mining

    • P110 P130 DTH Drill Bits Down The Hole Hammer Bit For Tunneling Mining
    • P110 P130 DTH Drill Bits Down The Hole Hammer Bit For Tunneling Mining
  • P110 P130 DTH Drill Bits Down The Hole Hammer Bit For Tunneling Mining

    Product Details:

    Place of Origin: China
    Brand Name: MIROC DTH Rock Drilling Tools
    Certification: API
    Model Number: Russian type DTH bit

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Pieces DTH Button Bit
    Price: Negotiation
    Packaging Details: Plywood Case
    Delivery Time: 20-25 days
    Payment Terms: Western Union, MoneyGram
    Supply Ability: 20000 pieces per month
    Contact Now
    Detailed Product Description
    Product Name: DTH Button Bit Series: P110-130
    Size: 254mm - 381mm Use: Tunneling, Mining,Quarrying,Water Well
    Color: Green Model: Russian Type DTH Bit

    High Penetration 254mm - 381mm Size Carbide Tipped DTH DrillDrill Bits for Tunneling Mining



    Down-the-hole rock tools (drilling tools) are rock drilling equipment which takes compressed air as power source to partially transfer impact power into drilling holes. An air distributing device in a top hammer controls a piston to move back and forth. An impact device arranged in the front of the top hammer transfers the impact powder to a down-the-hole bit to crush rocks.

    DTH rock drill bits are the tools of cutting rock. KSQ DTH bits are made of superior quality alloy steel which is made by Timken in U.S. Besides, all our DTH bits are using the brand "Element Six" T.C carbide which provides (the T.C buttons) for Boart Longyear. In addition art manufacturing technology makes our DTH bits with higher and more reliable quality.



    DTH Bit:
    Available size: 50mm ~ 1500mm
    Available Hammer: 1.5” ~ 32” CIR, BR, COP, COP, DHD, SD, MISSION, NUMA…
    Our Customers Fields:
    Northern Europe Foundation, Piling
    Western Europe Water Well, Geothermal Drilling
    Russia Oil, Infrastructure and Mining.
    South East Asia Mining, Geothermal
    South Africa Mining, Water Well Drilling
    Middle East Water Well Drilling
    Oceania Mining, Exploration, Water Well Drilling
    South America Water Well Drilling, Mining



    When selecting the right bit for optimum performance you have to balance penetration against bit life. On occasion you can successfully sacrifice bit life for penetration, remember the rule of thumb that states that a 10% increase in penetration covers at least a 20% loss in bit life. KSQ commonly has three basic bits head designs: Flat Face, Convex and Concave. These are designed for specific applications for all rock types, hardness’s and conditions:



    Face type Suitable pressure Application Typical formation Hole straightness Penetration rate
    Flat front High Very hard and abrasive Granite, limestone,basalt Fair Good
    Concave Low to medium Medium to hard, less abrasive, fractured Granite, limestone,basalt Very good Fair
    Convex Low to medium Soft to medium,non abrasive Granite, limestone,shale Average Excellent



    P110 P130 DTH Drill Bits Down The Hole Hammer Bit For Tunneling Mining

    Application:

    P110 P130 DTH Drill Bits Down The Hole Hammer Bit For Tunneling Mining



    More DTH button bits:

    dth bits specification:
    Shank style
    Diameter in mm Flat face Convex face Concave face Approx. weight Part number
    DHD 3.5 85   5.0 kgs DHD3.5-85
    90   5.8 kgs DHD3.5-90
    95   5.9 kgs DHD3.5-95
    100 6.1 kgs DHD3.5-100
    105 6.3 kgs DHD3.5-105
    DHD 340 105 8.6 kgs DHD340 -105
    110 8.8 kgs DHD340-110
    115 9.0 kgs DHD340-115
    120 9.5 kgs DHD340-120
    127 9.9 kgs DHD340-127
    DHD 350 135 16.2 kgs DHD350-135
    140 16.5 kgs DHD350-140
    146 17.0 kgs DHD350-146
    152 17.8 kgs DHD350-152
    165 18.5 kgs DHD350-165
    DHD 360 152 23.3kgs DHD360-152
    165 25.2 kgs DHD360-165
    171 25.8 kgs DHD360-171
    190 28.5 kgs DHD360-190
    203 29.5 kgs DHD360-203
    DHD 380 203   48.1 kgs DHD380-203
    216   52.0 kgs DHD380-216
    241   58.7kgs DHD380-241
    254   60.4 kgs DHD380-254
    292   80.1 kgs DHD380-292
    305   83.5kgs DHD380-305
