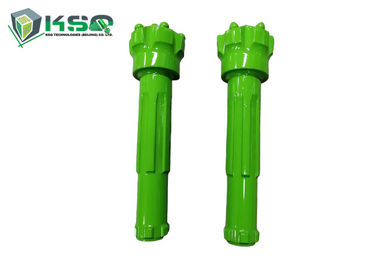

BR1 64mm DTH Drill Bits For BR Series Middle Air Pressure DTH Hammer ISO9001

BR1 64mm DTH Drill Bits For BR Series Middle Air Pressure DTH Hammer ISO9001

    • BR1 64mm DTH Drill Bits For BR Series Middle Air Pressure DTH Hammer ISO9001
    • BR1 64mm DTH Drill Bits For BR Series Middle Air Pressure DTH Hammer ISO9001
    • BR1 64mm DTH Drill Bits For BR Series Middle Air Pressure DTH Hammer ISO9001
  • BR1 64mm DTH Drill Bits For BR Series Middle Air Pressure DTH Hammer ISO9001

    Product Details:

    Place of Origin: China (Mainland)
    Brand Name: MIROC BR Series Button Bit
    Certification: ISO9001
    Model Number: DTH Button Bit

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece DTH Button Bit
    Price: Negotiation
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 25 days
    Payment Terms: L/C, T/T
    Supply Ability: 20000 pieces per month
    Contact Now
    Detailed Product Description
    Product Name: DTH Button Bit Hammer Type: BR1, BR2, BR3
    Diameter: 64mm 76mm 90mm 95mm Color: Black, Yellow, Green Etc.
    Face Design: Flat Face, Convex Face, Concave Face Carbide: Spherical, Ballistic

    BR1 64mm DTH Drill Button Bits For BR Series Middle Air Pressure DTH Hammer



    Now the high pressure DTH drill bit is currently used in the face design. There are four main types: end surface convex surface, end surface planar surface, end surface concave surface and end surface deep concave center type. Carbide more choice of ball teeth, spring teeth or ball teeth and spring teeth shared tooth mode.
    KSQ has a comprehensive range of DTH drill bits to match all conceivable applications. Each bit is made from quality alloy steel, and has been precision machined to produce a perfect body, heat treated to the required hardness, given surface compression for fatigue resistance, and fitted with precision buttons manufactured in-house. These are deigned for specific applications for all rock types, hardness's and condition. Bit life and rate of penetration are the most important criteria in selecting the right bit for a particular application.



    BR1 64mm DTH Drill Bits For BR Series Middle Air Pressure DTH Hammer ISO9001

    BR3 95mm DTH Button Bit Photo

    BR1 64mm DTH Drill Bits For BR Series Middle Air Pressure DTH Hammer ISO9001



    BR Series DTH Button Bit Specification

    1'' 2'' Middle Air Pressure DTH Bits
    DTH Button Bit Diameter Buttons and Size (mm) Flushing hole Weight
    mm inch Gauge Front kg
    BR1 64 2 1/2 6x10 3x10 2 2.6
    70 2 3/4 6x12 4x9 2 2.8
    76 3 6x13 5x10 2 3.2
    BR2 64 2 1/2 6x13 5x10 2 3.6
    70 2 3/4 6x13 5x11 2 4.0
    76 3 6x14 5x12 2 4.2

    We can also provide related products DTH hammers, ODEX system, symmetrix systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc



    Competitive Advantage

    • High-grade tungsten carbide inserts
    • Bit bodies manufactured from high-grade steel and processed using state-of-the-art CNC machinery and heat treatment


    We can design and manufacture the personalized products to meet your special applications, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.



    Applications

    • Underground mining

    • Down the hole rock drilling



    KSQ Related DTH Button Bits

    Product DTH Button Bits
    Low Air Pressure CIR80, CIR90
    3’’ DHD3.5, M30,
    4’’ DHD340, SD4,QL40, M40
    5’’ DHD350, SD5,QL50, M50
    6’’ DHD360, SD6,QL60, M60
    8’’ DHD380, SD8,QL80, M80
    Color Green, Gold, Black or based on customer requirements.
    MOQ: No MOQ required for testing and trial order



    Keywords

    DTH BIT, DTH Button Bit, Down The Hole Button Bit, Rock Bit, Rock Drill Bit,

    Low Air Pressure DTH Button Bit, High Air Pressure DTH Button Bit

    In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.
