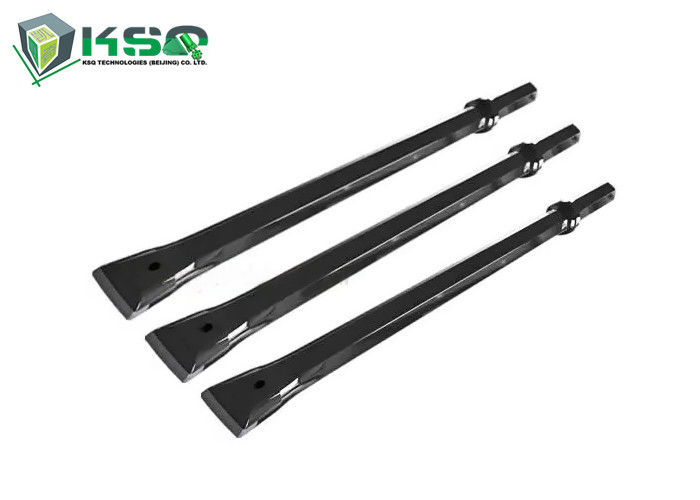

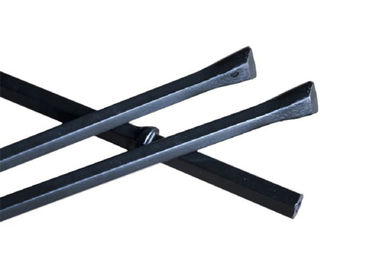

Hard Rock Mining Integral Drill Rod With Chisel Bit Head For Quarrying

Hard Rock Mining Integral Drill Rod With Chisel Bit Head For Quarrying

    • Hard Rock Mining Integral Drill Rod With Chisel Bit Head For Quarrying
    • Hard Rock Mining Integral Drill Rod With Chisel Bit Head For Quarrying
  • Hard Rock Mining Integral Drill Rod With Chisel Bit Head For Quarrying

    Product Details:

    Place of Origin: China
    Brand Name: Mirco
    Model Number: Integral drill rod

    Payment & Shipping Terms:

    Minimum Order Quantity: negociated one
    Price: negociated one
    Packaging Details: wooden box or plastic box
    Delivery Time: 10-15 days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 100000 Piece/Pieces per Month
    Contact Now
    Detailed Product Description
    Product Name: Integral Drill Rod Type: Drill Rods
    Machine Type: Drilling Tool Material: 55simnmo
    Processing Type: Forging Use: Rock Drilling/Water Well Mining/quarrying
    Length: 500~8000mm Shank Type: Hex22*108mm

    Hard Rock Mining Intergral Steel Drill Rod With Chisel Bit Head For Quarrying


    Product Introduction:



    Integral drill rods are ideal in small hole drilling, all integral drill rods consist of hex. rods with integrated cemented carbide chisel-shaped bit heads. With the same steels as Sandvik and the best carbides made in China, we are supplying different lengths of integral drill rods with different head diameters:
    Shank sizes: Hex. 19mm, Hex. 22mm;
    Head diameters: 26mm ~ 42mm;
    Effective lengths: 400mm ~ 7000mm;





    Specification



    H22-Chisel Bit Integral Drill Steel - Shank 22 x108mm



    The H22 Integral drills steels, H22 x 108 mm shank, are the most common type within the Dimensional Stone Quarrying Industry. The product range includes a Ø26 - 40 mm bit diameters and lengths from 0.4 – 7.2 meters.



    Length Bit Diameter Weight Part Number
    mm foot mm kg
    800 2 5/8 34 3 4148300035
    1600 5 1/4 33 5.2 4148300036
    2400 7 7/8 32 8 4148300037
    3200 10 1/2 31 10.2 4148300038
    4000 13 1/8 30 12.9 4148300039
    4800 15 3/4 29 15.1 4148300040
    5600 18 3/8 28 17.6 4148300041
    6400 21 27 20.1 4148300042
    7200 23 5/8 26 22.5 4148300043

    800 2 5/8 40 3 4148300044
    1600 5 1/4 39 5.2 4148300045
    2400 7 7/8 38 8 4148300046
    3200 10 1/2 37 10.2 4148300047
    4000 13 1/8 36 12.9 4148300048
    4800 15 3/4 35 15.1 4148300049
    5600 18 3/8 34 17.6 4148300050
    6400 21 33 20.1 4148300051
    7200 23 5/8 32 22.5 4148300052
    8000 26 1/4 31 25 4148300053

    400 1 1/3 34 1.7 4148300054
    800 2 5/8 33 3 4148300055
    1200 4 32 4.1 4148300056
    1600 5 1/4 31 5.2 4148300057
    2000 6 5/9 30 6.7 4148300058

    600 2 41 2.4 4148300059
    1200 4 40 4.3 4148300060
    1800 6 39 6.2 4148300061
    2400 7 7/8 38 8 4148300062

    400 1 1/3 41 1.7 4148300063
    800 2 5/8 29 3 4148300064
    800 2 5/8 38 3.1 4148300065
    1200 4 39 4.3 4148300066
    1600 5 1/4 36 5.2 4148300067
    1800 6 36 6 4148300068
    2000 6 5/9 32 6.7 4148300069
    2400 7 7/8 27 8 4148300070
    3200 10 1/2 27 10.2 4148300071
    3200 10 1/2 32 10.3 4148300072
    6400 21 30 20.1 4148300073
    8000 26 1/4 26 25 4148300074
