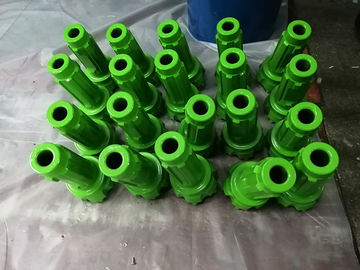

Diameter 90mm CIR90 Stone Drilling Bits For Hammer Down The Hole Drilling

Diameter 90mm CIR90 Stone Drilling Bits For Hammer Down The Hole Drilling

    • Diameter 90mm CIR90 Stone Drilling Bits For Hammer Down The Hole Drilling
    • Diameter 90mm CIR90 Stone Drilling Bits For Hammer Down The Hole Drilling
    • Diameter 90mm CIR90 Stone Drilling Bits For Hammer Down The Hole Drilling
  • Diameter 90mm CIR90 Stone Drilling Bits For Hammer Down The Hole Drilling

    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Certification: SGS certified, ISO
    Model Number: DTH Bits

    Payment & Shipping Terms:

    Minimum Order Quantity: negotiation
    Price: negotiation
    Packaging Details: wooden box
    Delivery Time: 15-20days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union
    Supply Ability: 20000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: 90mm CIR90 DTH Drill Bits Diameter: 90mm
    Shank Type: CIR90 Material: Carbide
    Processing Type: Forging Usage: Drifting Tunneling Bench Drilling

    Diameter 90mm CIR90 Dth Drill Bits For Hammer Drill Down The Hole Drilling



    DTH Button Bits

    DTH drilling is a percussion system driving a piston inside hammer body with up and down motion by compressed air and transmitting an intensive percussion energy to the bit to enable the drilling by crushing the rock. Drilling method by DTH hammer exerts high drilling performance especially for drilling hard rock and contributes for shortening work schedule. Hence, this method is widely utilized for foundation work, landslide prevention work, quarrying services, marine civil work, etc.



    KSQ makes and supplies the finest and most efficient Down-the-Hole (DTH) hammers and bits for the mining, construction and water well industries. Sansung DTH hammers transmit intensive impact energy with low energy loss. This results in good rock breakage, high penetration rates and high productivity. The equipment is designed to give optimal hole quality, reliability, and long service life, as well as the best blasting results and low total operation cost.



    ​We can design and manufacture the personalized products to meet your specical apllication, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.



    Hammer size: 2~3.5”   4~8”  10~32

    Hammer Shank Style: BR, AHD, Cop, Mission...

                                          Mincon, Numa, QL, TD...

                                         SD, DHD, XL, ACD, Mach...

    Face Design: Flat, Concave, Convex





    Applications



    • Underground mining

    • Down the hole rock drilling



    Competitive Advantage



    • High grade tungsten carbide inserts
    • Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



    Specification

    Diameter Buttons and Size (mm) Flushing hole Weight Part Number
    mm inch Front Gauge kg
    CIR90 Ballistic button/Convex face
    90 3 1/2 2×13,2×12 6×14 2 3.5 4148301213
    93 3 5/8 2×13,2×12 6×14 2 3.6 4148301214
    95 3 3/4 2×14,2×12 6×14 2 3.7 4148301215
    CIR90 Spherical button/Flat face
    90 3 1/2 4×12 6×14 3 3.5 4148301216
    93 3 5/8 4×12 6×14 3 3.6 4148301217
    95 3 3/4 4×12 6×14 3 3.7 4148301218









    About US



    KSQ Technologies (Beijing) Co. Ltd. is a diversified enterprise based in Beijing, China, offering a portfolio of products that help contribute to a better bottom line and increase workplace safety for the construction and mining industries.



    KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations. Our operations are based on the unique expertise of our people and knowledge with customer processes.



    MIROC® Rock Drilling and Ground Support Tools include:


    Integral Rods
    Plug Hole Rods
    Tapered Drilling Tools
    Extension Drilling Tools
    Drifting and Tunneling Tools
    Reaming Tools
    Shank Rods
    Shank Adapters (Striking Bars)
    Down-the-hole (DTH) Bits
    Down-the-hole (DTH) Hammers



    Diameter 90mm CIR90 Stone Drilling Bits For Hammer Down The Hole Drilling
