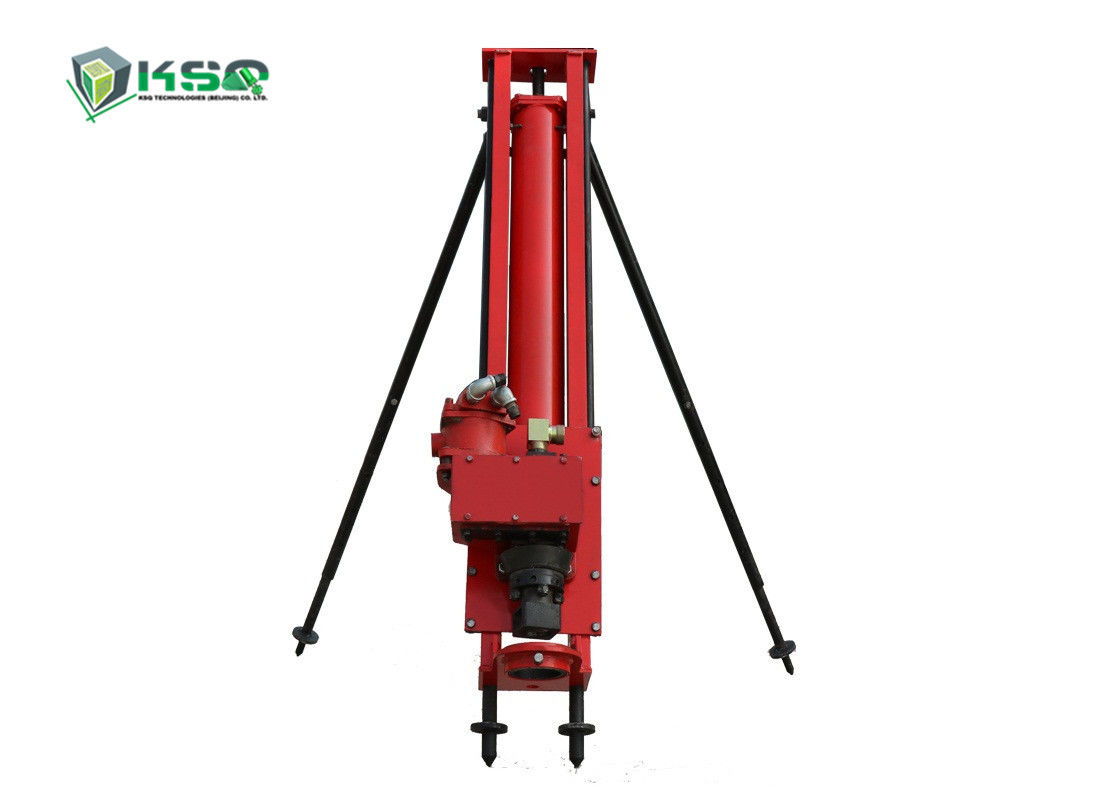

70 100 Type Portable Pneumatic Electric Water Well Drilling Rig Down-The-Hole Drilling Rig Machine

70 100 Type Portable Pneumatic Electric Water Well Drilling Rig Down-The-Hole Drilling Rig Machine

70 100 Type Portable Pneumatic Electric Water Well Drilling Rig Down-The-Hole Drilling Rig Machine
70 100 Type Portable Pneumatic Electric Water Well Drilling Rig Down-The-Hole Drilling Rig Machine
70 100 Type Portable Pneumatic Electric Water Well Drilling Rig Down-The-Hole Drilling Rig Machine
Product Details:
Place of Origin: China (Mainland)
Brand Name: KSQ
Certification: ISO9001
Model Number: KSQ-100 Pneumatic
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pieces
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 7-10 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Drilling Diameter: 90-130mm Drilling Pipe Diameter: 50mm
Apply Rock Hardness: ≥ 20 Drilling Depth: 25m
Weight: 450kg Warranty: 1 Year
High Light:

Pneumatic DTH Drilling Rig

,

Water Well DTH Drilling Rig

High Efficiency Small Pneumatic DTH Drilling Rig Portable Borehole Water Well Drilling Rig Equipment for Sale



KSQ type 100 Small pneumatic down-the-hole drilling rig is designed for these highway, railway, water conservancy, mine construction engineers which road inconvenient in the earlier projects stage.The auxiliary equipment for supplying power is lighter and easier to relocation and transfer.In the case of utmost reduce the main machine weight can still meet the needs of drilling large diameter and deep hole operations.

But also is suitable for the slope support and other projects.So the machine is a kind of portable and economic model.

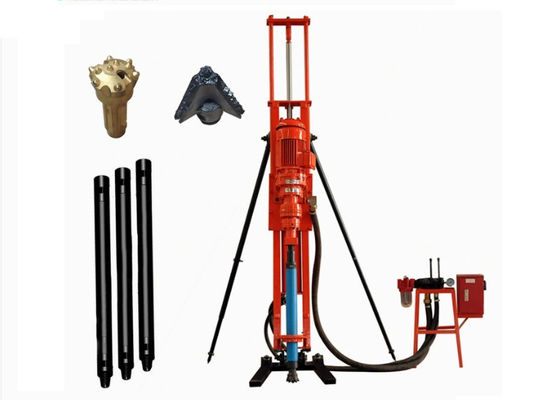

The whole set of equipment includes:

1. drill rig
2. control console
3. suppprt legs
4. impactor
5. drill pipes
6. drill bits
7. air hoses



Description:
1. High efficiency, which makes the low cost operation.
2. Simple structure. Easy to be installed, uninstalled and maintained.
3. More user-friendly operation.
4. Light overall weight and separated structure, making it convenient to move and transport.



Performance advantages:
1. Safe and stable traveling system
Low gravity, great ground clearance, make cars easily make drill through rugged road.The advanced automatic balance system, not only makes drilling stable, also greatly reduced the impact of the car, and ensure the safe driving.
2. Centralized operating system of Mobile Drilling Rig Drill carriage designed with advanced hydraulic system and completely functional gas circuit system.
3. Powerful feeding and rotating system of Mobile Drilling Rig
Promote reducer drives adopt turbine and worm, which have a big push- pull effort and can reliaze self-locking.
4. Adjustable boom
Adopt adjustable boom, the dip angle of hole and Level hole height can adjust by control the oil tank stretch out and draw back.



Technical Parameter:

Model Type 100
Drilling diameter (mm) 90-130
Rock ruggedness coefficient >20
Drilling depth (m) 25
Rotate speed (r/min) 110-160
Working air pressure (Mpa) 0.5-1.0
Air comsumption (m3/min) 12
Propulsion stroke (mm) 140
Propulsive effective stroke(mm) 1070
Max propelled force ( N) 9600
Electric motor power (kw) -----
Electric Motor Voltage( V) -----
Rated speed (r/min) 3200
Drilling rod (mm) 50/60
Drilling rod length (mm) 1025
Dimension (mm) 2230*380*550
Weight (kg) 450



Other Type of Drill Rig:

Model KSQ-70 KSQ-100 KSQ-120
Drilling Diameter 50-90mm 80-100mm 100-150mm
Drilling Depth ≤15m ≤25m ≤40m
Electric Motor 380V, 50Hz, 3Ph 380V, 50Hz, 3Ph 380V, 50Hz, 3Ph
Motor Power 3kw 4kw 5.5kw
Drilling Pipe OD 42mm 50mm 60mm
Quantity 15pcs 20pcs 20pcs
Impactor OD 70mm 90mm 90mm
Air Consumption 4m3/min 6m3/min 10m3/min
Air Pressure 0.5-0.7Mpa 0.5-1.0Mpa 0.5-1.0Mpa
Dimension 1740*260*420mm 2200*440*550mm 2230*380*550mm
Weight 280kg 410kg 460kg


70 100 Type Portable Pneumatic Electric Water Well Drilling Rig Down-The-Hole Drilling Rig Machine 0



Packing & Shipping
1. Packaging:
1) Wrapped by proctective film;
2) Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
