Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: API
Model Number: DTH Drill Pipe
Payment & Shipping Terms:
Minimum Order Quantity: 5 Pieces DTH Pipe
Price: negotiation
Packaging Details: Bundle and Wooden Box
Delivery Time: 10- 25 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20000pcs per month
Contact Now
Detailed Product Description
Type: RC Hammer Drill Pipes Length: 1000mm-6000mm
Diameter: 76mm 89mm 102mm Processing Type: Forging
High Light:

RC Hammer Drill Pipes

,

Forging DTH Drill Pipe

Double Wall Drill Pipes Reverse Circulation Drill Pipe for Re542 Re543 Re545 Re547 RC Reverse Circulation DTH Hammer

Reverse Circulation RC Drilling Rods is also called Double wall drill pipe, double drill pipe or Dual Wall drill pipe. It consists of two layers of inner and outer drill pipes (called inner pipe and outer pipe). The inner and outer pipes constitute an annular gap, which is a channel for pumping the flushing medium to the bottom of the hole when hydraulic rock drilling and center sampling drilling. The central hole of the inner tube is fixed as a whole by discharging the flushing medium, and each double-walled drill pipe is connected with the screw of the outer tube to ensure transmission of torque and pressure. The inner tube is usually connected by a plug-in method, which generally only serves as a flushing medium. Therefore, a sealing device is required at the plug-in place.
Double Wall Drill Pipes are used in drilling of wells with diameter 84 and 93 mm and depth up to 300 m in soils of II-V drill ability classes with seams of soils up to VII drill ability class in the fulfilment of all necessary prospecting and geochemical operations, in geological mapping and exploration of deposits of solid minerals.

The reverse circulation drill rod has four threads which adds to machine operating time. The purpose of the two extra threads is to allow the inner tube to be replaced in the field. It also allows the driller to replace the box tool joint with a new tool joint, without welding and can be done at the site. - We use heat threaded 4130 alloy tool joints; this alloy allows driller to employ a hard facing program without fear of embitterment. We use a micro-alloy midsection (mid-body), ST52V, 90KS1 MIL VLD possessing a superior abrasion resistance. Our inner tube midsection (mid-body) is a heavy-wall mechanical tube, not a pipe. The inner tube is fixed and won't vibrate under most conditions. The inner tube ends are made from a heat treated alloy and the male end is machine finished after welding for perfect alignment. The o-ring retainers absorb the percussion forces to eliminate problems arising from the transfer of vibration and torque loads to the outer pipe.



Competitive Advantage

High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance



Specification:

Reverse circulation drill pipe/Double wall drill pipe/Dual Wall drill pipe
Outer tube O/D in Inner tube in Lerngth m Type of thread Range of dril
3.5 1.5 3 ~ 6 Remet, Metzke, Matrix, others 4-1/8-4-3/4
4 2 3 ~ 6 Remet, Metzke, Matrix, others 4-3/4-5-1/2
4.5 2 & 2-1/2 3 ~ 6 Remet, Metzke, Matrix, others 5-1/8-6
6.625 3 3 ~ 6 Remet, Metzke, Matrix, others 7-7/8-15
10.75 5 3 ~ 6 Remet, Metzke, Matrix, others Over 15



Pictures:

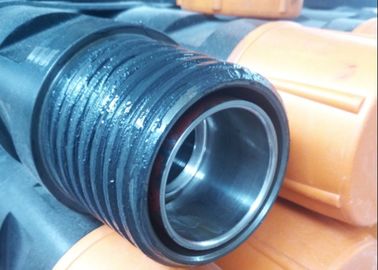

Double Wall Drill Pipes Reverse Circulation Drill Pipe For Re542 Re543 Re545 Re547 RC Reverse Circulation DTH Hammer 0

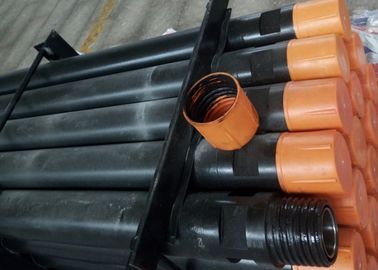

Double Wall Drill Pipes Reverse Circulation Drill Pipe For Re542 Re543 Re545 Re547 RC Reverse Circulation DTH Hammer 1



Applications

• Underground mining
• Quarry benching operations
• Water well drilling



Company Information

KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.

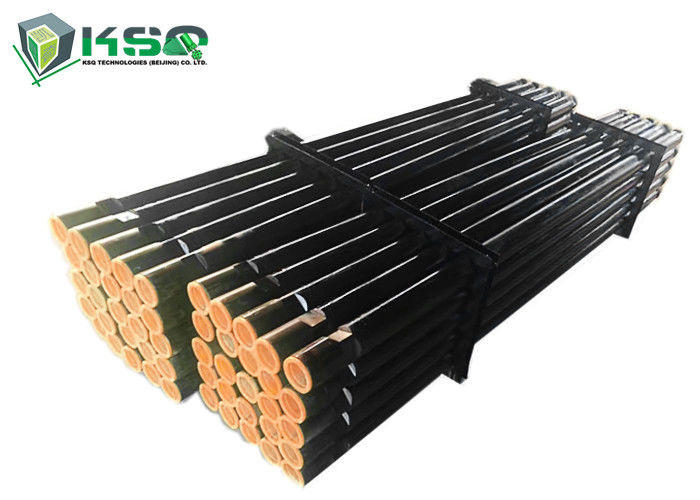

Double Wall Drill Pipes Reverse Circulation Drill Pipe For Re542 Re543 Re545 Re547 RC Reverse Circulation DTH Hammer 2
