| Place of Origin: | Shangdong,China |
| Brand Name: | MIROC |
| Certification: | API |
| Model Number: | DHD360 Down The Hole Hammer |
| Minimum Order Quantity: | 5 Pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden Plate |
| Delivery Time: | 10-25days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 20000pcs per month |
| Material: | Tungsten Carbide And High Quality Carbon Steel | Processing Type: | CNC Milling And Proprietary Heat Treatment Process |
|---|---|---|---|
| Use: | Tunneling, Mining,Quarrying,Construction | Application: | Tunneling,piling,water Well,blasting,quarrying,concrete Drilling |
| Type: | Down The Hole Hammer | Series: | COP, MISSION, SD, DHD,QL |
| Bit Diameter: | 110-508MM | Color: | Green, Black And Demaned By Customer |
| High Light: | Atlas Copco Down Hole Hammer,Down The Hole DTH Hammers |
||

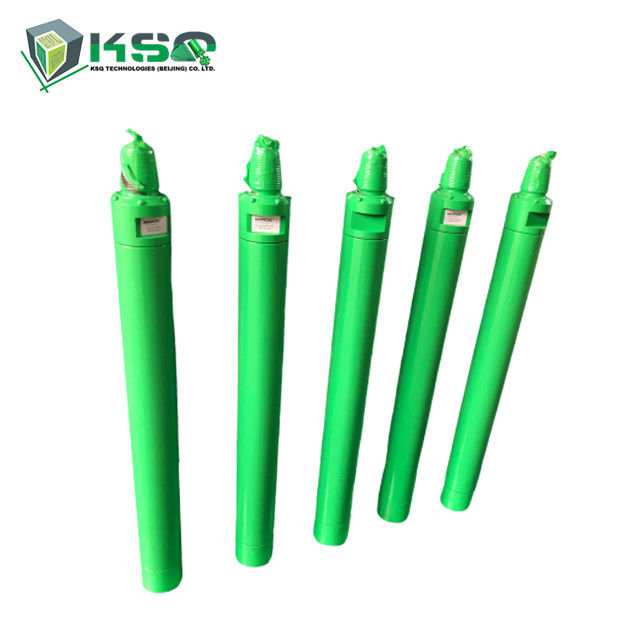

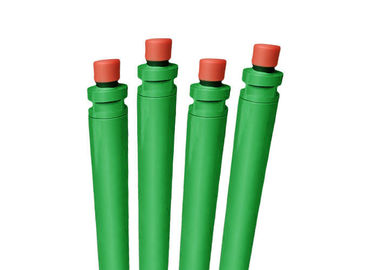

Atlas Copco High Air Pressure Drilling Hammer For Hard Rock Mining Down The Hole DTH Hammer
Describtion
In DTH hammers, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH hammers a nearly constant penetration rate regardless of hole length.
• Small to medium size drilling diameters
• Works in low pressure range, capable of drilling shallow to medium hole lengths
| Product Name: | QL60 DTH Hammer for Drilling / Down the Hole Hammer |
| Description: |
high pressure mining drilling DTH hammer are used for blast hole drilling and water well drilling project. Working with DTH drilling pipe and DTH drill bit, mainly applied in Mining, Marble quarry or well drilling and other construction projects. |
| Quality level: | 95% similarity to COP/SD/MISSION/QL/BR/DHD etc famous brand |
| MOQ: | 1 PC |
| Series: | COP/ SD/ DHD/ IR/ Mission/ QL/ BR/ CIR etc |
Specification
| DTH hammer type | DHD360 | SD60 | QL60 | KSD85 | |
| Length(less bit) mm | 1248 | 1261 | 1212 | 1492 | |
| Weight(less bit) kg | 100 | 100 | 95 | 188 | |
| External diameter mm | Φ142 | Φ142 | Φ146 | Φ180 | |
| Bit shank | COP64 DHD360 | SD6 | QL60 | COP84 DHD380 | |
| Hole range(mm) | Φ155-190 | Φ155-190 | Φ155-190 | Φ195-254 | |
| Connection thread | API 3 1/2"Reg | API 3 1/2"Reg | API 3 1/2"Reg | API 4 1/2"Reg | |
| Working pressure | 1.0-2.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa | |
| Impact rate at 1.5-1.7Mpa | 23Hz | 23Hz | 23Hz | 20Hz | |
| Recommended Rotation speed | 20-30r/min | 20-30r/min | 20-30r/min | 20-30r/min | |
| Air consumption | 1.0Mpa | 10.0m3/min | 10.0m3/min | 10.0m3/min | 15.0m3/min |
| 1.8Mpa | 20.0m3/min | 20.0m3/min | 20.0m3/min | 26.0m3/min | |
| 2.4Mpa | 28.5m3/min | 28.5m3/min | 28.5m3/min | 34.0m3/min | |
Advantages
| dth hammer: | dth hammer spare parts |
| More efficient energy transfer. | Valveless air distribution. More reliable. |
| Faster drilling speed, 15%-30% higher than others. | Simple design of the piston, long life |
| Lower air consumption and lower oil consumption. oil consumption is about 10% lower than others | Fewer internal parts, simple structure, longer life, less failure and easier to maintain because all the parts are heat treated. |
| Direct factory price | Easy to disassemble because the top sub, the drive chuck and the external cylinder are connected by multi-step thread. |
Applications
• Underground mining
• Quarry benching operations
• Water well drilling
Warranty of dth hammers:
In the early use if the dth hammer, rupture appears on parts such as external cylinder, piston and drive chuck ect. the broken parts can be compensated according to the situation.
Packaging & Shipping:
Internal package : By carton box with foam ,one pc dth hammer per carbox
External package: By wooden box, one pc dth hammer per wooden box.
Round-sealed package can prevent damaging during delivery.
Delivery ways of dth hammers:
Sample order can delivery by Air or International express, such as DHL, UPS, Fedex, ect.
Batch orders can delivery by Air , By truck or by Sea
We can choose most favorable delivery ways for our customers
