| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | API |
| Model Number: | DTH Drill Pipe |
| Minimum Order Quantity: | 5 Pieces DTH Pipe |
|---|---|
| Price: | negotiation |
| Packaging Details: | Bundle and Wooden Box |
| Delivery Time: | 10- 25 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 20000pcs per month |
| Type: | DTH Hammer Drill Pipes | Length: | 1000mm-6000mm |
|---|---|---|---|
| Diameter: | 76mm 89mm 102mm | Processing Type: | Forging |
| High Light: | 89mm water well drill rods,API water well drill rods,Forging DTH Drill Pipes |
||
Water Well Drill Rods 89MM With 3-1/2" API Standard Reg DTH Drill Pipes
Describtion
Water Well drill rods widely used in geological exploration, coal mining, water conservancy & hydropower, highway, railway, bridge, building construction etc.
The type have exploring water well rods, exploring water spiral drill rods, outburst-prevention drill rods, DTH drill rods, triangle drill rods, anchor-shank drill rods, extension rods, EU drill rods, RC drill rods, KLEMM drill rods, Ingersoll Rand drill
rods etc.
Our SD drill rods produced by CNC machine, and choose high grade steel material thru heat treatment of the steel tube & thread joint to improve the steel material streagth and insurance the thread wear life.
Specification:
| pipe diameter(mm) | pipe length(mm) | wall thickness(mm) | connection thread | trigger slot | |
| inch | mm | ||||
| 3 | 76 | 1000-6000 | 5.00 | API2 3/8”REG | 57/64.5 |
| 3 | 76 | 1000-6000 | 6.00 | API2 3/8”REG | 57/64.5 |
| 3 | 76 | 1000-9000 | 8.00 | API2 3/8”REG | 57/64.5 |
| 3 1/2 | 89 | 1000-6000 | 6.00 | API2 3/8”REG | 70/64 |
| 3 1/2 | 89 | 1000-6000 | 6.00 | API2 3/8”REG | 70/64 |
| 3 1/2 | 89 | 1000-9600 | 8.00 | API2 3/8”REG | 70/64 |
| 3 1/2 | 89 | 1000-9600 | 8.00 | API2 3/8”REG | 70/64 |
| 4 | 102 | 1000-9000 | 8.00 | API2 3/7”REG | 76/89 |
| 4 | 102 | 1000-9000 | 10.00 | API2 3/7”REG | 76/89 |
| 4 1/2 | 114 | 1500-7620 | 6.00 | API3 1/2”REG | 89/95 |
| 4 1/2 | 114 | 1500-9140 | 8.00 | API3 1/2”REG | 89/95 |
| 4 1/2 | 114 | 1500-9140 | 8.00 | API3 1/2”REG | 89/95 |
| 4 1/2 | 114 | 1500-9140 | 10.00 | API3 1/2”REG | 89/95 |
| 4 1/2 | 114 | 1500-9140 | 18.00 | API3 1/2”REG | 89/95 |
| 5 | 127 | 1500-9500 | 10.00 | API3 1/2”REG | 89 |
| 5 | 127 | 1500-9500 | 12.00 | API3 1/2”REG | 89 |
| 5 | 127 | 1500-9500 | 14.00 | API3 1/2”REG | 89 |
| 5 | 127 | 1500-9500 | 18.00 | API3 1/2”REG | 89 |
| 5 1/2 | 140 | 1500-9500 | 9.00 | API4 1/2”REG or 4’FH | 114 |
| 5 1/2 | 140 | 1500-9500 | 10.00 | API4 1/2”REG or 4’FH | 114 |
| 5 1/2 | 140 | 1500-9500 | 12.00 | API4 1/2”REG or 4’FH | 114 |

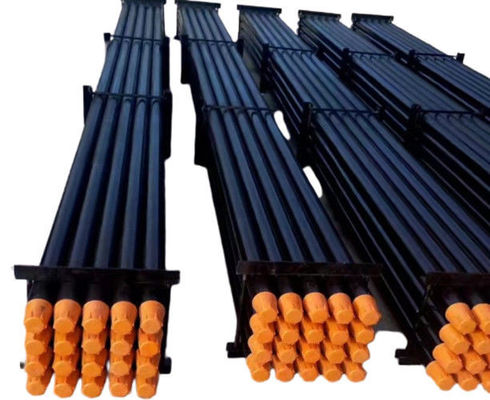

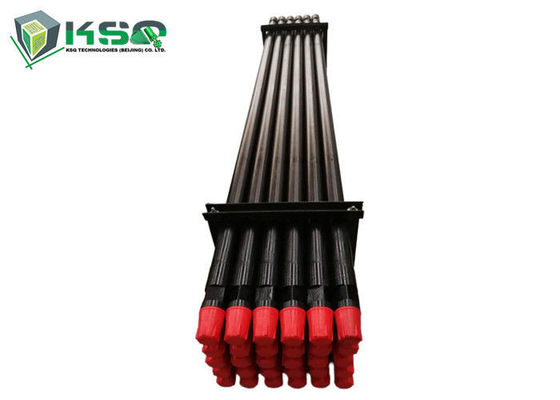

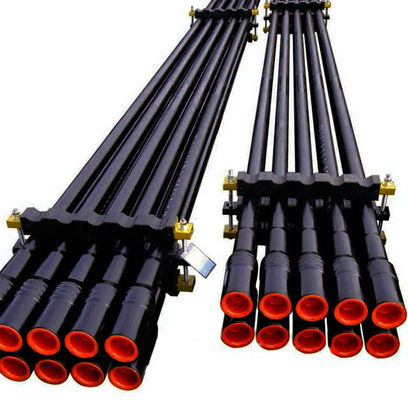

Pictures:
Applications
• Underground mining
• Quarry benching operations
• Water well drilling
The information you may like to know before order:
1. Methods of Payment:
T/T (Telegraphic Transfer) or L/C at sight
2. Handling time for an order
Based on order quantity, normally it takes 10 days for production.
Only 2 days if we have stock on your request size.
3. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
4. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
5. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available at any time
c. Free replacement will be provided once the failure confirmed caused by our product quality
