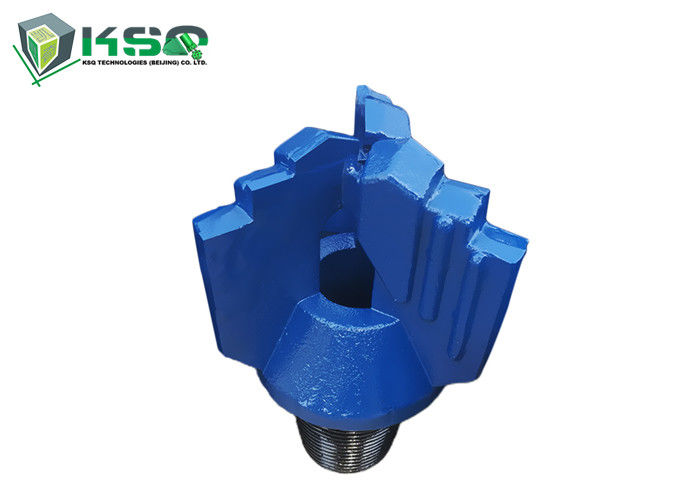

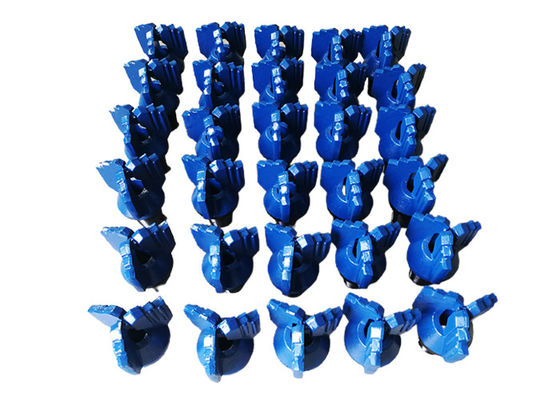

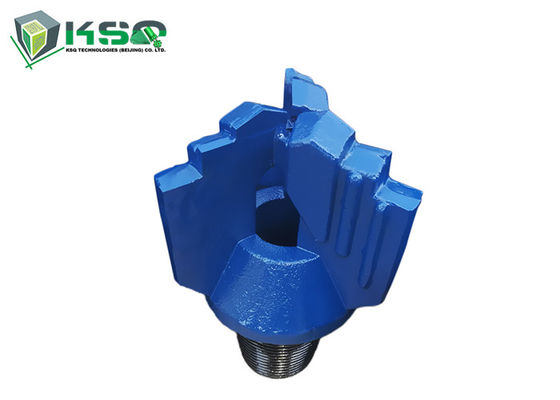

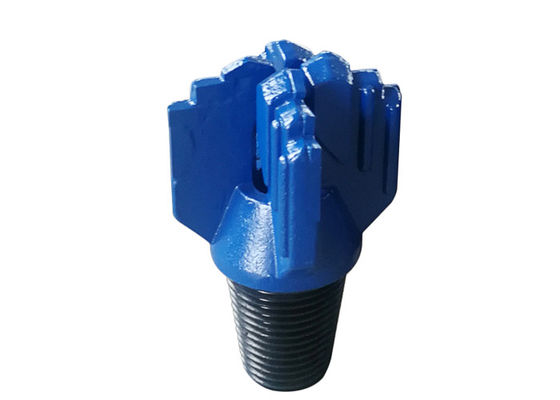

Carbide Insert 3 Blades Water Well Steel Drag Bit

Carbide Insert 3 Blades Water Well Steel Drag Bit

  • Carbide Insert 3 Blades Water Well Steel Drag Bit
  • Carbide Insert 3 Blades Water Well Steel Drag Bit
  • Carbide Insert 3 Blades Water Well Steel Drag Bit
Carbide Insert 3 Blades Water Well Steel Drag Bit
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: API ISO
Model Number: Drag Bit
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden case
Delivery Time: 10-20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Product Name: Drag Drill Bit Material: Tungsten Carbide
Use: Well Drilling Color: Blue,red,gold Etc
Application: Water, Oil, Gas Well Drilling, Etc Bearing: Rubber Sealed Bearing
Formation: Medium Soft Rock Formation Packing: Wooden Case
High Light:

Tungsten Carbide drag bit drilling

,

tc Well drag bit drilling

,

PDC drag bit drilling

Carbide Insert 3 Blades Water Well Steel Tricon Drag Bit



A drag bit is usually designed for soft formations such as sand, clay or some soft rock. However, they will not work well in coarse gravel or hard rock formations. Uses include drilling water wells, mining, geothermal, environmental and exploration drilling. Whenever possible, they should be used to drill pilot holes because they produce cuttings that are easiest to log.

Three-wing bits tend to drill faster, whereas four-wing bits are longer-lasting, more durable, and drill a straighter hole.



Application of PDC drag drill bit

Drag bits are applied to rock formation f≤6,like mudstone, shale, sandstone, etc., mainly used for drain hole, grouting hole, geological and hydrology drilling, etc.

Our supplies a variety of drag bits for many types of projects drilling needs, including 3-wing type bits for soft and medium formations, 4-wing, especially 4-wing chevron type for harder formations. Each of our bits is machined from a forging to exacting standards and then tipped with tungsten carbide. Mining grade tungsten carbide tips are brazed to the bit wing face for heavy duty bits. The pin threads are CNC manufactured and wings surfaces hardening subsequently.



Specifications of PDC drag drill bit

Size Type Pin Wt. (lbs.)
1 3/4"" ~ 2 1/2"" AW, A-Rod 2
2 5/8"" ~ 2 7/8"" AW, A-Rod 2 1/2
2 3/4"" ~ 3 1/4"" 3THD/4THD N-ROD 2"" IF 4
3 3/8"" ~ 3 3/4""

3THD/4THD N-ROD 2"" IF

4 1/2
3 7/8"" ~4 3/4"" 2 3/8"" API Pin 6
4 7/8"" ~ 5 1/8 2 3/8"" API Pin 7
5 1/4"" ~5 1/2"" 2 3/8"" API Pin 8
4 5/8"" ~ 5"" 2 7/8"" API Pin 10
5 1/8"" ~5 1/2"" 2 7/8"" API Pin 11
5 5/8"" ~ 6 1/4"" 3 1/2"" API Pin 18
6 1/2"" ~ 6 3/4"" 3 1/2"" API Pin 19
7"" ~ 7 1/2"" 3 1/2"" API Pin 21
7 5/8"" ~ 8"" 3 1/2"" API Pin 23



Carbide Insert 3 Blades Water Well Steel Drag Bit 0Carbide Insert 3 Blades Water Well Steel Drag Bit 1
