Place of Origin: | China (Mainland) |
Brand Name: | MIROC |
Certification: | ISO9001 |
Model Number: | COP 1440 COP 1550 COP 1838 T38 |
Minimum Order Quantity: | 1 Pieces |
---|---|
Packaging Details: | Carton Box or Wooden Box |
Delivery Time: | 5-15 Working Days |
Payment Terms: | L/C, T/T |
Supply Ability: | 20000 pieces per month |
Product Name: | Shank Adapter | Processing: | CNC Milling And Proprietary Heat Treatment Process |
---|---|---|---|
Material: | Carbon Steel | Application: | Tunneling,Water Well,blasting,quarrying,concrete Drilling |
Atlas Copco Drifter: | Cop2160, Cop1840, Cop1838, Cop1238 Etc | Furukawa Drifter: | HD715, HD712, HD612, HD609, HD300 Etc |
Thread: | R32, R38, T38, T45, T51 | Diameter: | 32-90MM |
Length: | 380mm-1180mm | Condition: | Brand New |
High Light: | COP 1440 Drill Shank Adapter,COP 1550 Drill Shank Adapter,COP 1838 Drill Shank Adapter |

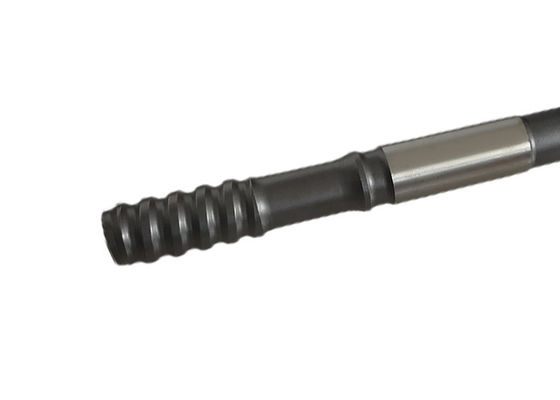

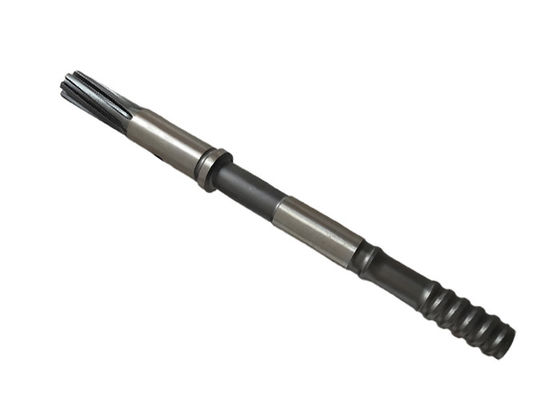

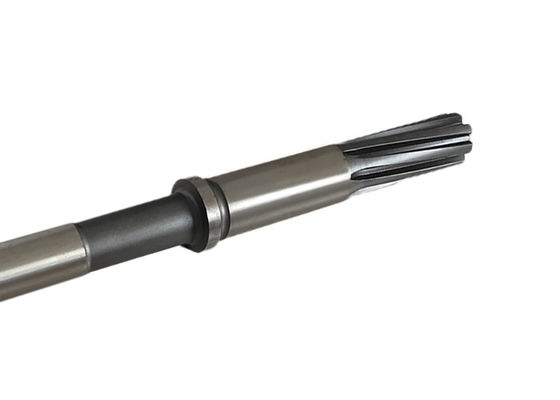

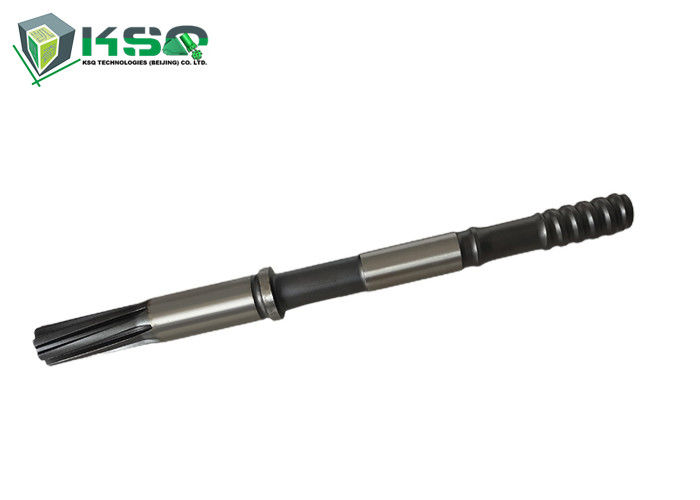

COP 1440 COP 1550 COP 1838 Rock Drill T38 Drill Shank Adapter
The shank adapters from Pro-drill are there fore designed to with stand the high impact power of modern rock drills and made from specially selected material which also is hardened through cauterizing. Around 300 different shank adapters suitable for different rock drills are currently available from Atlas Copco series drifters, Furukawa drifters, Ingersoll-Rand drifters, Montabert drifters, Secoma Hydrastar drifters, Toyo drifters, Tam rock series drifters, Garden Diver series drifters etc.
Male shank adapters are ideal for drifting, tunneling & extension application where high bending stresses are present, Female shank adapters are used when the drilling space is limited and the total feed length is important.
Specification:
Shank Adapter | |
Material | Structural alloy steel |
Application |
Tunnelling , Mining , Quarrying, Blasting and Infrastructure Construction |
Facedrilling and Bolting, Bench Drilling, Production drilling, Long hole drilling, Drifting | |
Rock drill brand | Atlas Copco, , Tamrock, Furukawa, Ingersoll-Rand, Montabert, Boart LongYear, etc. |
Processing | CNC and heat treatment process |
Thread type | R25, R28, R32, R35, R38, T38, T45, T51, GT60, ST58, ST68 |
Diameter | 32mm~90mm |
Length | 370mm~835mm |
Custom Design | Thread, D |
1. Independently researched and developed alloys with high strength and good abrasion resistance;
2. Independently researched and developed world-class production equipment, advanced production technology,ensuring product quality stability
3. Wide range of products, matching different working conditions
