| Place of Origin: | Shangdong,China |
| Brand Name: | MIROC |
| Certification: | ISO9001 |
| Model Number: | Mission60 |
| Minimum Order Quantity: | 5 Pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden Plate |
| Delivery Time: | 10-25days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 20000pcs per month |
| Material: | Tungsten Carbide | Color: | Green, Black And Demaned By Customer |
|---|---|---|---|
| Use: | Underground Mining | Processing Type: | CNC Milling And Proprietary Heat Treatment Process |
| Diameter: | 115- 280mm | Product Name: | Symmetric Casing System Bits |
| Application: | Tunneling,piling,water Well,blasting,quarrying,concrete Drilling | ||
| High Light: | Tungsten Carbide odex system,mining odex system,odex drilling system |
||
Reliable performance Symmetric Casing System With Reamer-IV For Complex formation Drilling
Product Description
ODEX is an excellent option when unconsolidated formations are too dense or cobbly for Auger Drilling. ODEX is a down-hole air hammer system that is designed to advance casing during drilling. Once a desired depth is reached they eccentric bit can be retrieved leaving the casing in place for sampling or installations.
When the bore-hole is complete, the casing is retrieved to be used again.
Structure and parameters ( Pilot bit, Reamer, Guide Device and Locking Kit )
Technical parameter table of standard Eccentric casing system
| Product code | OD(A) casing | ID(B) casing | Wall thickness | Reamed Dia (C) | ID(D) casing Shoe | Max dia. of Pilot bit | Hammer | Drill pipe |
| 108-HD35-84 | 108 | 96 | 6 | 118 | 86 | 84 | DHD3.5 QL30 | 76 |
| 114-HD35-90 | 114 | 102 | 6 | 123 | 92 | 90 | DHD3.5 QL30 | 76 |
| 127-HD45-115 | 127 | 109 | 9 | 138 | 99 | 97 | DHD340A QL40 | 76 |
| 140-HD55-115 | 140 | 128 | 6 | 152 | 117 | 115 | DHD340A QL40 | 76 |
| 168-HD55-140 | 168 | 156 | 6 | 185 | 142 | 140 | DHD350R QL50 | 76/89 |
| 178-HD55-146 | 178 | 156 | 10 | 195 | 148 | 146 | DHD350R QL50 | 76/89 |
| 183-HD55-150 | 183 | 163 | 10 | 200 | 152 | 150 | DHD350R QL50 | 76/89 |
| 194-HD65-165 | 194 | 180 | 7 | 209 | 167 | 165 | DHD360 QL60 | 89/114 |
| 219-HD65-190 | 219 | 205 | 7 | 237 | 192 | 190 | DHD360 QL60 | 89/114 |
| 245-HD85-208 | 245 | 225 | 10 | 264 | 210 | 208 | DHD380 QL80 | 114 |
| 273-HD85-240 | 273 | 259 | 7 | 308 | 242 | 240 | DHD380 QL80 | 114 |
| 323-HN110-280 | 323 | 303 | 10 | 358 | 282 | 275 | NUMA100 SD10 | 114 |
Working principle
| 1.When start drilling, the reamer swings out and reams the hole wide ensure the casing tube to slide down along with the drilling strings. | 3.To pull up casing tubes and grouting with some material to fill into the bottom of hole. |
|
|
| 2.When the required depth is reached, reamer rotated in reversed direction, so that the reamer swings in, and then the drilling strings to be pulled up through the casing. | 4 To continue the drilling with conventional drilling tools the bedrock. |
|
|

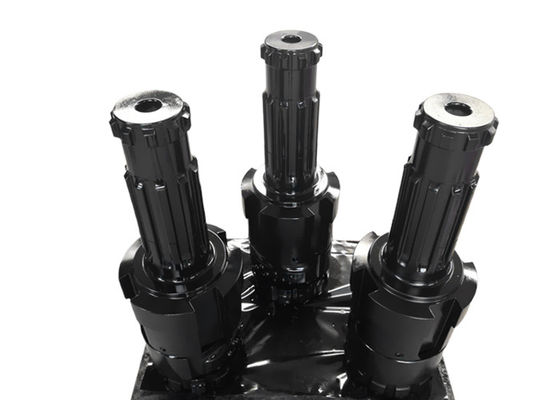

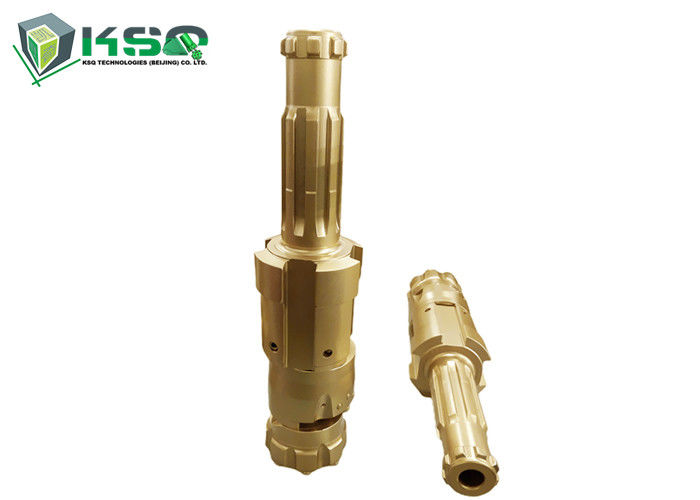

Pictures:

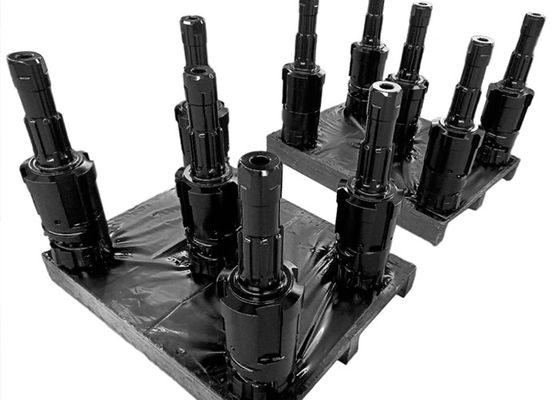

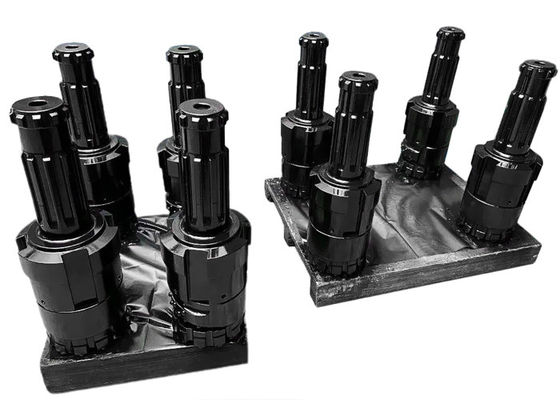

Package
