| Place of Origin: | CHINA |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | Cop 1838 |
| Packaging Details: | Plywood Case |
|---|---|
| Delivery Time: | 20-25 days |
| Supply Ability: | 20000 pieces per month |
| Drill Rig Series: | Atlas, Furukawa, Ingersoll- Rand Etc. | Other Names: | T38 Shank Adapter |
|---|---|---|---|
| Material: | Alloy Steel Bar | Processing Type: | Forging |
| Technology: | Heat Treatment | Application: | Hard Rock Drilling, Mining, Quarrying, Stoning, Construction |
| Usage: | Bench Drilling | Color: | Silver |
| High Light: | t38 drill shank adapter,435mm drill shank adapter,Top Hammer drill shank adapter |
||

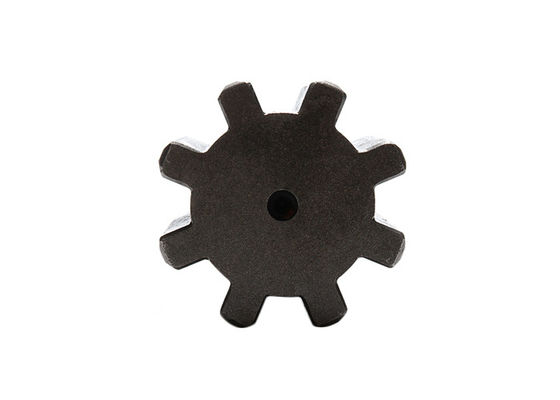

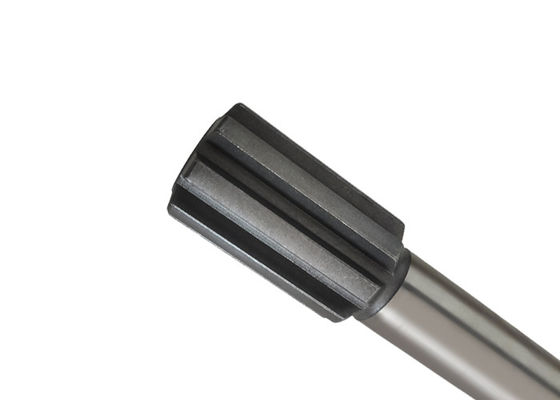

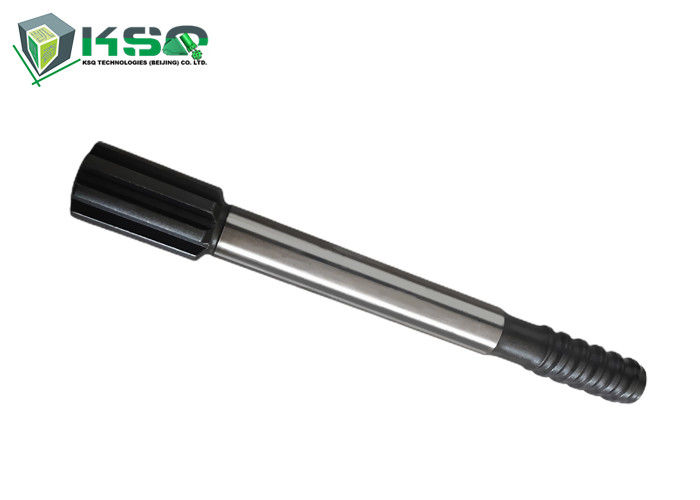

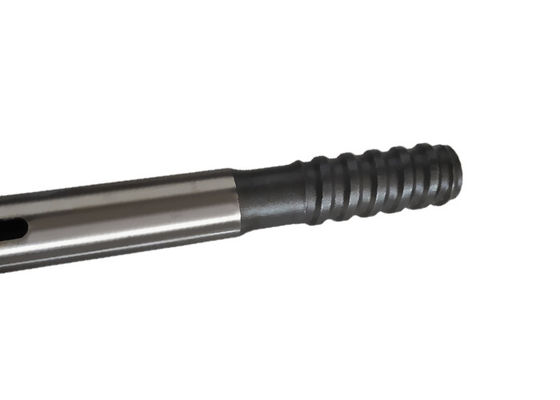

Cop 1838 T38 435mm Top Hammer Drilling Striking Bar Shank Adapter
Supply many various type shank adaptors which are suitable for all popular drifters and top hammers in the world, such as Atlas Copco series drifters, Tamrock series drifters, Garden Dever series drifters etc. The main thread types of shank adaptors include R32, R38, T38, T45, T51 etc.
Male shank adapters are ideal for drifting, tunneling & extension applications where high bending stresses are present, and female shank adapters are used when the drilling space is limited and the total feed length is important.
Adavantage :
1. Top quality of alloy steels .
2. CNC machining and advanced heat threatment .
3. Shank adapters can use for high stresses places and limited drilling space .
Specification of shank adapter
| Part Number | Product Code and Brief Description | Thread | Length (mm) | Weight (kg) |
| 4148301077 | COP 1432, COP 1532, COP 1440, COP 1838 HD, COP 1838 ME [G1] | R32 | 435 | 3.9 |
| 4148301078 | COP 1432, COP 1532, COP 1440, COP 1838 HD, COP 1838 ME [G2] | R38 | 435 | 4.2 |
| 4148301079 | COP 1432, COP 1532, COP 1440, COP 1838 HD, COP 1838 ME [G3] | T38 | 435 | 4.2 |
| 4148301080 | COP 1432, COP 1532, COP 1440, COP 1838 HD, COP 1838 ME [G4] | R32 | 525 | 4.8 |
| 4148301081 | COP 1432, COP 1532, COP 1440, COP 1838 HD, COP 1838 ME [G5] | T38 | 525 | 5 |
