Place of Origin: | China (Mainland) |
Brand Name: | MIROC by KSQ |
Model Number: | T45 102MM |
Minimum Order Quantity: | 1 Pieces |
---|---|
Price: | Negotiable |
Packaging Details: | Carton Box or Wooden Box |
Delivery Time: | 5-15 Working Days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 20000 pieces per month |
Certification: | ISO9001 | Product Name: | Thread Button Bits |
---|---|---|---|
Application: | Tunneling,Water Well,Blasting,Quarrying,Concrete Drilling | Processing Type: | CNC Milling And Proprietary Heat Treatment Process |
Material: | Tungsten Carbide 45CrNiMoV YK05 | Machine Type: | Retrac Button Drill Bit For Hydraulic Trolley |
Thread: | T45 | Diameter: | 76,89,102,115mm |
High Light: | 102mm retrac bit,t45 retrac bit,retrac button drill bit |

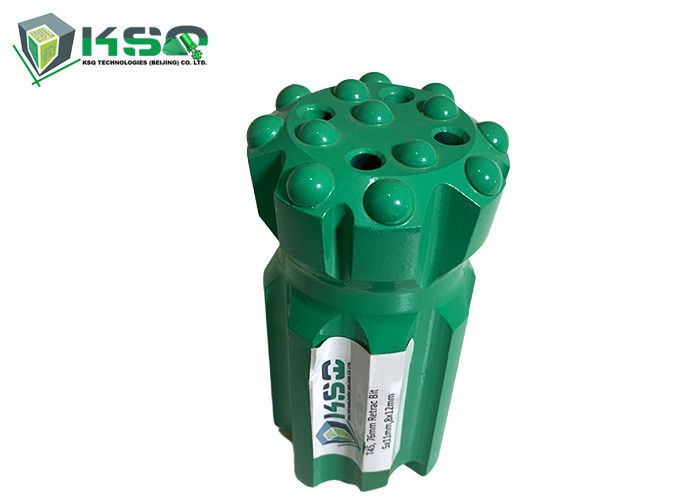

102mm T45 Concave Face High Speed Drilling Thread Retrac Button Bit
Product Description
KSQ With the top quality of alloy steels and the best carbides made in China, we produce all threaded button bits by hot press technology.
A comprehensive range of various button bits shown as below:
Thread sizes: R25, R28, R32, R35, R38, T38, T45, T51, ST58, ST60, GT60;
Head diameters: 33mm ~ 152mm;
Face designs; flat face, drop center, uni-face;
Skirt designs: normal, retract, straigh retract
Specification:
Item |
Specification |
Choice |
Product Name |
Retrac button drill bit |
Thread button bit |
Material |
Carbon steel |
As your request |
Diameter |
102mm |
As your request |
Length |
160mm etc |
A little error |
Socket diameter |
45mm |
As your request |
Weight |
5.5kg |
A little error |
Uses |
Ore mining |
Well drill,rock drill |
Color |
Blue,yellow |
As your request |
Service |
OEM |
ODM |
T45 button bit |
||||||
1 |
70 |
3×11, 1×19 |
6×11 |
3 |
- |
2.2 |
2 |
76 |
3×11, 1×11 |
6×13 |
3 |
- |
2.4 |
3 |
89 |
3×11, 2×11 |
6×13 |
3 |
1 |
4.1 |
4 |
102 |
3×13, 2×13 |
6×14 |
3 |
1 |
4.5 |
More questions about us before you place the order:
Q:Can I get some samples?
A:Yes,sample orders are welcomed.
Q:Have thread button bit assembled well in stock?
A:No,all thread button bit will be newly produced according to your orders including samples,but we have some stock for your urgency.
Q:Could I use my own logo or design on goods?
A:Yes,customized logo and design on mass production are available.
Q:Can I choose the colors?
A:Yes,customized color is available.
Q:What is the delivery time?
A:A week for sample,15-30days for mass production.
Q:What is the payment term?
A:T/T,L/C at sight,Western Union,Paypal etc.
Q:Can I trust you?
A:Absolutely sure.We are famous company in china and "alibaba" verfied supplier.
Q:May I visit your factory?
A:Sure,welcome any time.We can also pick you up at airport and station.
