| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | PD200 Shank Adapter |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standrad export packaging or customised |
| Delivery Time: | 15-20 days |
| Supply Ability: | 20000pcs per month |
| Material: | Alloy Steel | Thread: | T38, T45 |
|---|---|---|---|
| Process Type: | Forging | Product Name: | Shank Adapter |
| Length: | 485mm | Color: | Black Or Customized |
| High Light: | pd200 drill shank adapter,drill shank adapter pd200,drill shank adapter for furukawa |
||

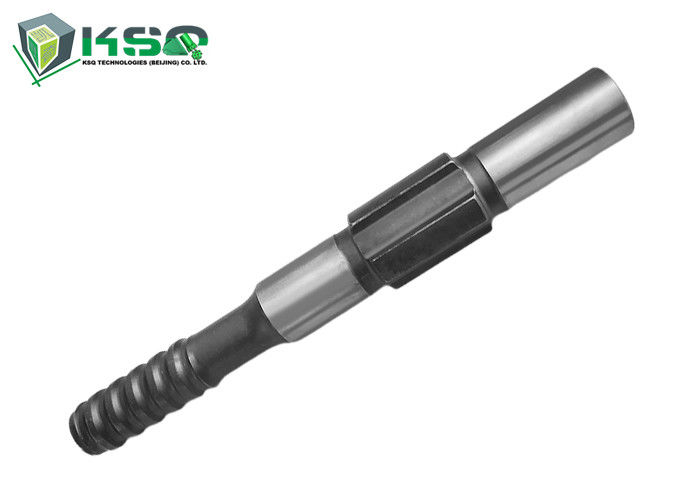

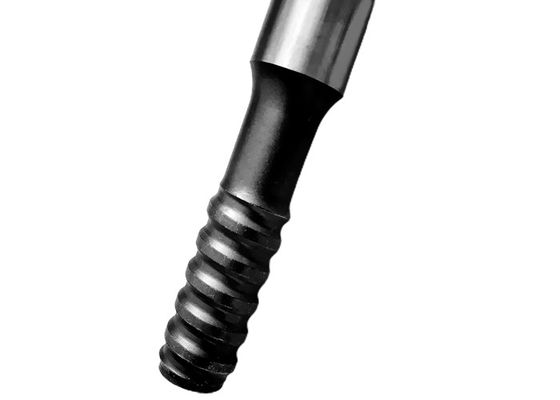

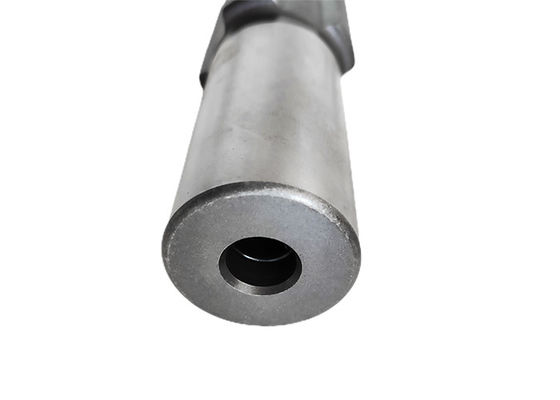

PD200, VL120, PR123 Shank adapters used for Furukawa, Ingersoll-Rand, Gardner Denver dirfters
The task of shank adapters is to transmit rotation torque, feed force, impact energy and flushinng medium to the drill ring.
KSQ can upply a full range of shank adapters interfacing with the world top brands of hydraulic and pneumatic dirfters and tophammers.
Shank adapter equivalent to:
Features:
1. High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
2. Accurate dimension of thread perfectly matches the rock drill
3. Work reliable and very cost-effective
Applications:
• Bolting, drifting
• Bench drilling
• Production drilling
Specifications
| Item | Thread | Length | Diameter | Weight | Flushing Tube | Part Number |
| mm | mm | kg | mm | |||
| Furukawa HD90 Drifting |
R38 (1 1/2") | 515 | 40 | 4.3 | - | 414832528 |
| Furukawa HD190 Drifting |
R38 (1 1/2") | 500 | 40 | 4.5 | - | 414832529 |
| T38 (1 1/2") | 500 | 40 | 4.5 | - | 414832530 | |
| Furukawa HD300 Drifting |
T38 (1 1/2") | 654 | 45 | 6 | 16 | 414832531 |
| T45 (1 3/4") | 654 | 45 | 6.7 | 16 | 414832532 | |
| Furukawa HD609 Bench Drilling |
T38 (1 1/2") | 690 | 45 | 6.3 | - | 414832533 |
| T45 (1 3/4") | 690 | 45 | 6.4 | - | 414832534 | |
| Furukawa HD612RP Bench Drilling |
T45 (1 3/4") | 884 | 51 | 11.2 | - | 414832535 |
| Furukawa PD200 Drifting |
T38 (1 1/2") | 485 | 44 | 5 | 14.3 | 414832536 |
| T45 (1 3/4") | 485 | 44 | 5.4 | 14.3 | 414832537 |
