| Place of Origin: | CHINA |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | GT60 |
| Packaging Details: | Carton Box or Wooden Box |
|---|---|
| Delivery Time: | 5-15 Working Days |
| Supply Ability: | 10000000 Pieces per Year |
| Type: | Thread Button Bit | Material: | Tungsten Carbide |
|---|---|---|---|
| Use: | Coal Mining, Mining,Tunneling,Quarrying,Construction | Color: | Green,blue,golden Etc |
| Thread Type: | GT60 | Button Bit Shape: | Spherical, Ballistic,Conical |
| Face Shape: | Flat Shape And Drop-center Shape | Process: | CNC Milling And Proprietary Heat Treatment |
| High Light: | OEM rock drilling bits,102mm dia rock drilling bits,dia 102mm rock drilling bits |
||

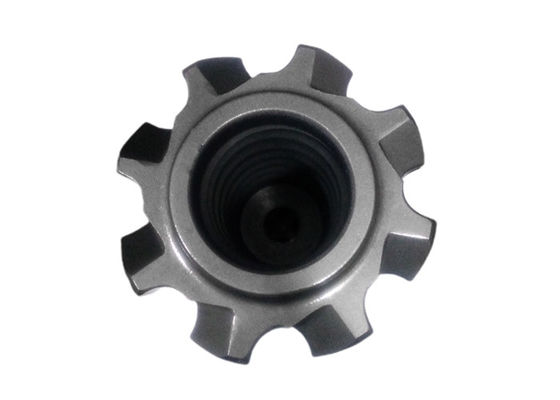

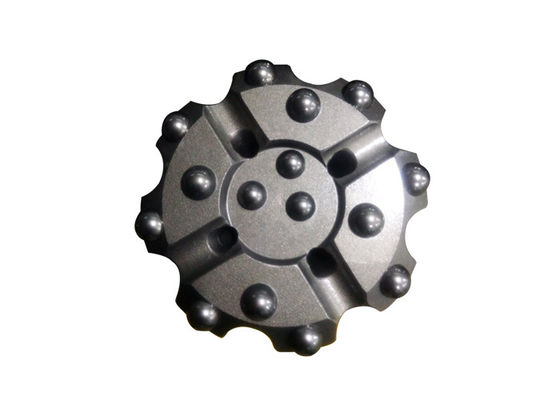

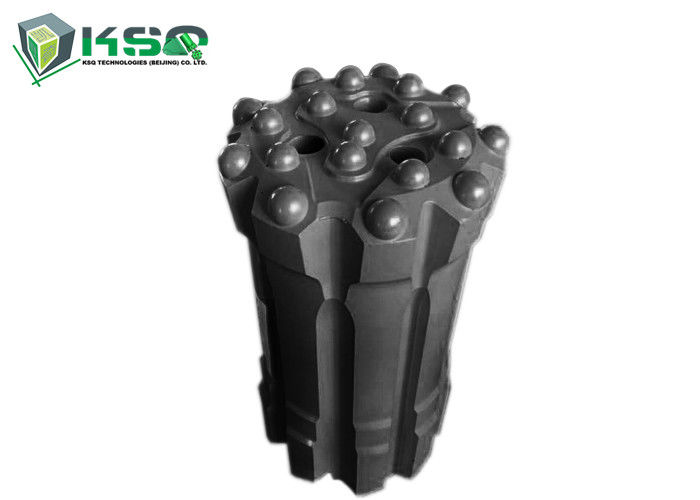

GT60 Dia 102mm Retrac Thread Button Rock Drilling Bits
Product General Introduction:
1. Application: The Thread button bits / Jack hammer bits are widely used in metallurgy mine, geological exploration, water conservancy construction, electricity, traffic, tunnel, quarry, national defence stone project etc.
2. Material: Thread Button bits are made by high quality alloy steel bar and tungsten carbides.
Through heat treatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss of energy while drilling the rocks.
3. OEM: In addition, we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.
Product specifications: GT60 Button Bit
|
GT60 Drill bits |
Dia. |
Tip size (mm) |
Flushing hole No. |
Weight |
||||
|
mm |
inch |
Front |
Gauge |
Angle |
Side |
Front |
||
|
Normal thread |
||||||||
|
|
92 |
3 5/8" |
13x4,13x1 |
13x8 |
35° |
4 |
- |
5.3 |
|
96 |
3 3/4" |
13x4,13x1 |
14x8 |
35° |
4 |
- |
5.6 |
|
|
102 |
4" |
11x9 |
13x9 |
35° |
3 |
- |
6 |
|
|
115 |
4 1/2" |
12x10 |
14x9 |
35° |
3 |
- |
6.8 |
|
|
127 |
5" |
13x10 |
14x9 |
35° |
3 |
- |
7.5 |
|
|
140 |
5 1/2" |
14x10 |
16x9 |
35° |
3 |
- |
9 |
|
|
152 |
6" |
14x12 |
16x9 |
35° |
3 |
- |
10.6 |
|
|
Retrac thread |
||||||||
|
|
92 |
3 5/8" |
12x9 |
12x9 |
40° |
2 |
- |
5.4 |
|
96 |
3 3/4" |
12x9 |
12x9 |
40° |
2 |
- |
6.3 |
|
|
102 |
4" |
12x10 |
13x9 |
40° |
2 |
- |
7.3 |
|
|
115 |
4 1/2" |
12x10 |
14x9 |
35° |
3 |
- |
9.8 |
|
|
118 |
4 5/8" |
13x6 |
16x9 |
35° |
3 |
|
10 |
|
|
127 |
5" |
13x10 |
14x9 |
35° |
3 |
- |
12 |
|
|
140 |
5 1/2" |
14x10 |
16x9 |
35° |
3 |
- |
14.0 |
|
|
152 |
6" |
14x12 |
16x9 |
35° |
3 |
- |
16 |
|
