| Place of Origin: | CHINA |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | T45 102mm |
| Minimum Order Quantity: | 5 Pieces |
|---|---|
| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 5-15 Working Days |
| Supply Ability: | 100000 Pieces per Year |
| Product Name: | Thread Button Bit | Processing Type: | Forging |
|---|---|---|---|
| Diameter: | 102mm | Thread: | T51 |
| Body Type: | Normal And Retrac | Color: | Green Black, Customized |
| High Light: | T45 Button Drill Bits,102MM Button Drill Bits,T45 102mm Button Bits Rock Drilling |
||

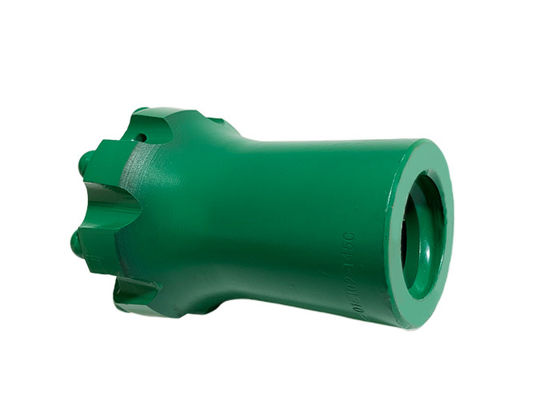

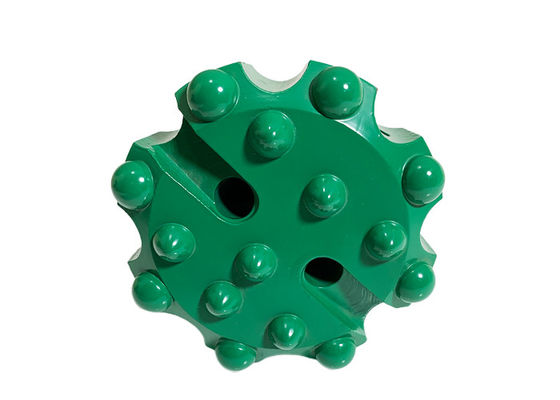

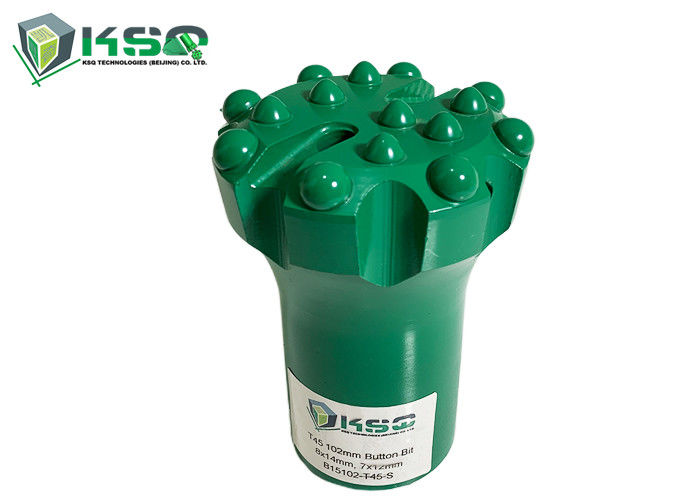

T45 102mm Spherical Shape Threaded Button Drill Bits
We are one of the professional manufacturers & suppliers of rock drilling tools, tungsten carbide button bits, DTH bits, DTH hammers, rock tools, coal mining tools, mining rock tools, quarrying tools, machine tools, DTH hammers & bits, retrac button bits, thread button bits, tapered button bits, chisel bits, cross bits, thread cross bits, tapered cross bits, shank adapter, shank adaptors, thread bits, taper bits, drill rod, drill bits, rock bits, mining bits, integral drill steel, tapered drill rods, thread drill rods, M-F (male-female) rods, extension rods, integral drill rods, pneumatic drill rods, self-drilling anchor, drifter rods, hollow drill steels, shoulder drive drilling, drifting and tunneling, bench and production drilling, furnace tapping tools, down the hole drilling, coal cutter pick-shaped bits.
Products Parameters:
| Product Name: | Button Drill Bit | |||
| Diameter: | 102mm | |||
| Button Size: | Front 7*12mm Ballistic and Gauge 8*14mm Spherical | |||
| Thread: | T45 | |||
| Flushing Hole: | 2 Front and 2 Side | |||
| Application: | Button drill bits are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling | |||
| Weight: | 2.6 kg | |||
| Button Type: | Ballistic and Spherical | |||
| Body Type: | Normal( Round) | |||
| Face Type: | Flat Face -Two Guage | |||
| Material: | Alloy steel bar 45CrNiMoV and tungsten carbide tips YK05 | |||
| MOQ: | No requirement for testing and trial order | |||
| We can design and manufature according to your requirment of diameter, number air holes and carbide button shape | ||||
Product Advantage:
1. The button bits can transmit intensive impact energy into the rock with the least loss of energy.
2. Select high-strength structure alloy steel and carbides with best quality to ensure the drill body and alloy body can achieve uniform wear, thus the service life of bits will be increased.
3. Long service life
Specification of other Thread Button Bits:
| Thread Button Bit | Diameter | Carbide size(mm) | Flushing hole | Weight | |||
| mm | in | Front | Gauge | Front | Side | (kg) | |
| Qty×size | Qty×size | ||||||
| R25 (1") | 33 | 1 2/7 | 2×7 | 5×7 | 1 | 1 | 0.36 |
| 35 | 1 3/8 | 2×7 | 5×8 | 1 | 1 | 0.44 | |
| 38 | 1 1/2 | 2×7 | 5×9 | 1 | 1 | 0.56 | |
| 41 | 1 5/8 | 2×8 | 5×9 | 1 | 2 | 0.61 | |
| 45 | 1 3/4 | 2×8 | 5×10 | 1 | 2 | 0.78 | |
| 48 | 1 7/8 | 2×9 | 5×11 | 1 | 2 | 0.8 | |
| 51 | 2 | 2×10 | 5×11 | 1 | 2 | 1.18 | |
| 57 | 2 1/4 | 2×10 | 5×12 | 1 | 2 | 1.26 | |
| R28 (1 1/8") | 35 | 1 3/8 | 2×7 | 5×8 | 1 | 1 | 0.44 |
| 38 | 1 1/2 | 2×7 | 5×9 | 1 | 1 | 0.56 | |
| 41 | 1 5/8 | 2×8 | 5×9 | 1 | 2 | 0.61 | |
| 45 | 1 3/4 | 2×8 | 5×10 | 1 | 2 | 0.78 | |
| 48 | 1 7/8 | 2×9 | 5×11 | 1 | 2 | 0.8 | |
| 51 | 2 | 2×10 | 5×11 | 1 | 2 | 1.18 | |
| 57 | 2 1/4 | 2×10 | 5×12 | 1 | 2 | 1.26 | |
| R32 (1 1/4") | 41 | 2 5/8 | 2×8 | 5×9 | 1 | 2 | 0.65 |
| 43 | 1 2/3 | 2×8 | 5×10 | 1 | 2 | 0.72 | |
| 45 | 1 3/4 | 2×9 | 5×10 | 1 | 2 | 0.82 | |
| 48 | 1 7/8 | 2×10 | 5×10 | 1 | 2 | 0.92 | |
| 51 | 2 | 2×10 | 5×11 | 1 | 2 | 1.24 | |
| 57 | 2 1/2 | 2×10 | 5×12 | 1 | 2 | 1.35 | |
| R/T38 (1 1/2") | 64 | 2 1/2 | 3×11 | 6×12 | 2 | 1 | 1.62 |
| 70 | 2 3/4 | 4×10 | 8×10 | 2 | 1 | 1.98 | |
| 76 | 3 | 4×11 | 8×12 | 2 | 1 | 2.28 | |
| 89 | 3 1/2 | 6×11 | 8×12 | 2 | 2 | 3.32 | |
| T45 (1 3/4") | 70 | 2 3/4 | 4×10 | 8×10 | 2 | 1 | 2.24 |
| 76 | 3 | 4×11 | 8×12 | 2 | 1 | 2.46 | |
| 89 | 3 1/2 | 6×12 | 8×14 | 2 | 2 | 3.52 | |
| 102 | 4 | 7×12 | 8×14 | 2 | 2 | 4.46 | |
| 115 | 4 1/2 | 8×12 | 8×14 | 2 | 2 | 6.68 | |
| T51 (2") | 76 | 3 | 4×12 | 8×12 | 2 | 1 | 3.62 |
| 89 | 3 1/2 | 6×12 | 8×14 | 2 | 2 | 4.48 | |
| 102 | 4 | 7×12 | 8×14 | 4 | 1 | 5.26 | |
| 115 | 4 1/2 | 8×12 | 8×14 | 4 | 1 | 7.62 | |
| 127 | 5 | 9×12 | 8×16 | 4 | 1 | 8.58 | |
| ST58 (2 1/4") | 89 | 3 1/2 | 6×12 | 8×14 | 2 | 2 | 5.46 |
| 102 | 4 | 6×12 | 8×14 | 2 | 2 | 6.18 | |
| GT60 (2 3/8") | 102 | 4 | 6×13 | 8×14 | 4 | - | 7.4 |
| 115 | 4 1/2 | 7×14 | 9×16 | 3 | - | 9 | |
| ST68 (2 3/4") | 102 | 4 | 6×14 | 8×16 | 2 | 2 | 8.6 |
| 115 | 4 1/2 | 6×14 | 9×16 | 3 | - | 11.2 | |
