| Certification: | ISO |
| Model Number: | T51 89mm Thread Button Bit |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Nogotiation |
| Packaging Details: | customised |
| Delivery Time: | 15-20 days |
| Supply Ability: | 20000pcs per month |
| Place Of Origin: | China | Brand Name: | MIROC |
|---|---|---|---|
| Type: | Drill Bit | Processing Type: | Forging |
| Diameter: | 89mm To 115mm | Material: | Tungsten Carbide And Steel |
| Button Type: | Spherical, Ballistic, Conical | Corlor: | Customised |
| Button Numbers: | 10 To 14 Buttons | Face Type: | Flat, Drop Center |
| Flushing Hole: | 2 To 5 Holes | Product Name: | T51 Threaded Button Bit |
| High Light: | 89mm T51 Button Bit,Diameter 89mm Tungsten Carbide Button Bit,T51 Threaded Tungsten Carbide Button Bit |
||

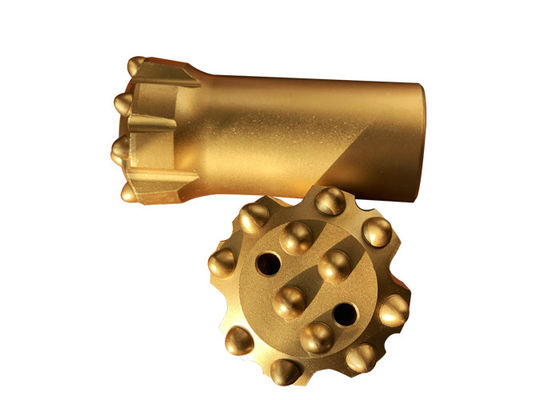

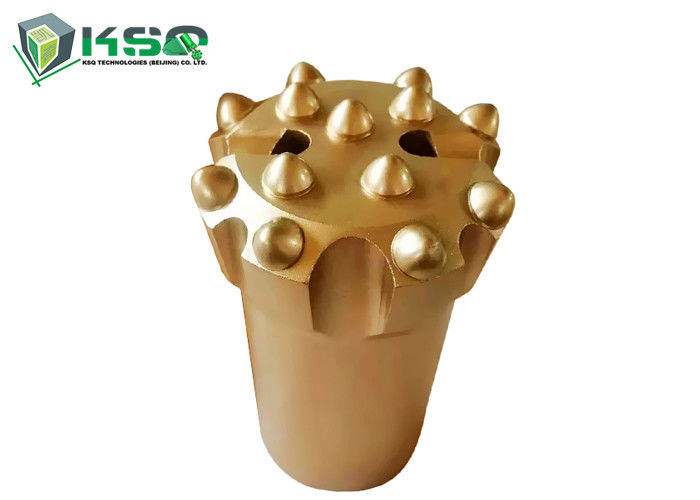

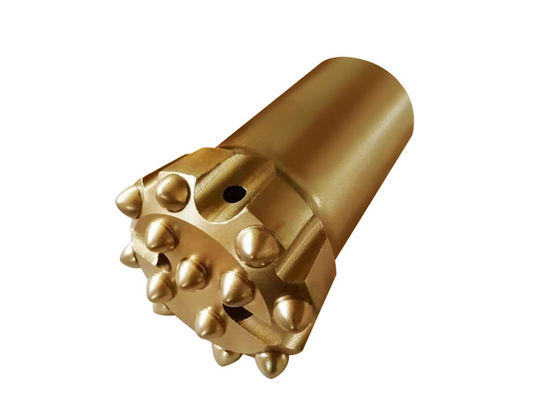

Diameter 89mm T51 Threaded Tungsten Carbide Button Drill
KSQ With the top quality of alloy steels and the best carbides made in China, we produce all threaded button bits by hot press technology.
A comprehensive range of various button bits shown as below:
Thread sizes: R25, R28, R32, R35, R38, T38, T45, T51, ST58, ST60, GT60;
Head diameters: 33mm ~ 152mm;
Face designs; flat face, drop center, uni-face;
Skirt designs: normal, retract, straigh retract
Specification:
| T51 Button Bit | Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | Part Number | |||
| mm | inch | Front | Gauge | Front | Side | kg | ||
| Button Bit, Drop Center Spherical Buttons, B11XX |
89 | 3 1/2 | 3x11, 2x11 | 6x13 | 4 | 0 | 4.9 | 4148300885 |
| 102 | 4 | 3x13, 2x13 | 6x14 | 3 | 1 | 5.2 | 4148300890 | |
| Button Bit Spherical Buttons, B12XX |
89 | 3 1/2 | 4x13 | 8x13 | 2 | 0 | 4.9 | 4148300883 |
| 102 | 4 | 4x14 | 8x14 | 2 | 0 | 5.8 | 4148300888 | |
| Button Bit Spherical Buttons, B13XX |
89 | 3 1/2 | 5x13 | 8x13 | 2 | 1 | 4.9 | 4148300884 |
| Button Bit,Drop Center Spherical Buttons, B13XX |
89 | 3 1/2 | 4x11,1x11 | 8x13 | 4 | 0 | 4.9 | 4148300886 |
| 89 | 3 1/2 | 4x13,1x13 | 8x13 | 4 | 0 | 4.9 | 4148300887 | |
| 102 | 4 | 4x13,1x13 | 8x14 | 4 | 0 | 5.8 | 4148300891 | |
| Button Bit Spherical Buttons, B14XX |
102 | 4 | 6x13 | 8x16 | 2 | 1 | 5.8 | 4148300889 |
| 115 | 4 1/2 | 6x14 | 8x14 | 2 | 0 | 6.8 | 4148300893 | |
| 115 | 4 1/2 | 6x14 | 8x16 | 2 | 0 | 6.8 | 4148300894 | |
