5" / 6" T45 127mm Tungsten Drill Bits Milling Drill Bits For Making Large Cut Holes

5" / 6" T45 127mm Tungsten Drill Bits Milling Drill Bits For Making Large Cut Holes

5" / 6" T45 127mm Tungsten Drill Bits Milling Drill Bits For Making Large Cut Holes

Product Details:

Place of Origin: China
Brand Name: MIROC
Model Number: 4148300865-4148300866

Payment & Shipping Terms:

Minimum Order Quantity: 50
Price: negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 25 days
Payment Terms: T/T or L/C
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description

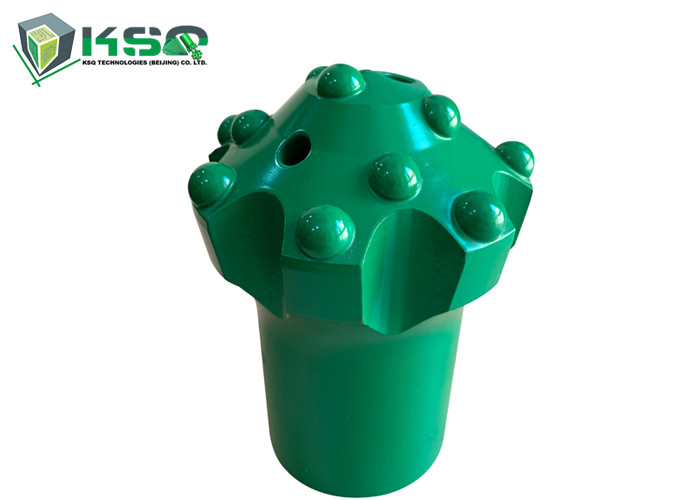

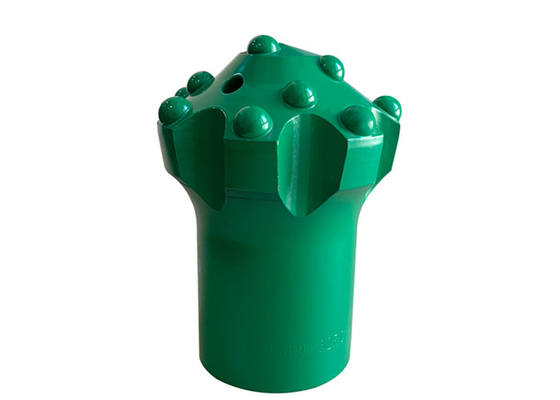

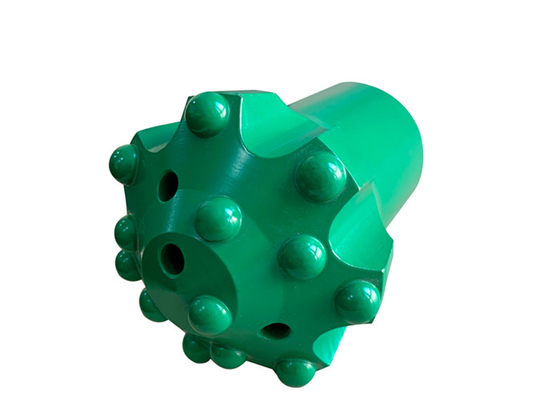

5" / 6" T45 127mm Tungsten Drill Bits Milling Drill Bits For Making Large Cut Holes







Description


This type of bit is used for making large cut holes in drifting and tunneling. A smaller hole is first drilled and then reamed to the final size in combination with a pilot adapter.


• Widely used in drifting and tunneling
• T45 thread system


Color: Green,Blue or Based on Customer requirements


Material: Tungsten carbide and high strength alloy steel


Processing: CNC milling and proprietary heat treatment process


Type: T45 Dome Bit For Reaming Ballistic Buttons



Applications


• Underground mining
• Tunneling



Competitive Advantage



• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



specification




Part Number Bit Diameter (mm) Bit Diameter (inch)

Front Buttons

(No. x mm)

Gauge Buttons

(No. x mm)

4148300865 127 5     1x13 18x13
4148300866 152 6     2x14 18x14



Product Code and Brief Description Angle

Front Flushing

Holes

Side Flushing

Holes

Weight

(kg)

RE19127-T45-B, T45 Dome Bit For Reaming, Ballistic Buttons 35° 3 1 6.0
RE20152-T45-B, T45 Dome Bit For Reaming, Ballistic Buttons 35° 3 1 10.6
