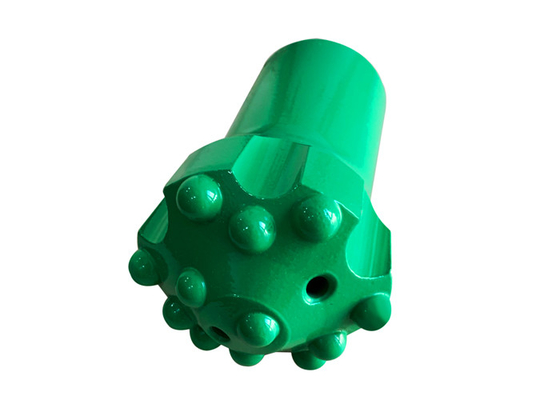

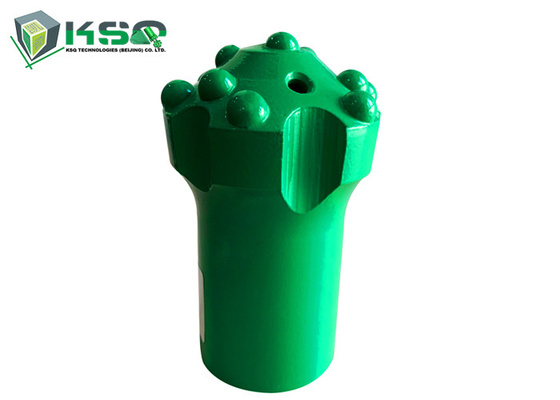

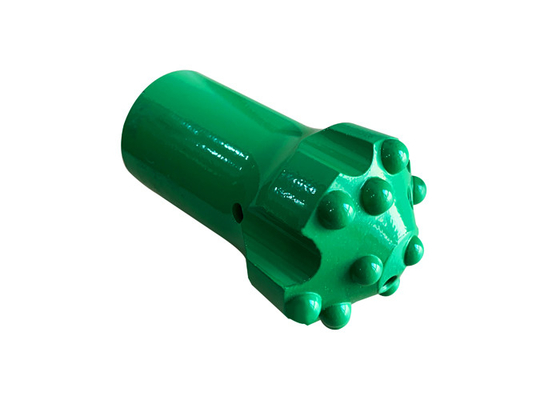

T51 Dome Rock Tungsten Carbide Drill Bit Mining Drill Bits 152mm

T51 Dome Rock Tungsten Carbide Drill Bit Mining Drill Bits 152mm

    • T51 Dome Rock Tungsten Carbide Drill Bit Mining Drill Bits 152mm
    • T51 Dome Rock Tungsten Carbide Drill Bit Mining Drill Bits 152mm
    • T51 Dome Rock Tungsten Carbide Drill Bit Mining Drill Bits 152mm
    • T51 Dome Rock Tungsten Carbide Drill Bit Mining Drill Bits 152mm
  • T51 Dome Rock Tungsten Carbide Drill Bit Mining Drill Bits 152mm

    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Model Number: 4148300946

    Payment & Shipping Terms:

    Minimum Order Quantity: 50
    Price: negotiation
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 25 days
    Payment Terms: T/T or L/C
    Supply Ability: 20000 pieces per month
    Contact Now
    Detailed Product Description
    High Light:

    reamer drill bit

    ,

    cnc drill bits



    T51 Dome Rock Tungsten Carbide Drill Bit Mining Drill Bits 152mm



    Description


    This type of bit is used for making large cut holes in drifting and tunneling. A smaller hole is first drilled and then reamed to the final size in combination with a pilot adapter.


    • Widely used in drifting and tunneling
    • T51 thread system


    Color: Green,Blue or Based on Customer requirements


    Material: Tungsten carbide and high strength alloy steel


    Processing: CNC milling and proprietary heat treatment process


    Type: T51 Dome Bit For Reaming Ballistic Buttons



    Applications


    • Underground mining
    • Tunneling



    Competitive Advantage



    • High grade tungsten carbide inserts
    • Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



    specification




    Part Number Bit Diameter (mm) Bit Diameter (inch)

    Front Buttons

    (No. x mm)

    Gauge Buttons

    (No. x mm)

    4148300946 152 6     2x14 14x14



    Product Code and Brief Description Angle

    Front Flushing

    Holes

    Side Flushing

    Holes

    Weight

    (kg)

    RE16152-T51-B, T51 Dome Bit For Reaming, Ballistic Buttons 35° 3 1 10.6
