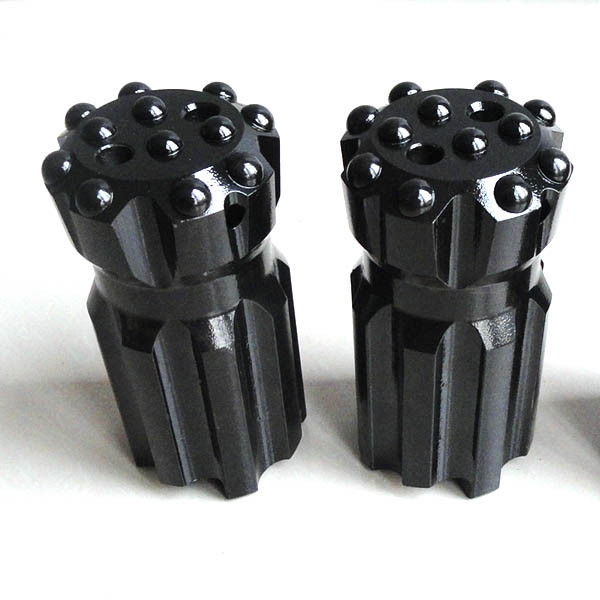

3 Inch R38 Retractable Drill Bit Wear Resistance Threaded Drill Bit

3 Inch R38 Retractable Drill Bit Wear Resistance Threaded Drill Bit

3 Inch R38 Retractable Drill Bit Wear Resistance Threaded Drill Bit

Product Details:

Place of Origin: China
Brand Name: MIROC
Model Number: 4148300671-4148300676

Payment & Shipping Terms:

Minimum Order Quantity: 50
Price: negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 25 days
Payment Terms: T/T or L/C
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description

Description


This type of bit is well known for its wear resistance on soft to medium-hard rock formations (between 55 Mpa to 165 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture. Recommended for eliminating hole deviation.

• Widely used drifting and tunneling
• Bit face design is ideal for soft to medium rock formations
• With Retrac Wings to help guide the bit in and out of the hole
• Effective in straight hole drilling


Color: Green,Blue or Based on Customer requirements


Material: Tungsten carbide and high strength alloy steel


Processing: CNC milling and proprietary heat treatment process


Type: R38 Retrac Button Bit Ballistic Buttons



Applications


• Underground mining
• Tunneling



Competitive Advantage



• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



specification

1

<

Part Number Bit Diameter (mm) Bit Diameter (inch)

Front Buttons

(No. x mm)

Gauge Buttons

(No. x mm)

4148300671 64 2 1/2 3x10, 1x10 6x11
4148300672 70 2 3/4 4x10, 1x10 8x11
4148300673 76 3     4x11, 1x11 8x11
4148300674 76 3     4x11, 1x11 8x12
4148300675 89 3 1/2 4x13, 1x13 8x13
4148300676 89 3 1/2 5x12 8x12

2

<

Product Code and Brief Description Angle

Front Flushing

Holes

Side Flushing

Holes

Weight

(kg)

R1064-R38-B, R38 Retrac Button Bit, Ballistic Buttons 35° 3 - 2.2
R1370-R38-B, R38 Retrac Button Bit, Ballistic Buttons 35° 4 - 2.4
R1376-R38-B-1, R38 Retrac Button Bit, Ballistic Buttons 40° 4 - 3.3
R1376-R38-B-2, R38 Retrac Button Bit, Ballistic Buttons 35° 4 - 3.3
R1389-R38-B-1, R38 Retrac Button Bit, Ballistic Buttons 35° 4 - 4.8
R1389-R38-B-2, R38 Retrac Button Bit, Ballistic Buttons 35° 2 - 4.8
