| Place of Origin: | China |
| Brand Name: | MIROC |
| Model Number: | 4148300404-4148300409 |
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden Plate |
| Delivery Time: | 25 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 20000 pieces per month |
| High Light: | Threaded Drill Rod,Drill Rod Threaded,drill extension rod |
||
|---|---|---|---|
Description
Drill rod using R25 thread system. With R32 on one shank end. Suited for short hole drilling operations.
• R25 thread system
• Suitable for small hole range
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process

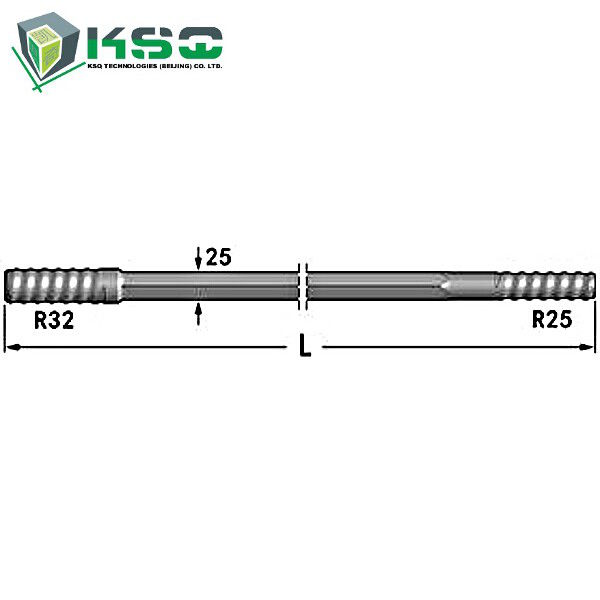

Type: R25 Drifter Rod R32-Hex 25-R25 Flushing Hole 8.6 mm
Applications
• Underground Mining
• Tunneling
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
specification
<
| Part Number | Product Code and Brief Description |
Length (mm) |
Length (ft/inch) |
Diameter (mm) |
Diameter (inch) |
Weight (kg) |
| 4148300404 |
DRH25-R25/R32-2100, R25 Drifter Rod, R32-Hex 25-R25, Flushing Hole 8.6 mm |
2100 | 6 8/9 | 25 | 1 | 8.6 |
| 4148300405 |
DRH25-R25/R32-2400, R25 Drifter Rod,
R32-Hex 25-R25, Flushing Hole 8.6 mm |
2400 | 7 7/8 | 25 | 1 | 9.6 |
| 4148300406 |
DRH25-R25/R32-2600, R25 Drifter Rod, R32-Hex 25-R25, Flushing Hole 8.6 mm |
2600 | 8 1/2 | 25 | 1 | 10.4 |
| 4148300407 |
DRH25-R25/R32-2800, R25 Drifter Rod, R32-Hex 25-R25, Flushing Hole 8.6 mm |
2800 | 9 1/5 | 25 | 1 | 11.1 |
| 4148300408 |
DRH25-R25/R32-3090, R25 Drifter Rod, R32-Hex 25-R25, Flushing Hole 8.6 mm |
3090 | 10 1/7 | 25 | 1 | 12.2 |
| 4148300409 |
DRH25-R25/R32-3700, R25 Drifter Rod, R32-Hex 25-R25, Flushing Hole 8.6 mm |
3700 | 12 1/7 | 25 | 1 | 14.6 |
