High Fatigue Strength DTH Drilling Tools DTH Sub Male-Male , Downhole Drilling Tools

High Fatigue Strength DTH Drilling Tools DTH Sub Male-Male , Downhole Drilling Tools
High Fatigue Strength DTH Drilling Tools DTH Sub Male-Male , Downhole Drilling Tools High Fatigue Strength DTH Drilling Tools DTH Sub Male-Male , Downhole Drilling Tools High Fatigue Strength DTH Drilling Tools DTH Sub Male-Male , Downhole Drilling Tools

Large Image :  High Fatigue Strength DTH Drilling Tools DTH Sub Male-Male , Downhole Drilling Tools

Product Details:

Place of Origin: China
Brand Name: MIROC
Model Number: 4148301593-4148301595

Payment & Shipping Terms:

Minimum Order Quantity: 50
Price: negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 25 days
Payment Terms: T/T or L/C
Supply Ability: 20000 pieces per month
Detailed Product Description
High Light:

down the hole drilling tools

,

downhole drilling tools



High Fatigue Strength DTH Drilling Tools DTH Sub Male-Male , Downhole Drilling Tools





Description


In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.

DTH drilling enables drillers to reach hole depths that are double of what top hammer drilling can do. This is possible with the use of DTH Pipes and DTH Subs.


• High grade steel used on thread area and main DTH sub body
• Automated welding and machining processes employed


Color: Based on Customer requirements


Material: Tungsten carbide and high strength alloy steel


Processing: CNC milling and proprietary heat treatment process


Type: DTH Sub Male-Male



Applications

• Underground mining
• Quarry benching operations
• Water well drilling


Competitive Advantage


High strength steel with high fatigue strength and excellent wear resistance

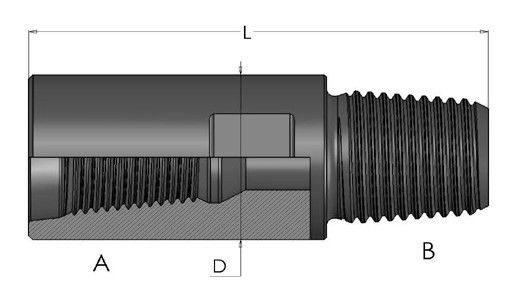

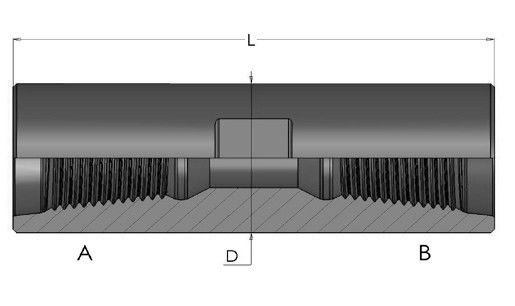

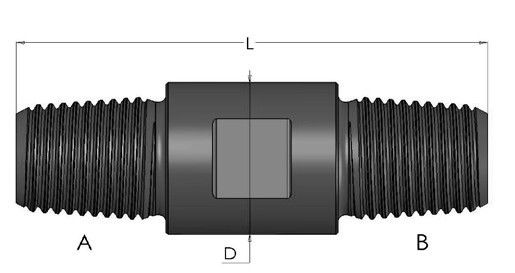

specification
1

<

Part Number A Thread B Thread

Diameter A

(mm)

Diameter A

(inch)

Diameter B

(mm)

Diameter B

(inch)

4148301593 2 3/8" API Reg 2 3/8" API Reg 90 3 1/2 90 3 1/2
4148301594 2 3/8" API Reg 3 1/2" API Reg 90 3 1/2 115 4 1/2
4148301595 3 1/2" API Reg 3 1/2" API Reg 115 4 1/2 115 4 1/2

2

<

Product Code and Brief Description

Length

(mm)

Length

(inch)

Wrench Flat

(mm)

Wrench Flat

(inch)

Weight

(kg)

DTHSMM90/90-70 70 2 3/4 65 2 5/9 4.6
DTHSMM90/115-97 97 3 5/6 95 3 3/4 9
DTHSMM115/115-90 90 3 1/2 95 3 3/4 10
