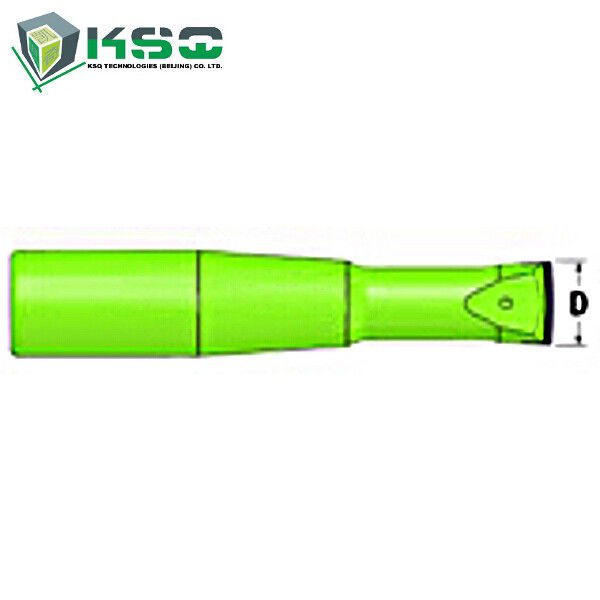

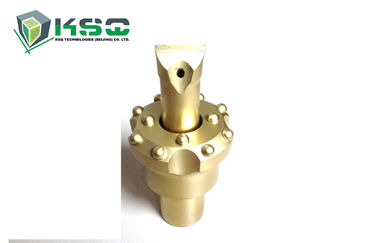

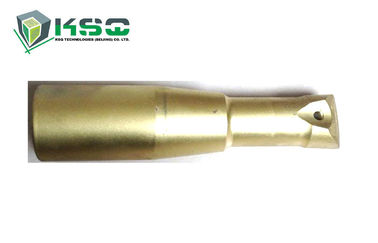

    R32 6°Drill Bit Shank Tungsten Carbide Inserts 15x10mm



    Description

    This type of bit is used for making large cut holes in drifting and tunneling. A smaller hole is first drilled and then reamed to the final size in combination with a pilot adapter.


    • Widely used in drifting and tunneling
    • R32 thread system


    Color: Based on Customer requirements


    Material: Tungsten carbide and high strength alloy steel


    Processing: CNC milling and proprietary heat treatment process

    Type: R32 Pilot Adapter 6°



    Applications

    • Underground mining
    • Tunneling



    Competitive Advantage

    • High grade tungsten carbide inserts
    • Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



    specification


    Part Number Bit Diameter (mm) Bit Diameter (inch) Tip Size (W x H, mm)
    4148300547 40 1 4/7 15x10



    Product Code and Brief Description Angle Front Flushing Holes Side Flushing Holes

    Weight

    (kg)

    PA126-6D-R32, R32 Pilot Adapter 6° - - - 2.2
