T38 Threaded High Grade Tungsten Carbide Cross Bits CNC Milling Drill Bit

T38 Threaded High Grade Tungsten Carbide Cross Bits CNC Milling Drill Bit

    • T38 Threaded High Grade Tungsten Carbide  Cross Bits CNC Milling Drill Bit
    • T38 Threaded High Grade Tungsten Carbide  Cross Bits CNC Milling Drill Bit
    • T38 Threaded High Grade Tungsten Carbide  Cross Bits CNC Milling Drill Bit
  • T38 Threaded High Grade Tungsten Carbide  Cross Bits CNC Milling Drill Bit

    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Model Number: 4148300763-4148300765

    Payment & Shipping Terms:

    Minimum Order Quantity: 50
    Price: negotiation
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 25 days
    Payment Terms: T/T or L/C
    Supply Ability: 20000 pieces per month
    Contact Now
    Detailed Product Description
    Color: Green,Blue Or Based On Customer Requirements Material: Tungsten Carbide And High Strength Alloy Steel
    Type: T38 X-type Bit
    High Light:

    metal drill bit

    ,

    high speed drill bits

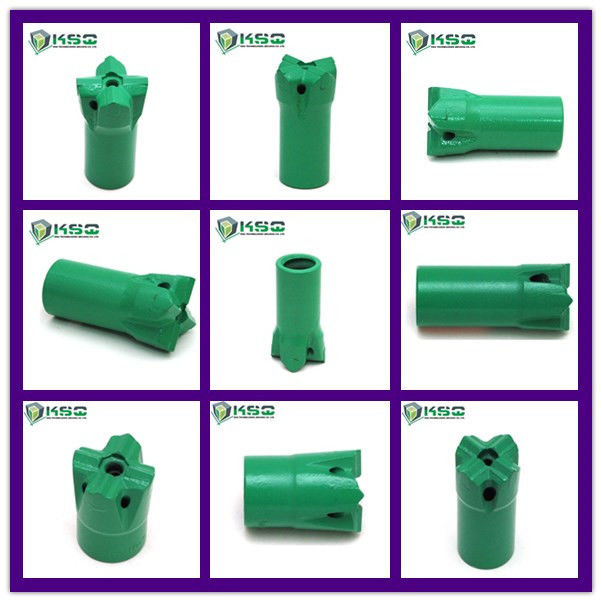

    T38 Mining Threaded Cross Bits CNC Milling Drill Bits 3 Inch 89mm


    Description
    Cross type bit with steel inserts using H25 thread system. It has a slow penetration rate but it produces a very straight drill hole.
    • Steel inserts
    • Widely used in dimensional stone industry, drifting and tunneling

    Color: Green,Blue or Based on Customer requirements
    Material: Tungsten carbide and high strength alloy steel
    Processing: CNC milling and proprietary heat treatment process
    Type: T38 X-type Bit
     Applications
    • Dimensional Stone Industry
    • Underground Mining
    • Tunneling

    Competitive Advantage
    • High grade tungsten carbide inserts
    • Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment


    specification


    Part Number

    Product Code
    and Brief Description

    Bit
    Diameter
    (mm)

    Bit
    Diameter
    (inch)

    Tip Size
    (W x H,
    mm)

    Front
    Flushing
    drill holes

    Side
    Flushing
    drill holes

    Weight
    (kg)

    4148300763

    X-64-T38,
    T38 X-type Bit

    64 2 1/2 25x13 1 2 1.9
    4148300764

    X-76-T38,
    T38 X-type Bit

    76 3     25x13 1 2 2.5
    4148300765

    X-89-T38,
    T38 X-type Bit

    89 3 1/2 25x13 1 2 2.8
