Place of Origin: | China(Mainland) |
Brand Name: | MIROC |
Certification: | ISO9001 |
Model Number: | Rock button bit, 7° - 12° Taper button bit, dia 40mm, Front 2*7mm, Gauge 5*9mm |
Minimum Order Quantity: | 50 |
---|---|
Price: | USD1-7 pieces |
Packaging Details: | Carton or Wooden Box |
Delivery Time: | 1-10 days |
Payment Terms: | L/C, D/A, T/T, Western Union, D/P |
Supply Ability: | 900000 pieces per month |
Material: | Tungsten Carbide And High Strength Alloy Steel | Color: | Green, Black Or Based On Customers |
---|---|---|---|
Range Of Diameter: | 26mm - 60mm | Bit Type: | Chisel Bit, Cross Type Bit , Button Bit |
Bit Degree: | 7° , 11° , 12° | Use: | Tunneling , Mining , Quarrying |
Advantages: | Good Quality | Processing: | Hreatment Process |
High Light: | hardened steel drill bits,milling drill bits |

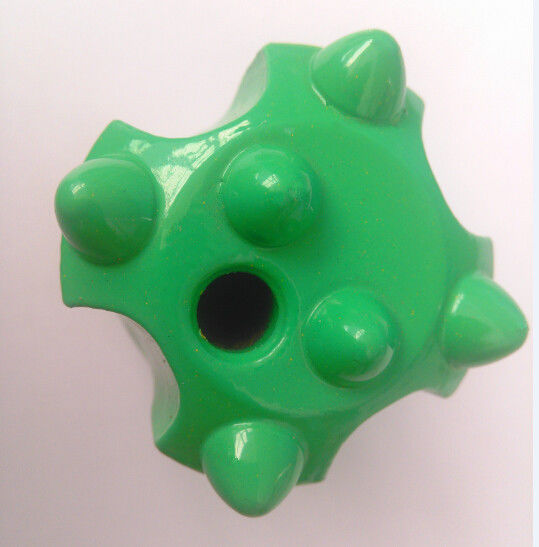

7° Taper Button Drill Bit Diameter 40mm Gauge 4 x 8mm Tungsten Carbide
• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry
Description
Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered button bits for faster drilling penetration rate. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.
Applications
• Dimensional Stone Industry
• Underground Mining
• Tunneling
Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
specification
<
Tapered Button Bit , 7 ° , 11° , 12° | ||||||
Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
mm | Front | Gauge | Front | Side | kg | |
1 | 32 | 1x8 | 3x8 | 1 | 1 | 0.24 |
2 | 33 | 2x7 | 5x7 | 2 | 1 | 0.26 |
3 | 34 | 2x7 | 4x7 | 1 | 1 | 0.29 |
4 | 35 | 2x7 | 5x8 | 1 | 1 | 0.33 |
5 | 36 | 2x7 | 5x8 | 1 | 1 | 0.37 |
6 | 38 | 1x8 | 3x9 | 1 | 1 | 0.37 |
7 | 40 | 1x8 | 3x9 | 1 | 1 | 0.38 |
8 | 41 | 2x7 | 5x9 | 1 | 1 | 0.42 |
9 | 42 | 2x8 | 5x9 | 1 | 1 | 0.43 |
Chisel Bit, 7 ° , 11° , 12° | |||||
Length (mm) | Chisel Size (H x W) mm | Weight (Kg) | |||
1 | 26 | 10x7 | 0.17 | ||
2 | 28 | 10x7 | 0.18 | ||
3 | 30 | 13.5x8 | 0.22 | ||
4 | 32 | 13.5x8 | 0.24 | ||
5 | 34 | 13.5x8 | 0.27 | ||
6 | 36 | 13.5x8 | 0.3 | ||
7 | 38 | 13.5x8 | 0.33 | ||
8 | 38 | 15x9 | 0.33 | ||
9 | 40 | 3.5x9.2 | 0.38 | ||
10 | 40 | 15x9.8 | 0.38 | ||
11 | 42 | 13.5x9.2 | 0.41 | ||
12 | 42 | 15x9.8 | 0.41 | ||
13 | 43 | 13.5x9.2 | 0.42 |
Company Profile
KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:
