| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | DHD 350 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden box or carbon box |
| Delivery Time: | 15-20days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000pcs per month |
| Type: | Drill Bit | Material: | Carbon Steel |
|---|---|---|---|
| Use: | Well Drilling | Application: | Coal Mining,Quarry Drilling,DTH Drilling |
| Diameter: | 152mm | Machine Type: | Drilling Tool |
| High Light: | dhd350 dth drill bits,152mm dth drill bits,high air pressure rock dth bit |
||

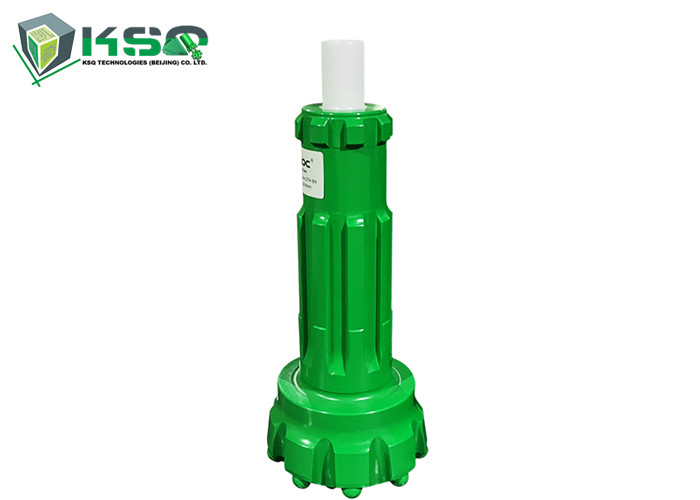

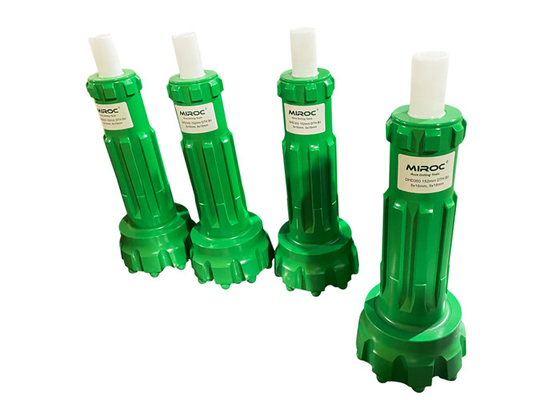

Rock Drilling Eccentric Overburden Casing System Odex Drill DTH Button Bit
Description
In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.

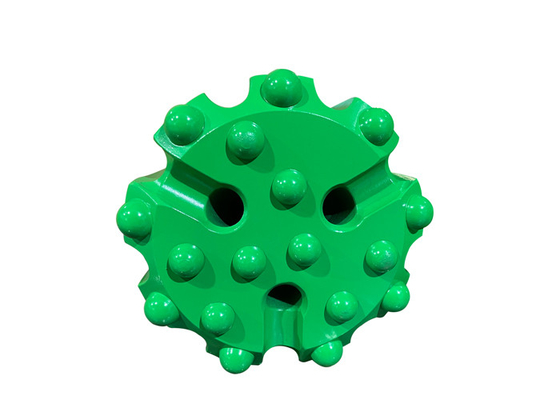

DTH bits are paired with their corresponding hammers (by drilling hole diameter and spline configuration). Customers can customize their DTH bits in various ways, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.
• Medium to large size drilling diameters
• Works in high pressure range, capable of drilling deep hole lengths
• Color: Green,Blue or Based on Customer requirements
DHD350 High Air Pressure DTH Bit Specification:
| Diameter | Buttons and Size (mm) | Flushing hole | Weight | Part Number | |||
| mm | inch | Front | Gauge | kg | |||
| DHD350 Ballistic button/Concave face | |||||||
| 130 | 5 1/8 | 4×14,3×14 | 8×16 | 2 | 15 | 4148301310 | |
| 133 | 5 1/4 | 4×14,3×14 | 8×16 | 2 | 15 | 4148301311 | |
| 140 | 5 1/2 | 4×14,4×14 | 8×16 | 2 | 16 | 4148301312 | |
| 146 | 5 3/4 | 4×14,4×14 | 8×16 | 2 | 18 | 4148301313 | |
| 152 | 6 | 4×16,4×16 | 8×18 | 2 | 20 | 4148301314 | |
| DHD350 Spherical button/Concave face | |||||||
| 130 | 5 1/8 | 4×14,3×14 | 8×16 | 2 | 15 | 4148301315 | |
| 133 | 5 1/4 | 4×14,3×14 | 8×16 | 2 | 15 | 4148301316 | |
| 140 | 5 1/2 | 4×14,4×14 | 8×16 | 2 | 16 | 4148301317 | |
| 146 | 5 3/4 | 4×14,4×14 | 8×16 | 2 | 18 | 4148301318 | |
| 152 | 6 | 4×16,4×16 | 8×18 | 2 | 20 | 4148301319 | |
| DHD350 Ballistic button/Convex face | |||||||
| 130 | 5 1/8 | 3×14,4×14 | 9×16 | 3 | 15 | 4148301320 | |
| 133 | 5 1/4 | 3×14,4×14 | 9×16 | 3 | 15 | 4148301321 | |
| 140 | 5 1/2 | 3×16,4×16 | 9×16 | 3 | 16 | 4148301322 | |
| 146 | 5 3/4 | 3×16,4×16 | 9×16 | 3 | 18 | 4148301323 | |
| 152 | 6 | 3×16,5×16 | 9×18 | 3 | 20 | 4148301324 | |
| DHD350 Spherical button/Flat face | |||||||
| 130 | 5 1/8 | 7×14 | 8×16 | 2 | 15 | 4148301325 | |
| 133 | 5 1/4 | 7×14 | 8×16 | 2 | 15 | 4148301326 | |
| 140 | 5 1/2 | 7×14 | 7×18 | 2 | 16 | 4148301327 | |
| 140 | 5 1/2 | 8×14 | 9×16 | 3 | 16 | 4148301328 | |
| 146 | 5 3/4 | 8×14 | 9×16 | 3 | 18 | 4148301329 | |
| 152 | 6 | 8×16 | 9×18 | 3 | 20 | 4148301330 | |
