Top Hammer Taper Button Drill Bit Diameter 20 - 60mm with 4 - 7 Buttons

Top Hammer Taper Button Drill Bit Diameter 20 - 60mm with 4 - 7 Buttons

    • Top Hammer Taper Button Drill Bit Diameter 20 - 60mm with 4 - 7 Buttons
    • Top Hammer Taper Button Drill Bit Diameter 20 - 60mm with 4 - 7 Buttons
    • Top Hammer Taper Button Drill Bit Diameter 20 - 60mm with 4 - 7 Buttons
    • Top Hammer Taper Button Drill Bit Diameter 20 - 60mm with 4 - 7 Buttons
  • Top Hammer Taper Button Drill Bit Diameter 20 - 60mm with 4 - 7 Buttons

    Product Details:

    Place of Origin: China(Mainland)
    Brand Name: MIROC
    Certification: ISO9001
    Model Number: Taper button bit

    Payment & Shipping Terms:

    Minimum Order Quantity: 50 pieces
    Price: negotiation
    Packaging Details: Carton or Wooden Box
    Delivery Time: 1-15 days
    Payment Terms: L/C, D/A, T/T, Western Union, D/P
    Contact Now
    Detailed Product Description
    Material: 42CrNiMoV Color: Green Or Based On Customers Requirements
    Range Of Dia.: 26mm - 41mm Bit Type: Button Bit
    Bit Degree: 7° , 11° , 12° Use: Tunneling , Mining , Quarrying
    Place Of Origin: ShanDong , China (Mainland) Processing: Forging

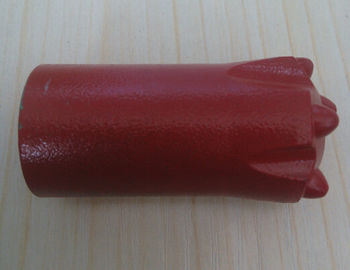

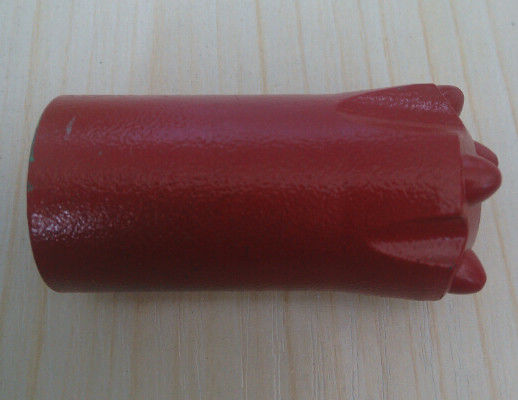

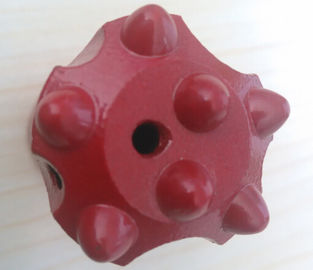

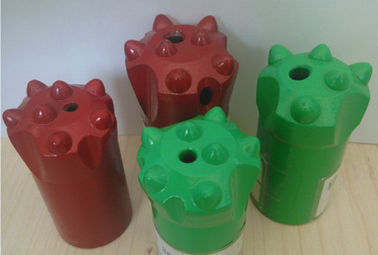

    Top Hammer Taper Button Drill Bit Diameter 20 - 60mm with 4 - 7 Buttons


    • Suitable for small hole range
    • Widely used in Dimensional Stone Quarrying Industry
    • Widely used in Underground Mining Industry

    Description
    Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered button bits for faster drilling penetration rate. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.

    Applications
    • Dimensional Stone Industry
    • Underground Mining
    • Tunneling


    Competitive Advantage
    • High grade tungsten carbide inserts
    • Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment


    specification

    Taper Button Bit

    Part Number

    Bit Diameter (mm)

    Bit Diameter (inch)

    Front Buttons
    (No. x mm)

    Gauge Buttons
    (No. x mm)

    4148300223

    32

    1 1/4

    2x7

    5x7

    4148300224

    33

    1 2/7

    2x7

    5x7

    4148300225

    33

    1 2/7

    2x7

    6x7

    4148300226

    35

    1 3/8

    2x7

    6x7

    4148300227

    38

    1 1/2

    2x7

    5x9

    4148300228

    41

    1 5/8

    2x7

    5x9

    4148300229

    35

    1 3/8

    2x7

    5x9

    4148300230

    36

    1 3/7

    2x7

    5x9

    4148300231

    38

    1 1/2

    2x7

    5x9

    4148300232

    41

    1 5/8

    2x7

    5x9


    Top Hammer Taper Button Drill Bit Diameter 20 - 60mm with 4 - 7 ButtonsTop Hammer Taper Button Drill Bit Diameter 20 - 60mm with 4 - 7 Buttons

    Top Hammer Taper Button Drill Bit Diameter 20 - 60mm with 4 - 7 Buttons

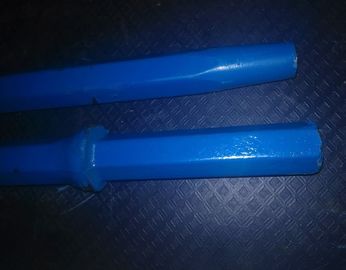

    Hex Tapered Rod ,  7 ° ,  11° , 12°

    Shank 22 x 108 mm (7/8” x 4 1/4”)



      Length (mm) Weight (Kg) PN.
    1 600 1.93 4148300179
    2 800 2.54 4148300180
    3 1000 3.15 4148300181
    4 1200 3.76 4148300182
    5 1500 4.68 4148300183
    6 1600 4.98 4148300184
    7 1800 5.59 4148300185
    8 2000 6.2 4148300186
    9 2200 6.81 4148300187
    10 2300 7.12 4148300188
    11 2400 7.42 4148300189
    12 2500 7.73 4148300190
    13 2600 8.03 4148300191
    14 3000 9.25 4148300192
    15 3500 10.78 4148300193
    16 4000 12.3 4148300194
    17 4500 13.83 4148300195
    18 5000 15.35 4148300196
    19 5500 16.88 4148300197
    20 6000 18.3 4148300198



    Top Hammer Taper Button Drill Bit Diameter 20 - 60mm with 4 - 7 ButtonsTop Hammer Taper Button Drill Bit Diameter 20 - 60mm with 4 - 7 Buttons
