H25 / R38 Flat / Oblique Button Drill Bit , Cross Bit Thread Steel for Tunneling

H25 / R38 Flat / Oblique Button Drill Bit , Cross Bit Thread Steel for Tunneling

  • H25 / R38 Flat / Oblique Button Drill Bit , Cross Bit Thread Steel for Tunneling
  • H25 / R38 Flat / Oblique Button Drill Bit , Cross Bit Thread Steel for Tunneling
H25 / R38 Flat / Oblique Button Drill Bit , Cross Bit Thread Steel for Tunneling
Product Details:
Place of Origin: Shan Dong China(Mainland)
Brand Name: MIROC
Certification: API / GB
Model Number: Thread / Taper button bits
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: negotiation
Packaging Details: Carton / Wooden Box or Based on Customers
Delivery Time: 1-10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 8000 pieces per month
Contact Now
Detailed Product Description
Material: Tungsten Carbide / YK05 Color: Green / Yellow
Process: Forging / Heat Treatment Advantages: OEM.
Use: Mining , Tunneling And Construction Type: Drilling Machines
High Light:

hardened steel drill bits

,

milling drill bits

H25 / R38 Flat / Oblique Button Drill Bit , Cross Bit Thread Steel for Tunneling

Specifications

our dominant drill bits are chisel bits, cross bits, buttons bits, DTH bits

We are a professional company which is specialized in making and researching on drilling equipments as well, and our dominant products are chisel bits, cross bits, buttons bits, DTH bits with high, medium and low air pressure, symmetric drilling tools, eccentric drilling tools, standardized API system casings, bit shanks and casing tubes which are fit for hydraulic drilling equipments.



Mainly Products



Thread Drill Bits---Diameter: 51mm  to 127mm

Thread Type---R22,R25,R28,R32,R38,T38,T45,T51
Face Shape---Plate, Concave, Convex.

Bit Shank & Coupling sleeve---R22,R25,R28,R32,R38,T38,T45,T51

Steel Drill Rod---H19/H22, Length: 0.5M to 6.0M.

Thread Rod---R25,R28,R32,R38,T38,T45,T51.

Integral Drill Rod---H19/H22, Diameter---20mm - 42mm.

Description

High grade tungsten carbide inserts
Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC



Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered button bits for faster drilling penetration rate. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.



• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry



Specification

H25 Thread cross type bit
  Diameter (mm) Buttons and Size (mm) Flushing Hole
Front Side
1 35 12x8 1 4
2 38 12x9 1 4
3 41 12x10 1 4
4 45 12x11 1 4
5 48 12x12 1 4
6 51 12x13 1 2
7 54 12x14 1 4
R25 Thread cross type bit
  Diameter (mm) Buttons and Size (mm) Flushing Hole
Front Side
1 33 14x8 1 2
2 35 14x8 1 2
3 38 14x8 1 4
4 41 14x8 1 4
5 43 14x8 1 4
6 45 14x8 1 2
7 51 14x8 1 4
R28 Thread cross type bit
  Diameter (mm) Buttons and Size (mm) Flushing Hole
Front Side
1 38 14x8 1 2
2 41 14x8 1 4
3 43 14x8 1 4
4 45 14x8 1 4
5 51 14x8 1 4
R32 Thread cross type bit
  Diameter (mm) Buttons and Size (mm) Flushing Hole
Front Side
1 41 16×10 1 4
2 43 16×10 1 2
3 45 16×10 1 4
4 48 16×10 1 4
5 51 16×10 1 4
6 57 16×10 1 4
7 64 18×13 1 4
R38 X-Type bit
  Diameter (mm) Buttons and Size (mm) Flushing Hole
Front Side
1 64 25×13 1 2
2 76 25×13 1 2
3 89 25×13 1 2

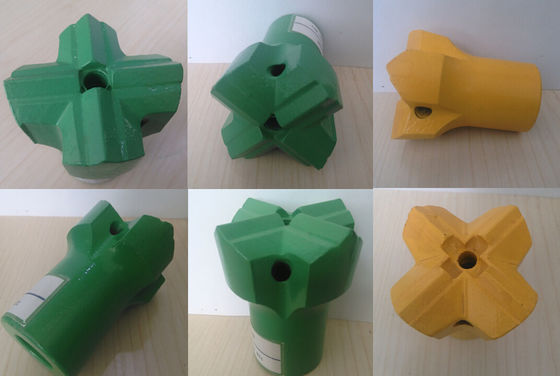

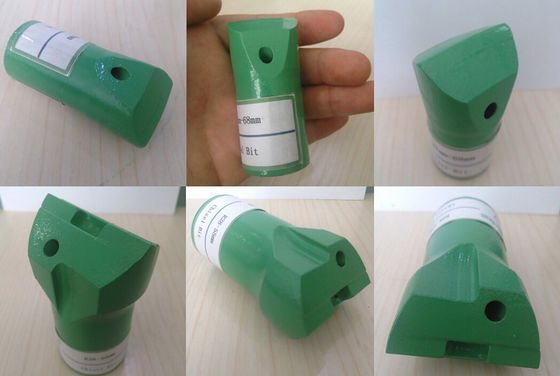

H25 / R38 Flat / Oblique Button Drill Bit , Cross Bit Thread Steel for Tunneling 0H25 / R38 Flat / Oblique Button Drill Bit , Cross Bit Thread Steel for Tunneling 1H25 / R38 Flat / Oblique Button Drill Bit , Cross Bit Thread Steel for Tunneling 2



Tapered Button Bit ,  7 ° ,  11° , 12°
  Bit Dia. Buttons and Size (mm) Flushing Hole Weight
  mm Front Gauge Front  Side kg
1 32 1x8  3x8 1 1 0.24
2 33 2x7  5x7 2 1 0.26
3 34 2x7  4x7 1 1 0.29
4 35 2x7  5x8 1 1 0.33
5 36 2x7  5x8 1 1 0.37
6 38 1x8  3x9 1 1 0.37
7 40 1x8  3x9 1 1 0.38
8 41 2x7  5x9 1 1 0.42
9 42 2x8 5x9 1 1 0.43



H25 / R38 Flat / Oblique Button Drill Bit , Cross Bit Thread Steel for Tunneling 3
