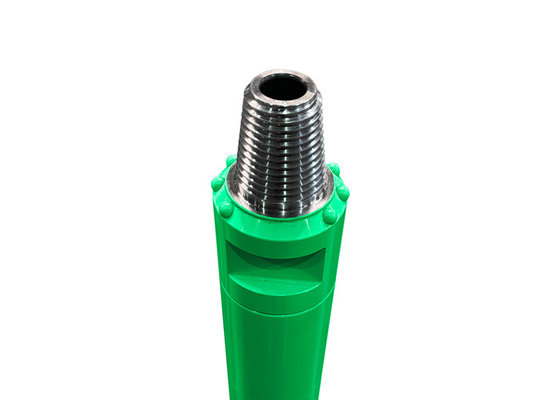

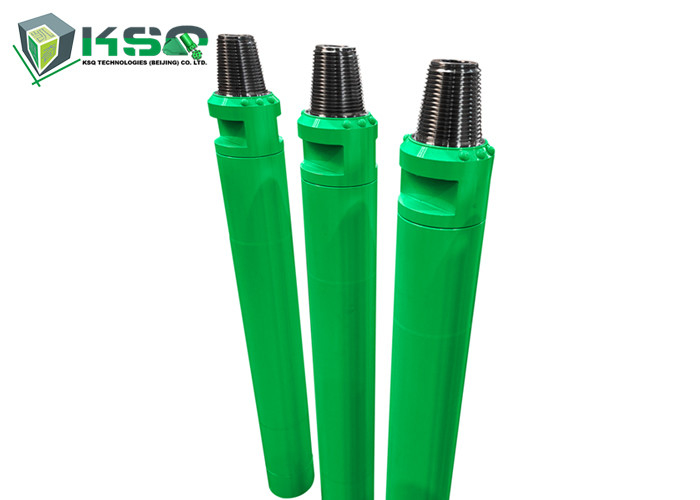

High Air Pressure QL60 DTH Drilling Hammer

High Air Pressure QL60 DTH Drilling Hammer

  • High Air Pressure QL60 DTH Drilling Hammer
  • High Air Pressure QL60 DTH Drilling Hammer
  • High Air Pressure QL60 DTH Drilling Hammer
High Air Pressure QL60 DTH Drilling Hammer
Product Details:
Place of Origin: China
Brand Name: KSQ
Certification: ISO
Model Number: QL60 DTH Drilling Hammer
Payment & Shipping Terms:
Minimum Order Quantity: negociated one
Price: negociated one
Packaging Details: wooden box or plastic box
Delivery Time: 10-15 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Model: QL Series Type: DTH Drill Hammer
Machine Type: Drilling Tool, Drilling Equipment Processing Type: Forging
Use: Quarry Or Mine Or Ore Drill Diameter: 65mm-800mm
Color: As Customers' Requirements
High Light:

High Air Pressure DTH Drilling Hammer

,

QL60 DTH Drilling Hammer

High Air Pressure QL60 DTH Drilling Hammer



Apply to:

  • Surface and underground mining
  • Tunneling
  • Quarries
  • Dam construction
  • Construction
  • Geological exploration
  • Water well

Features:

  • Suitable for all rock conditions at a wide range of air pressures 116-435psi (8-30bar)
  • Patent structure reduces consumable parts to avoid interactive wear, increase hammers reliability and increase 10%-30% faster penetration rates and make hammer more easy for maintenance
  • Heat treated top sub, cylinder, piston, piston case, driver sub give hammers longer service life
  • Extremely efficient air exhaust provide excellent hole cleaning and allows for drilling against very large volumes of water


After-sales service:

  • Our sales team will response to your question within 24 hours (holidays excluded)
  • Technical support will be available in anytime
  • Free replacement will be provided immediately once any failure confirmed caused by our product quality
Type Dth hammer
Material Carbon steel
Use Well Drilling,mining
Quality 100% quality similarity world top class brands
Advantages high quality and factory prices
Shank series COP,MISSION, SD, DHD, BR, QL, BR,CIR etc.
series low/middle/high air pressure dth hammer
Color According to your requirements



Compatibility series: COP/SD/DHD/IR/mission/QL

Hammer inch

Bits diameter

Shank

Metric

Inch

1"

64mm-70mm

2 1/2"-2 3/4"

BR1

2"

70mm-95mm

2 3/4"-3 3/4"

MACH20/BR2

3"

90mm-102mm

3 1/2"-4"

COP32/COP34/MACH303

M30/DHD3.5/BR3

4"

105mm-152mm

4 1/8"-6"

COP44/DHD340/MACH44

SD4/M40/QL40

5"

133mm-165mm

5 1/4"-6 1/2"

COP54/DHD350R/MACH50

SD5/M50/QL50/BR5

6"

152mm-254mm

4 1/8"-10"

COP64/DHD360/SD6

M60/QL60/Bulroc BR6

8"

203mm-330mm

8"-13"

COP84/DHD380/SD8

QL80/M80

10"

254mm-380mm

10"-15"

SD10

NUMA100

12"

305mm-508mm

12"-20"

DHD1120/SD12

NUMA120/NUMA125
