| Place of Origin: | ShanDong China(Mainland) |
| Brand Name: | MIROC |
| Certification: | API / GB |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton / Wooden Box or Based on Customers |
| Delivery Time: | 1-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 pieces per month |
| Model Number: | Button Bit | Material: | Tungsten Carbide, 45CrNiMoV And YK05 |
|---|---|---|---|
| Color: | Gray Or Based On Customers | Processing: | Forging |
| Use: | Coal Mining | Shape: | According To The Needs |
| High Light: | hardened steel drill bits,milling drill bits |
||

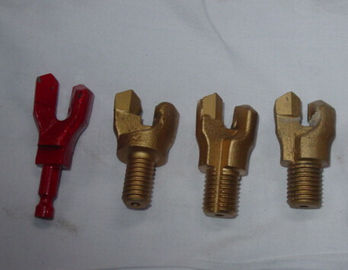

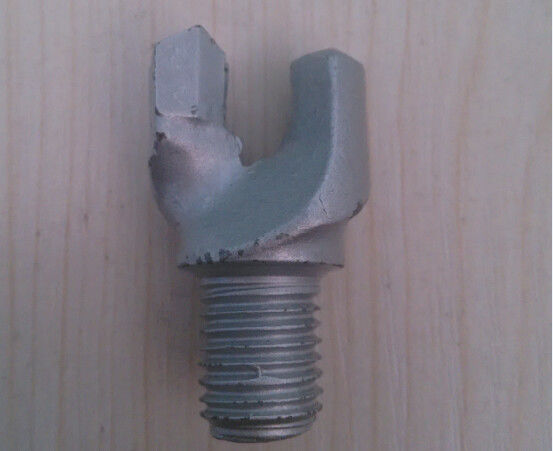

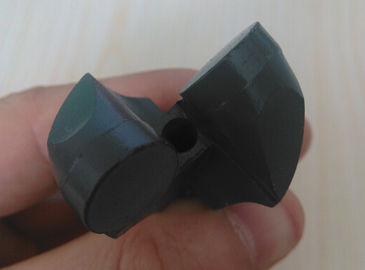

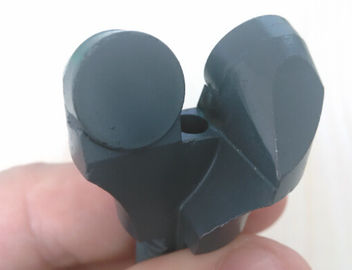

Screwing Button Drilling Bits 27mm - 32mm with Tungsten Carbide Insert
We can manufacture all kinds of bits and shells according to customer's special requirement.
Advantage:
1.coal mining tool,coal mine drill bit
2.low price and supreme quality
3.manufacturer
4.Certified by ISO9001
Product Description:
Applications:
Apply to the anchor-network support hole drilling in coal mine, hydraulic project. Etc.
Characteristics:
1. High wear resistance and impact-resistance toughness.
2. To repeat repair & greaning are not necessary, long drill life.
3. High efficiency could be promoted sharply in penetration of high-medium hard rock formation.
4. Labour intensity could be reduced.
5. Rock formation to be suitable t: F=4-12
Specification:
|
Mining Drilling Tools |
Main Standard(mm) |
|||
|
D |
H |
L |
M |
|
|
Thread joint |
27 |
44 |
17 |
M14×1.5 |
|
27 |
54 |
17 |
M12×1.75 |
|
|
28 |
54 |
20 |
M12×1.75 |
|
|
29 |
52 |
18 |
M14×1.5 |
|
|
30 |
50 |
18 |
M14×1.5 |
|
|
32 |
52 |
22 |
M14×1.5 |
|
|
32 |
56 |
22 |
M12×1.75 |
|
Threaded Button Bit
| T38 button bit | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 64 | 3×10, 1×10 | 6×11 | 3 | - | 1.7 |
| 2 | 70 | 3×10, 1×10 | 6×12 | 3 | - | 1.8 |
| 3 | 76 | 3×11, 1×11 | 6×12 | 3 | 1 | 2.6 |
| 4 | 89 | 3×11, 2×11 | 6×13 | 3 | 1 | 3.3 |
| R38 button bit | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 64 | 3×11 | 6×12 | 3 | - | 1.8 |
| 2 | 70 | 3×10, 1×10 | 6×12 | 3 | - | 1.8 |
| 3 | 76 | 3×11, 1×11 | 6×12 | 2 | - | 2.6 |
| 4 | 89 | 4×13, 1×13 | 8×13 | 4 | - | 3.3 |
| R32 button bit | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 41 | 2×8 | 5×9 | 1 | 1 | 0.7 |
| 2 | 43 | 2×9 | 5×10 | 1 | 1 | 0.7 |
| 3 | 45 | 2×9 | 5×11 | 1 | 1 | 0.8 |
| 4 | 48 | 2×9 | 5×11 | 1 | 1 | 0.9 |
| 5 | 51 | 2×10 | 5×11 | 1 | 1 | 1 |
| 6 | 57 | 3×9 | 6×11 | 3 | - | 1.3 |
| 7 | 64 | 3×11 | 6×12 | 3 | - | 1.6 |
| 8 | 70 | 4×11 | 8×11 | 2 | - | 2.6 |
| 9 | 76 | 4×11 | 8×11 | 2 | - | 2.8 |
| R28 button bit | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 37 | 2×7 | 5×9 | 1 | 1 | 0.5 |
| 2 | 38 | 2×7 | 5×9 | 1 | 1 | 0.6 |
| 3 | 41 | 2×8 | 5×9 | 1 | 1 | 0.7 |
| 4 | 43 | 2×9 | 5×9 | 1 | 2 | 0.8 |
| 5 | 45 | 2×9 | 5×10 | 1 | 2 | 0.9 |
| 6 | 48 | 2×9 | 5×11 | 1 | 2 | 1 |
Company Profile:
KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:
Contact Person: Mr. Yingkai Zhang
Tel: +86 18501231988
