R38N SDA Self Drilling Anchors Alloy Steel for Slope Stabilization

R38N SDA Self Drilling Anchors Alloy Steel for Slope Stabilization

    • R38N SDA Self Drilling Anchors Alloy Steel for Slope Stabilization
    • R38N SDA Self Drilling Anchors Alloy Steel for Slope Stabilization
    • R38N SDA Self Drilling Anchors Alloy Steel for Slope Stabilization
    • R38N SDA Self Drilling Anchors Alloy Steel for Slope Stabilization
  • R38N SDA Self Drilling Anchors Alloy Steel for Slope Stabilization

    Product Details:

    Place of Origin: ShanDong China(Mainland)
    Brand Name: MIROC
    Certification: GB / ISO
    Model Number: Rock Bolt

    Payment & Shipping Terms:

    Minimum Order Quantity: 100
    Price: negotiation
    Packaging Details: Carton / Wooden Box or Based on Customers
    Delivery Time: 1-5 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 9000000 KG Per month
    Contact Now
    Detailed Product Description
    Material: Alloy Structure Steel Ultimate Load Capacity: 200 - 1900KN
    Yield Load Capacity: 150 - 1500 KN Diameter: 5.1cm
    Color: Based On Customers Length: 1m - 8m

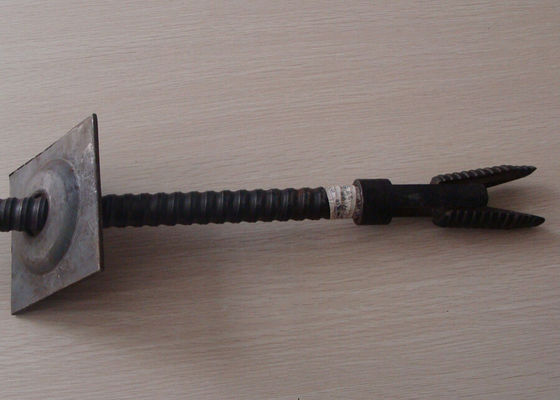

    R38N SDA Self Drilling Anchors Alloy Steel for Slope Stabilization





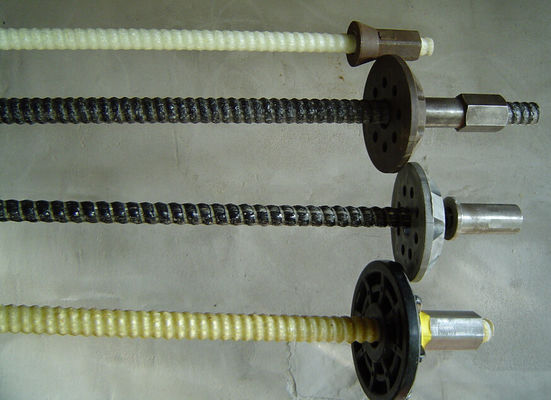

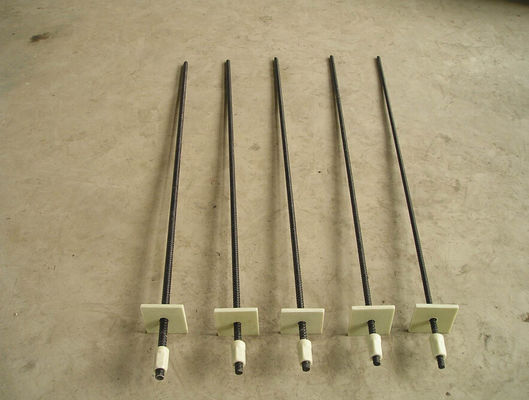

    Anchor bolt



    Anchor bolt means a rod that transfers the structures or geotechnical load to a stable rock

    formations, it consists of rod, drill bit, coupling, plate, grouting stopper and nut. It has been

    widely used in tunnling, mining, slope stabilization, tunneldiseases treatment and roof supporting

    of undergroundworks. It is for loose ground(clay, sand friable etc.) Hollow anchor rod is made of

    seamless tube with high strength.



    Features of hollow grounting anchor bolt



    • Particularly suitable for difficult ground conditions.

    • A high rate of installation since drilling, placing and grouting can be performed in one single  operation.

    • Self drilling system eliminates the requirement for a cased borehole.

    • Installation with simultaneous drilling and grouting possible.

    • Easy installation in all directions, also upwards.

    • Suitable for working in limited space, height and in areas of difficult access.

    • Simple post grouting system. • Hot-dipped galvanizing for corrosion protection



    Applications in Tunneling & Ground Engineering



    • Radial bolting

    • Slope stabilization

    • Forepoling

    • Micro injection pile

    • Face stabilization

    • Temporary support anchor

    • Portal preparation

    • Soil nailing





    Self-Drilling Anchor Bolt Description







    R25N

    R32N

    R32S

    R38N

    R51L

    R51N

    T76N

    T76S

    Outside Diameter (mm)

    25

    32

    32

    38

    51

    51

    76

    76

    Internal Diameter (mm)

    14

    19

    16

    19

    36

    33

    52

    45

    Ultimate Load Capacity (kN)

    200

    280

    360

    500

    550

    800

    1600

    1900

    Yield Load Capacity (kN)

    150

    230

    280

    400

    450

    630

    1200

    1500

    Tensile Strength, Rm (N/mm2)

    800

    800

    800

    800

    800

    800

    800

    800

    Yield Strength, Rp0.2 (N/mm2)

    650

    650

    650

    650

    650

    650

    650

    650

    Weight (Kg/m)

    2.3

    3.2

    3.6

    5.5

    6.5

    8.0

    16.0

    19.7

    Thread Type (left-hand)

    ISO10208

    ISO1720

    MAI T76 Standard

    Steel Grade

    EN10083-1 (Alloy Structure Steel)

    Compared to carbon steel, alloy structure steel has high anti-corrosion capacity and high mechanical.



















































    Anchor Plate





    R25N

    R32N

    R32S

    R38N

    R51L

    R51N

    T76N

    T76S

    Dimention(mm)

    150*150

    200*200

    200*200

    200*200

    200*200

    250*250

    250*250

    250*250

    Thickness(mm)

    8

    10

    12

    12

    20

    40

    40

    40

    Hole diameter(mm)

    30

    35

    35

    41

    60

    60

    80

    80

    Weight(KG/PC)

    1.4

    3

    3.7

    3.6

    8.8

    18.5

    18

    18

    Cold deformed with geometry



    R38N SDA Self Drilling Anchors Alloy Steel for Slope Stabilization



    Anchor Coupling





    R25N

    R32N

    R32S

    R38N

    R51L

    R51N

    T76N

    T76S

    Outside diameter(mm)

    35

    42

    42

    52

    63

    63

    95

    95

    Length(mm)

    120

    145

    160or190

    180

    180

    200

    200

    200

    Weight

    0.45

    0.7

    0.75

    1.4

    1.7

    1.9

    6.4

    6.4



    Machined steel coupling middle stop





    Drill Bit





    R25N

    R32N

    R32S

    R38N

    R51L

    R51N

    T76N

    T76S

    diameter(mm)

    41,51

    51,76,90

    90,100,110,115,130

    130,150,160,180,200

    Hardened cross bit

    (EX)

    Hardened cross bit for loose to medium dense condition with small boulders.

    Tungsten cross bit

    (EXX)

    TC cross bit for soft to medium rock for mations

    Hardened button bit

    (ES)

    Hardened buuton bit for unconsolidated rock with boulders.

    Tungsten carbon button bit

    (ESS)

    Button bit with TC inserts for medium rock for formations.

    Hardened arch bit

    (EC)

    Hardened drill bit with optimized geometry for unconsoliddated soil

    with small boulders.

    Tungsten carbon arch bit

    (ECC)

    TC drill bit with optimized geometry for soft to medium rock formations.

    Hardened drop center bit

    (EY)

    Hardened cross bit for loose to medium dense ground conditions

    TC drop center bit

    (EY)

    TC drill bit for soft to medium rock formations.

    Casting clay bit

    (EW)

    Casting clay bit with optimized geometry for very soft to soft caly.

     Machined steel bit or Casring steel bit





    Anchor Nut





    R25N

    R32N

    R32S

    R38N

    R51L

    R51N

    T76N

    T76S

    Key size(mm)

    41

    46

    46

    50

    75

    75

    100

    100

    Length(mm)

    135

    45

    45

    55

    70

    70

    80

    80

    Weight(kg/pc)

    0.25

    0.35

    0.35

    0.5

    1.55

    1.55

    3.6

    3.6



    Machined steel nut or casting steel nut





    T-Thread Anchor Bolt Technial Data



    Bar Type

    Outside Diameter

    (mm)

    Inside Diameter

    (mm)

    Cross section

    (mm2)

    Ultimate Load

     KN

    Yield Point

    KN

    Weight

    (kg/m)

    Thread Left/

    Right Hand

    30/11

    30

    11

    446

    320

    260

    3.3

    Lift or right

    30/14

    30

    14

    395

    260

    220

    2.9

    Lift or right

    30/16

    30

    16

    382

    220

    180

    2.7

    Lift or right

    40/16

    40

    16

    879

    660

    525

    7.0

    Lift or right

    40/20

    40

    20

    726

    539

    430

    5.6

    Lift or right

    52/26

    52

    26

    1337

    929

    730

    10.0

    Lift or right

    73/53

    73

    53

    1160

    1630

    970

    12.3

    Lift or right

    73/56

    73

    56

    1094

    1414

    785

    11.1

    Lift or right

    73/45

    73

    45

    2265

    1630

    1180

    17.8

    Lift or right



    R38N SDA Self Drilling Anchors Alloy Steel for Slope StabilizationR38N SDA Self Drilling Anchors Alloy Steel for Slope Stabilization
