| Place of Origin: | Shan Dong China(Mainland) |
| Brand Name: | MIROC |
| Certification: | ISO9001 |
| Model Number: | Rock drilling tools button bits |
| Minimum Order Quantity: | 150 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton / Wooden Box or Based on Customers |
| Delivery Time: | 1-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 8000 pieces per month |
| Material: | 40CrNiMoV Carbide | Color: | Green / Red / Golden |
|---|---|---|---|
| Process: | Forging | Advantages: | OEM. |
| Use: | Mining , Tunneling And Construction | Type: | Drilling Machines |
| High Light: | stone drilling tools,mining drilling tools |
||

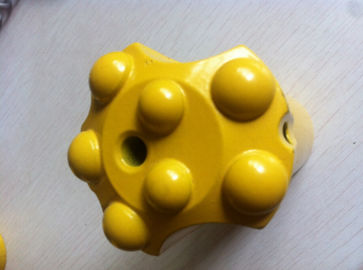

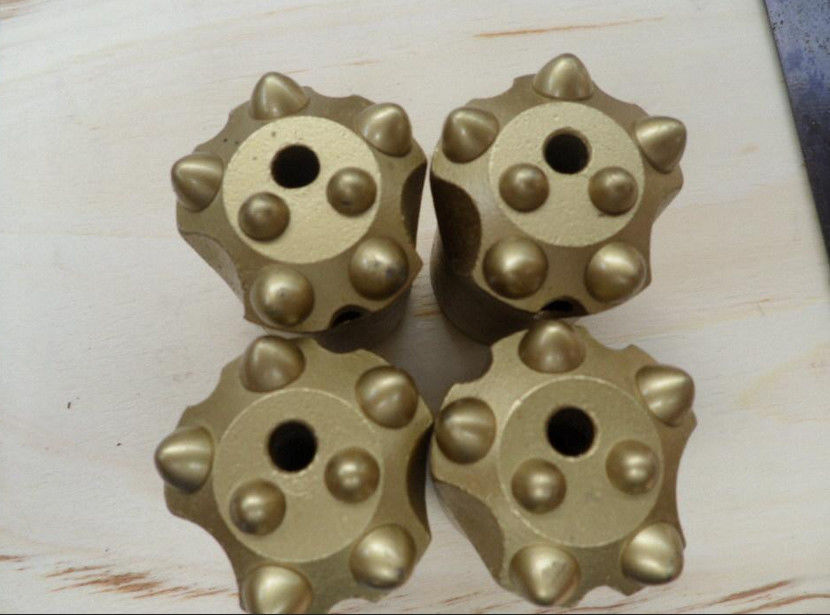

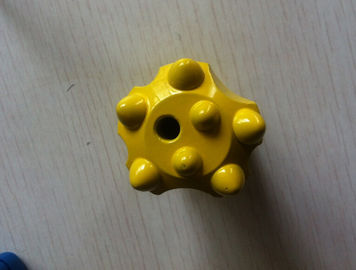

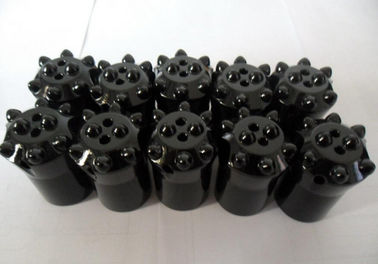

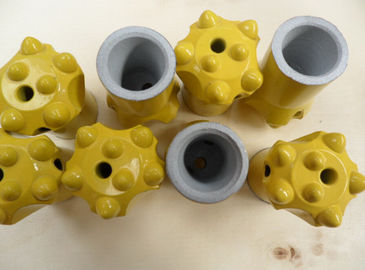

1 1/4" Rock Drilling Tools , Tapered Tungsten Carbide Button Bits
our dominant drill bits are chisel bits, cross bits, buttons bits, DTH bits
We are a professional company which is specialized in making and researching on drilling equipments as well, and our dominant products are chisel bits, cross bits, buttons bits, DTH bits with high, medium and low air pressure, symmetric drilling tools, eccentric drilling tools, standardized API system casings, bit shanks and casing tubes which are fit for hydraulic drilling equipments.
Mainly Products
Thread Drill Bits---Diameter: 51mm to 127mm
Thread Type---R22,R25,R28,R32,R38,T38,T45,T51
Face Shape---Plate, Concave, Convex.
Bit Shank & Coupling sleeve---R22,R25,R28,R32,R38,T38,T45,T51
Drill Rod
Steel Drill Rod---H19/H22, Length: 0.5M to 6.0M.
Thread Rod---R25,R28,R32,R38,T38,T45,T51.
Integral Drill Rod---H19/H22, Diameter---20mm - 42mm.
High grade tungsten carbide inserts
Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC
Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered button bits for faster drilling penetration rate. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.
• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry
| Tapered Button Bit , 7 ° , 11° , 12° | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 32 | 1x8 | 3x8 | 1 | 1 | 0.24 |
| 2 | 33 | 2x7 | 5x7 | 2 | 1 | 0.26 |
| 3 | 34 | 2x7 | 4x7 | 1 | 1 | 0.29 |
| 4 | 35 | 2x7 | 5x8 | 1 | 1 | 0.33 |
| 5 | 36 | 2x7 | 5x8 | 1 | 1 | 0.37 |
| 6 | 38 | 1x8 | 3x9 | 1 | 1 | 0.37 |
| 7 | 40 | 1x8 | 3x9 | 1 | 1 | 0.38 |
| 8 | 41 | 2x7 | 5x9 | 1 | 1 | 0.42 |
| 9 | 42 | 2x8 | 5x9 | 1 | 1 | 0.43 |
| Chisel Bit, 7 ° , 11° , 12° | |||||
| Length (mm) | Chisel Size (H x W) mm | Weight (Kg) | |||
| 1 | 26 | 10x7 | 0.17 | ||
| 2 | 28 | 10x7 | 0.18 | ||
| 3 | 30 | 13.5x8 | 0.22 | ||
| 4 | 32 | 13.5x8 | 0.24 | ||
| 5 | 34 | 13.5x8 | 0.27 | ||
| 6 | 36 | 13.5x8 | 0.3 | ||
| 7 | 38 | 13.5x8 | 0.33 | ||
| 8 | 38 | 15x9 | 0.33 | ||
| 9 | 40 | 3.5x9.2 | 0.38 | ||
| 10 | 40 | 15x9.8 | 0.38 | ||
| 11 | 42 | 13.5x9.2 | 0.41 | ||
| 12 | 42 | 15x9.8 | 0.41 | ||
| 13 | 43 | 13.5x9.2 | 0.42 | ||

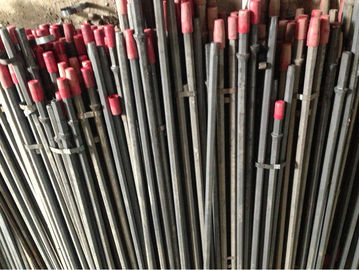

| Hex Tapered Rod , 7 ° , 11° , 12° | |||||
| Length (mm) | Weight (Kg) | PN. | |||
| 1 | 600 | 1.93 | 4148300179 | ||
| 2 | 800 | 2.54 | 4148300180 | ||
| 3 | 1000 | 3.15 | 4148300181 | ||
| 4 | 1200 | 3.76 | 4148300182 | ||
| 5 | 1500 | 4.68 | 4148300183 | ||
| 6 | 1600 | 4.98 | 4148300184 | ||
| 7 | 1800 | 5.59 | 4148300185 | ||
| 8 | 2000 | 6.2 | 4148300186 | ||
| 9 | 2200 | 6.81 | 4148300187 | ||
| 10 | 2300 | 7.12 | 4148300188 | ||
| 11 | 2400 | 7.42 | 4148300189 | ||
| 12 | 2500 | 7.73 | 4148300190 | ||
| 13 | 2600 | 8.03 | 4148300191 | ||
| 14 | 3000 | 9.25 | 4148300192 | ||
| 15 | 3500 | 10.78 | 4148300193 | ||
| 16 | 4000 | 12.3 | 4148300194 | ||
| 17 | 4500 | 13.83 | 4148300195 | ||
| 18 | 5000 | 15.35 | 4148300196 | ||
| 19 | 5500 | 16.88 | 4148300197 | ||
| 20 | 6000 | 18.3 | 4148300198 | ||
