| Place of Origin: | Shan Dong China(Mainland) |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | QL60 / DHD360 / QL60 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 1-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 pieces per month |
| Type: | DTH Hammer Bits | Material: | Tungsten Carbide And High Strength Alloy Steel |
|---|---|---|---|
| Processing: | Forging | Series: | M60, QL60, SD6 |
| Color: | Based On Need | Advantages: | Lower Price |
| High Light: | carbide tipped drill bits,dth button bits |
||

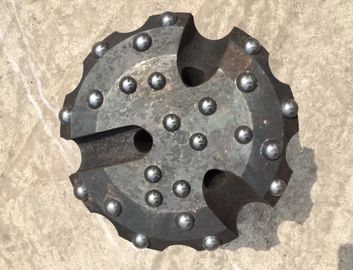

Spherical Buttons Concave Face DTH Drill Bits SD6 / DHD360 Down The Hole Tools
Specification
Dth rock drill bits are in different sizes ranging from 3" to 12".
Dth rock drill bits are available in valveless model and is competent to operate in harsh conditions
DTH rock drill bits have four kinds of button type
1. Spherical button : good wearing resistance, suited to hard ground, abrasive to very abrasive.
2. Parabolic button : fast penetration,suited to medium to hard rock,suitable for the mildly abrasive ground.
3. Conical button : fast penetration, suited for smaller diameter bits, suited for all non-abrasive ground types.
4. Ballistic button : fast penetration,suited to soft rock, suitable for non abrasive ground
Applications of DTH Bit
• Underground mining
• Tunneling
• Quarry benching operations
Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
Technical manual
| 6" High Pressure DTH Bits | |||||
| Type | Diameter(mm) | Buttons | Flushing Holes | ||
| Front(No*mm) | Gauge(No.*mm) | ||||
| 1 |
DHD360 / SD6 / QL60 / M60 |
152 | 4*16, 4*16 | 8*18 | 2 |
| 2 | 155 | 4*16, 4*16 | 8*18 | 2 | |
| 3 | 159 | 4*16, 4*16 | 8*18 | 2 | |
| 4 | 165 | 4*16, 4*16 | 8*18 | 2 | |
| 5 | 172 | 4*18, 4*18 | 8*18 | 2 | |
| 6 | 178 | 4*18, 4*18 | 8*18 | 2 | |
| 7 | 190 | 3*18, 5*18 | 9*18 | 3 | |
| 8 | 203 | 3*18, 6*18 | 9*18 | 3 | |
| 8" High Pressure DTH Bits | |||||
| Type | Diameter(mm) | Buttons | Flushing Holes | ||
| Front(No*mm) | Gauge(No.*mm) | ||||
| 1 |
DHD380 / SD8 / QL80 / M80 |
200 | 6*18, 6*18 | 9*18 | 3 |
| 2 | 203 | 6*18, 6*18 | 9*18 | 3 | |
| 3 | 216 | 6*18, 6*18 | 9*18 | 3 | |
| 4 | 219 | 6*18, 6*18 | 9*18 | 3 | |
| 5 | 222 | 6*18, 9*18 | 9*18 | 3 | |
| 6 | 226 | 3*18, 5*18 | 12*18, 6*18 | 3 | |
| 7 | 229 | 3*18, 5*18 | 12*18, 6*18 | 3 | |
| 8 | 241 | 3*18, 5*18 | 12*18, 6*18 | 3 | |
| 9 | 251 | 3*18, 6*18 | 12*18, 6*18 | 3 | |
| 10 | 254 | 3*18, 7*18 | 12*18, 6*18 | 3 | |
| 11 | 270 | 3*18, 8*18 | 12*18, 6*18 | 3 | |
| 12 | 305 | 6*18, 8*18 | 12*18, 9*18 | 3 | |
Company Profile
KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:
