| Main Dimensions: | 6000*1330*2037mm(L*W*H) | Volume Capacity: | 1 Cubic Meter |
|---|---|---|---|
| Tramming Capacity: | 2000kg | Engine: | DEUTZ F4L914 Diesel Engine |
| Hydrostatic Pump: | SAUER DANFOSS PV22 | Hydrostatic Motor: | SAUER DANFOSS MV23 |
| Axles: | XUZHOU-JINHE | Tires: | 10.00-20.00 L5-S |
| High Light: | underground lhd machines,lhd load haul dump |
||

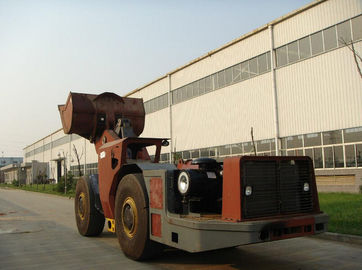

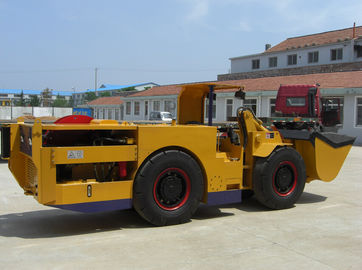

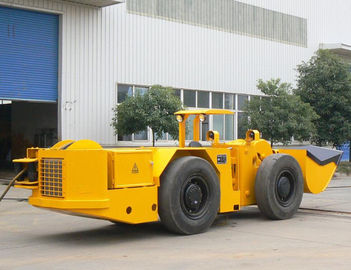

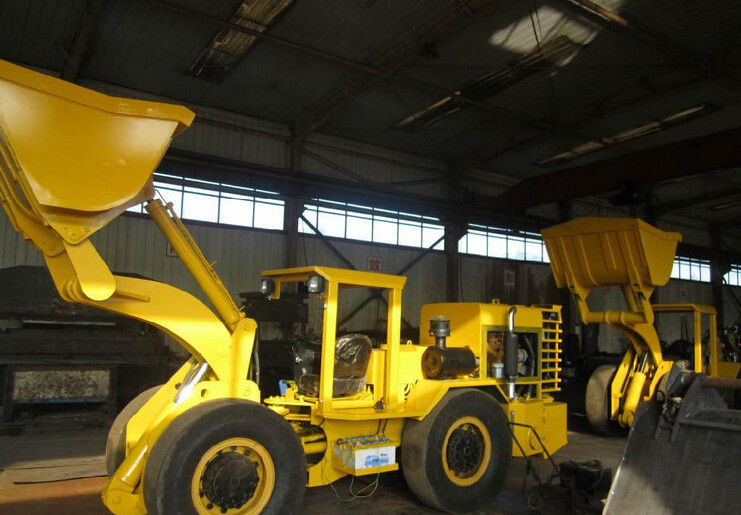

RL-1 Load Haul Dump Underground Mining Trucks with Diesel Engine for Tunnel
The RL-1 Load-Haul-Dump Machine is ideal for small scale rock excavation operations. The
small footprint of the machine is possible thanks to the use of a hydrostatic drive system. It
has high proven reliability, and straight-forward mechanical components that are easy to
maintain.
Color: Based on Customer requirements
Type: RL-4 Load-Haul-Dump Machine
Applications
Underground Mining
Hydropower Tunneling
Roadway/Railway Tunneling
Competitive Advantage
Major components from industry respected suppliers
Simple yet very robust design
Very competitive pricing compared to its counterparts coming from well-known brands
Competitive delivery
Specification
| Load-Haul-Dump Machine | ||||||
| Type |
Main Dimensions (L*W*H) |
Volume Capacity |
Tramming Capacity |
Engine | Axles | Tires |
| RL-1 | 6000*1330* 2037mm |
1m3 | 2000 kg |
DEUTZ BF6L914 diesel engine |
XUZHOU-JINHE |
10.00-20.00 L5-S |
| RL-2 | 6875*1770* 1950 mm |
2m3 | 4000 kg |
DEUTZ F6L912W diesel engine |
MERITOR CY-2J |
12.00-24.00 L5-S |
| RL-3 | 8868*2112* 2275mm |
3m3 | 6000 kg |
DEUTZ BF6L914C diesel engine |
DANA 16D |
17.50-25.00 L5-S |
| RL-4 | 9690*2550* 2395mm |
4m3 | 8000 kg | CUMMINS QSL9C250 diesel engine | KESSLER D91 |
18.00-25.00 L5-S |
| Support Equipment | ||||||
| Type |
Main Dimensions (L*W*H) |
Turning Radius |
Load Capacity |
Engine | Torque Converter | Axles |
|
RS-3SL Scissors Lift |
6860*1800* 2000mm |
Inside 3800 mm Outside5780mm |
3000 kg |
DEUTZ F6L912W diesel engine |
DANA 1201FT20321 |
10.00-20.00 Mine Service Tires |
|
RS-3CT Crew Transporter |
6860*1800* 2000mm |
Inside3800mm Outside5780mm |
3000 kg |
DEUTZ F6L912W diesel engine |
DANA 1201FT20321 |
DANA 112 |
|
MG-64A-SB Shotcrete Batcher |
9729*2082* 2591mm |
Inside 4318 mm Outside7061mm |
23m3/hour |
Mercedes-Benz OM 904 LA diesel engine |
DANA HR32000 |
CARRARO 28.60 |
|
MT30M Low Profile Transmixer |
12100*3374* 3500 mm |
Inside 5700mm Outside9860mm |
9.17m3 |
CUMMINS QSX15 diesel engine |
DANA CL8000 |
KESSLER D91 |
