Excavation Equipment RT-15 Low Profile Dump Truck Volume 7 Cubic Meter

Excavation Equipment RT-15 Low Profile Dump Truck Volume 7 Cubic Meter

    • Excavation Equipment RT-15 Low Profile Dump Truck Volume 7 Cubic Meter
    • Excavation Equipment RT-15 Low Profile Dump Truck Volume 7 Cubic Meter
    • Excavation Equipment RT-15 Low Profile Dump Truck Volume 7 Cubic Meter
    • Excavation Equipment RT-15 Low Profile Dump Truck Volume 7 Cubic Meter
  • Excavation Equipment RT-15 Low Profile Dump Truck Volume 7 Cubic Meter

    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Certification: ISO / GB
    Model Number: RT-15 Low Profile Dump Truck

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: Based on requirements
    Delivery Time: 1-3 Months
    Payment Terms: T/T or L/C
    Supply Ability: 5 Units per month
    Contact Now
    Detailed Product Description
    Main Dimensions: 7956mm*1804mm*2150mm(L*W*H) Volume Capacity: 7.5 M3
    Tramming Capacity: 15000 Kg Engine: DEUTZ Diesel Engine
    Torque Converter: DANA C273 Transmission: DANA R32000
    Alex: DANA 16D Tires: 14.00-24.00 E3

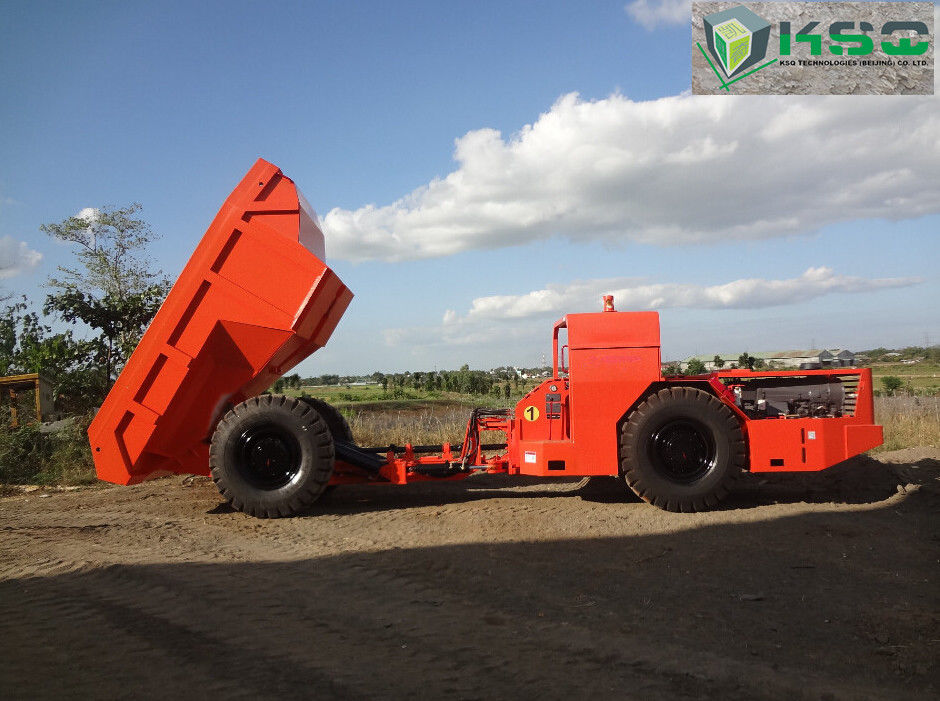

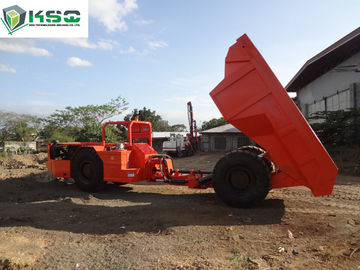

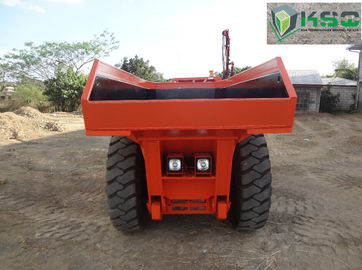

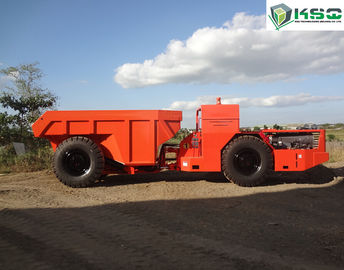

    Excavation Equipment RT-15 Low Profile Dump Truck Volume 7 Cubic Meter





    The RT-15 Low Profile Dump Truck is ideal for medium size rock excavation operations that
    require high haulage productivity.  Works perfectly with the RL-2 LHD Machine. The RT-15
    maintains the simple yet very robust design tenets of what a mining equipment should be
    - it has a small footprint and turning radius suitable for small envelope sizes, high proven
    reliability, and straight-forward mechanical components that are easy to maintain.



    Applications

    Underground Mining

    Hydropower Tunneling

    Roadway/Railway Tunneling


    Competitive Advantage

    Major components from industry respected suppliers

    Simple yet very robust design

    Very competitive pricing compared to its counterparts coming from well-known brands

    Competitive delivery



    Detail Specification

    Main Dimensions :
              Length 7956 mm
              Width 1804 mm
              Height 2150 mm
    Turning Radius :
             Inside 3600 mm
             Outside 6057 mm
    Volume Capacity :  7.5m3
    Tramming Capacity : 15000 kg
    Engine :  DEUTZ BF6L914C Turbocharged with charge air cooler, air cooled diesel engine
    Torque Converter
    : DANA C273
    Transmission : DANA R32000
    Axles :
    DANA 16D
    Tires : 14.00-24.00 E3



     Low Profile Dump Truck
    Type

    Main

    Dimensions

    (L*W*H)

    Volume

    Capacity

    Tramming

    Capacity

    Engine

    Torque

    Converter

    Transmission Axles
    RT-12 7956*1804
    *2150mm
    6m3 12000 kg

    DEUTZ BF6L914

    diesel engine


    DANA C273

    DANA

    R24000

    MERITOR

    CY-2J

    RT-15 7956*1804*
    2150mm
    7.5m3 15000 kg

    DEUTZ BF6L914C

    diesel engine

    DANA C273

    DANA

    R32000

    DANA

    16D

    RT-20 9046*2280*
    2325mm
    10m3 20000 kg

    DEUTZ BF6M1013FC

    diesel engine

    DANA CL5000

    DANA

    R36000

    DANA

    19D

    MT30D 10150*2700*
    2600mm
    16m3 33000 kg

    CUMMINS QSX15 diesel engine

    DANA CL8000

    DANA

    6000

    KESSLER

    D91



    Excavation Equipment RT-15 Low Profile Dump Truck Volume 7 Cubic Meter





    Support Equipment
    Type

    Main

    Dimensions

    (L*W*H)

    Turning

    Radius

    Load

    Capacity

    Engine

    Torque

    Converter

    Axles

    RS-3SL

    Scissors Lift

    6860*1800*
    2000mm

    Inside 3800 mm

    Outside5780mm

    3000  kg

    DEUTZ

    F6L912W

    diesel engine

    DANA

    1201FT20321

    10.00-20.00

    Mine Service

    Tires

    RS-3CT

    Crew

    Transporter

    6860*1800*
    2000mm
    Inside3800mm
    Outside5780mm
    3000 kg

    DEUTZ

    F6L912W

    diesel engine


    DANA

    1201FT20321

    DANA 112

    MG-64A-SB

    Shotcrete

    Batcher

    9729*2082*
    2591mm

    Inside 4318 mm

    Outside7061mm

    23m3/hour

    Mercedes-Benz

    OM 904 LA

    diesel engine


    DANA

    HR32000

    CARRARO

    28.60

    MT30M

    Low

    Profile

    Transmixer

    12100*3374*

    3500 mm

    Inside 5700mm

    Outside9860mm

    9.17m3

    CUMMINS

    QSX15

    diesel engine

    DANA

    CL8000

    KESSLER

    D91


    Excavation Equipment RT-15 Low Profile Dump Truck Volume 7 Cubic MeterExcavation Equipment RT-15 Low Profile Dump Truck Volume 7 Cubic Meter



    Company Profile

    ROXMECH®, by KSQ Technologies (Beijing) Co. Ltd., is a product line consisting of specialized
    equipment for use in underground mining and tunneling works, such as Load-Haul-Dump
    Machines (LHDs), Low Profile Trucks (LPTs), Scissors Lift Truck, Mobile Batching Equipment,
    Service Vehicles, and Personnel Carriers.
    ROXMECH® was developed through years of exchanges and hands-on work with mining
    operations in China and some parts of the world where mining is the lifeblood of the econ-
    omy. In every product we build, our reputation and experience can be seen. That’s the rea-
    son to choose us if you are looking to improve your productivity and reduce costs.
    ROXMECH® Rock Excavation and Service/Support Equipment include:



    RL-1 Load-Haul-Dump Machine
    RL-2 Load-Haul-Dump Machine
    RL-3 Load-Haul Dump Machine
    RL-4 Load-Haul Dump Machine
    RT-12 Low Profile Dump Truck
    RT-15 Low Profile Dump Truck
    RT-20 Low Profile Dump Truck
    MT30D Low Profile Dump Truck
    RS-3 Service Vehicle Series
    MG-64A-SB Shotcrete Batcher
    MT30M Low Profile Transmixer



    Contact us for more information on our products and services.
