Hydraulic Mining Load Haul Dump Truck Articulated Underground For Rock Excavation

Hydraulic Mining Load Haul Dump Truck Articulated Underground For Rock Excavation

    • Hydraulic Mining Load Haul Dump Truck Articulated Underground For Rock Excavation
    • Hydraulic Mining Load Haul Dump Truck Articulated Underground For Rock Excavation
  • Hydraulic Mining Load Haul Dump Truck Articulated Underground For Rock Excavation

    Product Details:

    Place of Origin: AnHui,China
    Brand Name: MIROC
    Certification: CE
    Model Number: Load Haul Dump

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: negotiation
    Packaging Details: Nude Packed or Based on Customers
    Delivery Time: 30-60 Days after receiving payment and order confirmation
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 40 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Type: Load Haul Dump Color: Yellow
    Volume Capacity: 1m3 Tramming Capacity: 2000KG
    After-sales Service Provided: Engineers Available To Service Machinery Overseas Engine: DEUTZ F4L914W Air Cooled Diesel Engine



    Hydraulic Mining Load Haul Dump Truck Articulated Underground For Rock Excavation

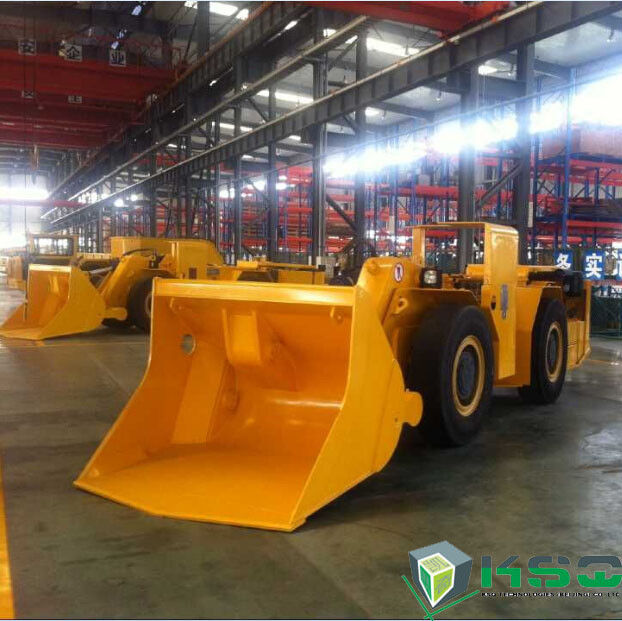

    The RL-1 Load Haul Dump Machine is ideal for small scale rock excavation operations. The small footprint of the machine is possible thanks to the use of a hydrostatic drive system. It has high prove reliability,and straight-forward mechanical components that are easy to maintain.



    Main Dimensions

    Length

    6000mm(haul position)

    Width

    1330mm

    Height

    2037mm

    Turning Radius

    Inside

    2533mm

    Outside

    4260mm

    Volume Capacity



    1m3

    Tramming Capacity



    2000kg

    Engine



    DEUTZ F4L914W air cooled diesel engine

    Hydrostatic Pump



    SAUER DANFOSS PV22

    Hydrostatic Motor



    SAUER DANFOSS MV23

    Axles



    XUZHOU-JINHE

    Tires



    10.00-20.00 L5-S

    Hydraulic Mining Load Haul Dump Truck Articulated Underground For Rock Excavation



    Applications of Load Haul Dump

    Underground Mining
    Hydropower Tunneling
    Roadway/Railway Tunneling


    Our Services


    ROXMECH® Rock Excavation and Service/Support Equipment include:
    RL-1 Load-Haul-Dump Machine
    RL-2 Load-Haul-Dump Machine
    RL-3 Load-Haul Dump Machine
    RL-4 Load-Haul Dump Machine
    RT-12 Low Profile Dump Truck
    RT-15 Low Profile Dump Truck
    RT-20 Low Profile Dump Truck
    MT30D Low Profile Dump Truck
    RS-3 Service Vehicle Series

    MG-64A-SB Shotcrete Batcher
    MT30M Low Profile Transmixer



    Company Information


    ROXMECH®, by KSQ Technologies (Beijing) Co. Ltd., is a product line consisting of specialized
    equipment for use in underground mining and tunneling works, such as Load-Haul-Dump
    Machines (LHDs), Low Profile Trucks (LPTs), Scissors Lift Truck, Mobile Batching Equipment,
    Service Vehicles, and Personnel Carriers.
    ROXMECH® was developed through years of exchanges and hands-on work with mining
    operations in China and some parts of the world where mining is the lifeblood of the econ-
    omy. In every product we build, our reputation and experience can be seen. That’s the rea-
    son to choose us if you are looking to improve your productivity and reduce costs.
