Taper 7 Degree Chisel Bit With Diameter 32mm 34mm 36mm 38mm 40mm 42mm

Taper 7 Degree Chisel Bit With Diameter 32mm 34mm 36mm 38mm 40mm 42mm

    • Taper 7 Degree Chisel Bit With Diameter 32mm 34mm 36mm 38mm 40mm 42mm
    • Taper 7 Degree Chisel Bit With Diameter 32mm 34mm 36mm 38mm 40mm 42mm
    • Taper 7 Degree Chisel Bit With Diameter 32mm 34mm 36mm 38mm 40mm 42mm
    • Taper 7 Degree Chisel Bit With Diameter 32mm 34mm 36mm 38mm 40mm 42mm
  • Taper 7 Degree Chisel Bit With Diameter 32mm 34mm 36mm 38mm 40mm 42mm

    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Certification: ISO9001
    Model Number: Chisel Bit

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 Pieces
    Price: negotiation
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 25 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 20000 pieces per month
    Contact Now
    Detailed Product Description
    Taper: 7 Degree Diameter: 32-42mm
    Color: Customized Material: Carbon Steel

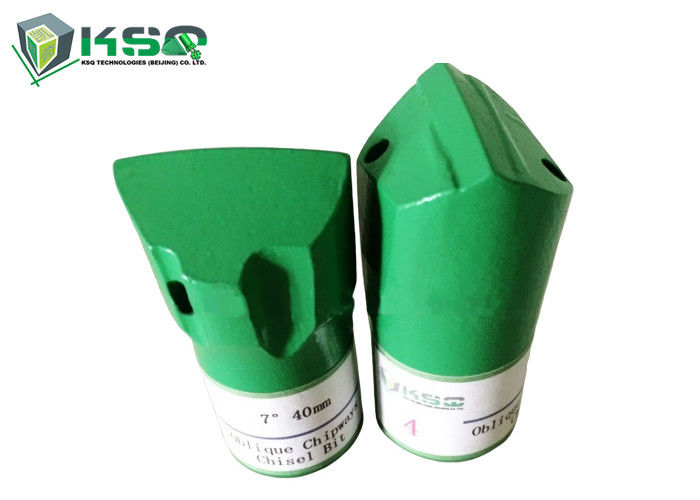

    Taper 7 Degree Chisel Bit With Diameter 32mm 34mm 36mm 38mm 40mm 42mm



    Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered cross type bits if the goal is to minimize hole deviation in small hole range drilling. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning. Used in drifting and tunneling.



    Basic Information:



                                    Taper drill bit- Taper 7° Taper, 11°, Taper 12°



    Product Name:

    mining tungsten carbides  taper button rock drill tool bit

    Types

    Tapered chisel bits, Tapered cross bits, Tapered button bits

    Application::

    Tapered drill bits are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling

    Feature:

    Tapered drill bits connect tapered drill steel of rock drill for drilling holes

    Material:

    High quality carbide and high quality steel

    MOQ:

    No requirement for testing and trial order

    We can design and manufature according to your requirment of diameter, number air holes and carbide button shape.

    Types of drill bits

    Diameter          (mm)

    Taper Angle (Degree)

    Length       (mm)

    Weight (kg)

    Tapered chisel bits

    20/22/28/30/32/34/36/38/40

    4 degree/ 6 degree/ 7 degree/ 11 degree/ 12 degree

    50/55/60/71/80

    0.15 - 0.45

    Tapered cross bits

    24/26/28/30/32/33/34/35/36/3/38/40/42/48/50/55

    50/55/60/71/80

    0.18 - 0.7

    Tapered button bits

    28/29/30/32/33/34/35/36/37/38/40/41/42/45

    50/55/60/71/80

    0.2 - 0.5



    drill bit | broca | broca | foret | Bohrer | matkap ucu | punta da trapano | boorpunt | jesie | boret drill bit | broca | broca | foret | Bohrer | matkap ucu | punta da trapano | boorpunt | jesie | boret



    TAPERED ROCK DRILLING TOOLS - 7° Chisel Bit



    Bit Dia. For class of rock Buttons Taper Weight Part Number
    mm inch HxW kg
    26 1    10~14 10x7 0.17 4148300075
    28 1 1/9 10~14 10x7 0.18 4148300076
    30 1 1/6 8~12 13.5x8 0.22 4148300077
    30 1 1/6 10~14 13.5x8 0.22 4148300078
    32 1 1/4 8~12 13.5x8 0.24 4148300079
    32 1 1/4 10~14 13.5x8 0.24 4148300080
    34 1 1/3 8~12 13.5x8 0.27 4148300081
    34 1 1/3 10~14 13.5x8 0.27 4148300082
    36 1 3/7 8~12 13.5x8 0.3 4148300083
    36 1 3/7 10~14 13.5 x 8 0.3 4148300084
    38 1 1/2 8~12 13.5x8 0.33 4148300085
    38 1 1/2 10~14 13.5x8 0.33 4148300086
    38 1 1/2 8~12 15x9 0.33 4148300087
    38 1 1/2 10~14 15x9 0.33 4148300088
    40 1 4/7 8~12 13.5x9.2 0.38 4148300089
    40 1 4/7 10~14 13.5x9.2 0.38 4148300090
    40 1 4/7 14~16 13.5x9.2 0.38 4148300091
    40 1 4/7 16~18 15x9.8 0.38 4148300092
    40 1 4/7 8~12 15 x 9.8 0.38 4148300093
    40 1 4/7 10~14 15x9.8 0.38 4148300094
    40 1 4/7 14~16 15x9.8 0.38 4148300095
    40 1 4/7 16~18 15x9.8 0.38 4148300096
    42 1 2/3 8~12 13.5x9.2 0.41 4148300097
    42 1 2/3 10~14 13.5x9.2 0.41 4148300098
    42 1 2/3 14~16 13.5x9.2 0.41 4148300099
    42 1 2/3 16~18 13.5x9.2 0.41 4148300100
    42 1 2/3 8~12 15x9.8 0.41 4148300101
    42 1 2/3 10~14 15 x 9.8 0.41 4148300102
    42 1 2/3 10~14 15x9.8 0.41 4148300103
    42 1 2/3 16~18 15x9.8 0.41 4148300104
    43 1 2/3 8~12 13.5x9.2 0.42 4148300105
    43 1 2/3 10~14 13.5x9.2 0.42 4148300106
    43 1 2/3 8~12 15x9.8 0.42 4148300107
    43 1 2/3 10~14 15x9.8 0.42 4148300108



    Pictures

    Taper 7 Degree Chisel Bit With Diameter 32mm 34mm 36mm 38mm 40mm 42mm

    Taper 7 Degree Chisel Bit With Diameter 32mm 34mm 36mm 38mm 40mm 42mm



    Related Rock Drilling Tools



    (1) Integral Drill Rod– chisel bit integral rod and plug hole integral drill steel,

         Shank H19 x 108mm and H22 108mm.


    (2) Tapered Rock Drill Tools - chisel bit,  cross bit, button bit, drill rod of taper 7, 11, 12 degree


    (3) Threaded Rock Drill Tools - button bit, retrac button bit, drop center button bit, dome bit, reaming     bit,extension rod, MF-Rod, Hex rod, coupling sleeve, crossover coupling of thread R25, R28, R32, R38, T38, T45, T51, ST58, ST68.


    (4) Shank Adapters (Striking Bars) - equivalent to Atlas Copco, Sandvik, Furukawa, Gardner Genver, Ingersoll Rand etc.


    (5) Down-the-hole (DTH) Bits& Hammers - 3'', 4'', 5'', 6'', 8'' hammer and DTH button bit (diameter 80mm - 305mm)



    Other products: Tricone bits, PDC bits, self- drilling hollow anchor bar etc.


     Taper 7 Degree Chisel Bit With Diameter 32mm 34mm 36mm 38mm 40mm 42mm
