| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | Chisel Bit |
| Minimum Order Quantity: | 1 Pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 25 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000 pieces per month |
| Material: | Carbied | Taper: | 7 Degree |
|---|---|---|---|
| Dia: | 38mm-80mm | ||
| High Light: | tungsten carbide drill bit,mining drilling bits |
||
7 Degree Flat Chipways Taper Chisel Bit Apply To Variety Rock Formations
Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered cross type bits if the goal is to minimize hole deviation in small hole range drilling. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning. Used in drifting and tunneling.
Basic Information:
Taper drill bit- Taper 7° Taper, 11°, Taper 12°
|
Product Name: |
mining tungsten carbides taper button rock drill tool bit |
|||
|
Types |
Tapered chisel bits, Tapered cross bits, Tapered button bits |
|||
|
Application:: |
Tapered drill bits are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling |
|||
|
Feature: |
Tapered drill bits connect tapered drill steel of rock drill for drilling holes |
|||
|
Material: |
High quality carbide and high quality steel |
|||
|
MOQ: |
No requirement for testing and trial order |
|||
|
We can design and manufature according to your requirment of diameter, number air holes and carbide button shape. |
||||
|
Types of drill bits |
Diameter (mm) |
Taper Angle (Degree) |
Length (mm) |
Weight (kg) |
|
Tapered chisel bits |
20/22/28/30/32/34/36/38/40 |
4 degree/ 6 degree/ 7 degree/ 11 degree/ 12 degree |
50/55/60/71/80 |
0.15 - 0.45 |
|
Tapered cross bits |
24/26/28/30/32/33/34/35/36/3/38/40/42/48/50/55 |
50/55/60/71/80 |
0.18 - 0.7 |
|
|
Tapered button bits |
28/29/30/32/33/34/35/36/37/38/40/41/42/45 |
50/55/60/71/80 |
0.2 - 0.5 |
|
drill bit | broca | broca | foret | Bohrer | matkap ucu | punta da trapano | boorpunt | jesie | boret drill bit | broca | broca | foret | Bohrer | matkap ucu | punta da trapano | boorpunt | jesie | boret
Specification
TAPERED ROCK DRILLING TOOLS - 7° Flat chipways chisel bit
| 38 | 1 1/2 | 10~14 | 16x10 | 7º | 0.36 | 4148300123 |
| 40 | 1 4/7 | 10~14 | 16x10 | 7º | 0.38 | 4148300124 |
| 41 | 1 3/5 | 10~14 | 16x10 | 7º | 0.41 | 4148300125 |
| 42 | 1 2/3 | 10~14 | 16x10 | 7º | 0.43 | 4148300126 |
| 45 | 1 7/9 | 10~14 | 22x16x10 | 7º | 0.6 | 4148300127 |
| 46 | 1 4/5 | 10~14 | 22x16x10 | 7º | 0.61 | 4148300128 |
| 48 | 1 8/9 | 10~14 | 22x16x10 | 7º | 0.63 | 4148300129 |
| 50 | 2 | 10~14 | 22x16x10 | 7º | 0.65 | 4148300130 |
| 56 | 2 1/5 | 10~14 | 24x16x10 | 7º | 0.82 | 4148300131 |
| 60 | 2 1/3 | 10~14 | 26x16x10 | 7º | 0.91 | 4148300132 |
| 65 | 2 5/9 | 10~14 | 26x16x10 | 7º | 1.12 | 4148300133 |
| 80 | 3 1/7 | 10~14 | 36x16x10 | 7º | 1.4 | 4148300134 |

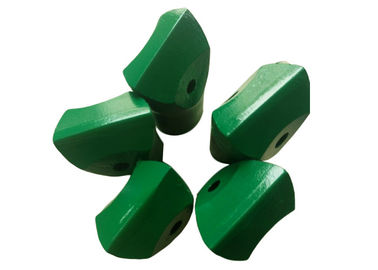

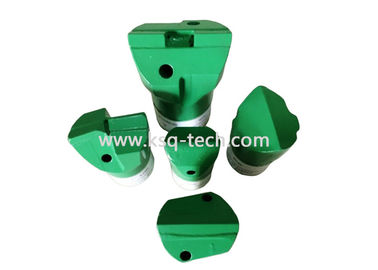

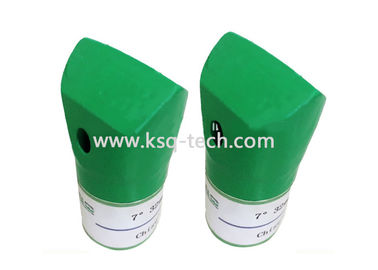

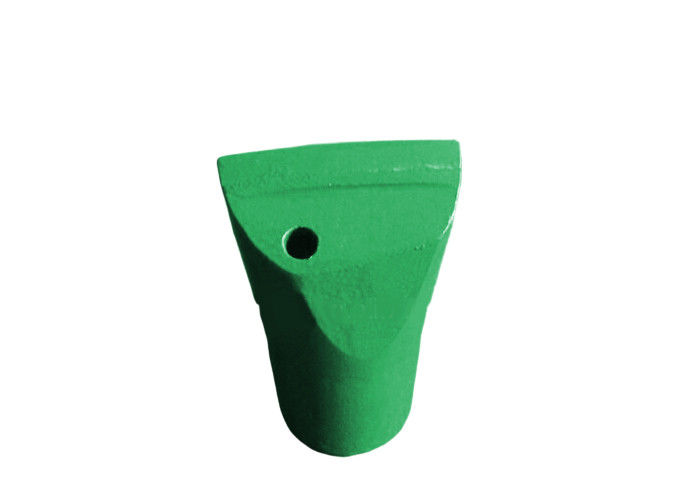

Pictures
Related Rock Drilling Tools
(1) Integral Drill Rod– chisel bit integral rod and plug hole integral drill steel,
Shank H19 x 108mm and H22 108mm.
(2) Tapered Rock Drill Tools - chisel bit, cross bit, button bit, drill rod of taper 7, 11, 12 degree
(3) Threaded Rock Drill Tools - button bit, retrac button bit, drop center button bit, dome bit, reaming bit,extension rod, MF-Rod, Hex rod, coupling sleeve, crossover coupling of thread R25, R28, R32, R38, T38, T45, T51, ST58, ST68.
(4) Shank Adapters (Striking Bars) - equivalent to Atlas Copco, , Furukawa, Gardner Genver, Ingersoll Rand etc.
(5) Down-the-hole (DTH) Bits& Hammers - 3'', 4'', 5'', 6'', 8'' hammer and DTH button bit (diameter 80mm - 305mm)
Other products: Tricone bits, PDC bits, self- drilling hollow anchor bar etc.
