RT - 20 Heavy Duty Dump Truck With DANA Axles For Roadway / Railway Tunneling Underground Mining dump truck

RT - 20 Heavy Duty Dump Truck With DANA Axles For Roadway / Railway Tunneling Underground Mining dump truck

RT - 20 Heavy Duty Dump Truck With DANA Axles For Roadway / Railway Tunneling Underground Mining dump truck
RT - 20 Heavy Duty Dump Truck With DANA Axles For Roadway / Railway Tunneling Underground Mining dump truck
RT - 20 Heavy Duty Dump Truck With DANA Axles For Roadway / Railway Tunneling Underground Mining dump truck
Product Details:
Place of Origin: China
Brand Name: ROXMECH
Certification: CE Certificate
Model Number: RT-20 Low Profile Dump Truck
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set Low Profile Dump Truck
Price: negotiation
Packaging Details: Nude Package or Based on Customer's Requirements
Delivery Time: 1-3 Months
Payment Terms: T/T or L/C
Supply Ability: 3 Units per month
Contact Now
Detailed Product Description
Length: 9046mm Tramming Capacity: 20000KG
Torque Converter: DANA CL5000 Volume Capacity: 10m³
High Light:

heavy duty Dump Truck

,

Underground Dump Truck

RT-20 Low Profile Dump Truck With DANA Axles



The RT-20 Low Profile Dump Truck is ideal for medium to large size rock excavation operations that require high haulage productivity. Work perfectly with the RL-3 LHD Machine. The RT-20 maintains the simple yet very robust design tenets of what a mining equipment should be - it has high proven reliability, and straight-forward mechanical components that are easy to maintain.

1. The engine adopts world-famous brands (DEUTZ ), air cooling and water cooling. The power of air-cooled engine is stronger at the same power, and its maintainability is stronger without maintenance. The water cooler has low noise and long life
2. The dual transmission system adopts the world famous brand DANA in the United States
3. The filling valve and foot brake valve of the braking system adopt American MICO, Italian SAFIM or American SUN
4. The main electrical components are Germany schneider products

Specification



RT- 20 Low Profile Dump Truck Main Dimensions
Length 9046mm
Width1804 2280mm
Height 2325mm
Turning Radius 5136mm(Inside)
8287mm(Outside)
Volume Capacity 10m³
Tramming Capacity 20000kg
Engine DEUTZ BF6M1013FC Turbocharged with charge aircooler, water cooled diesel engine
Torque Converter DANA CL5000
Transmission DANA R36000
Axles DANA 19D
Tires 16.00-25.00 E3



Applications

•  Underground Mining

•  Hydropower Tunneling

•  Roadway/Railway Tunneling

•  Can be utilized as a multi-role equipment with various attachments


Competitive Advantage

•  Major components from industry respected suppliers

•  Simple yet very robust design

•  Very competitive pricing compared to its counterparts coming from well-known brands

•  Competitive delivery

•  Engineers available to service machinery overseas

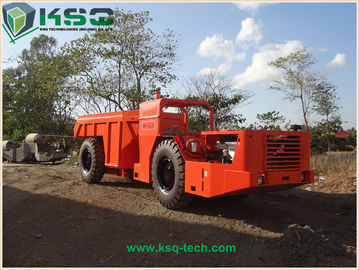

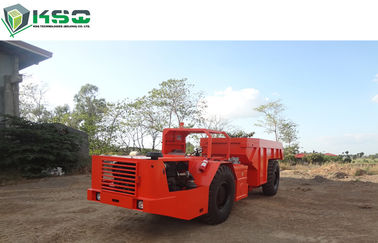

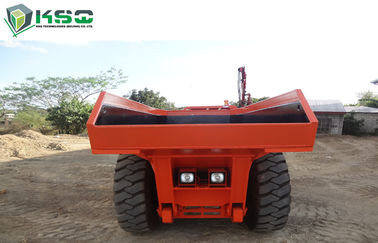

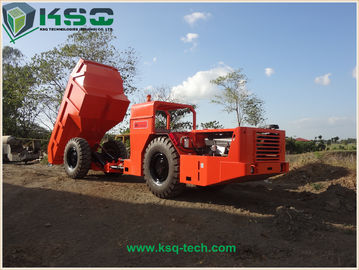

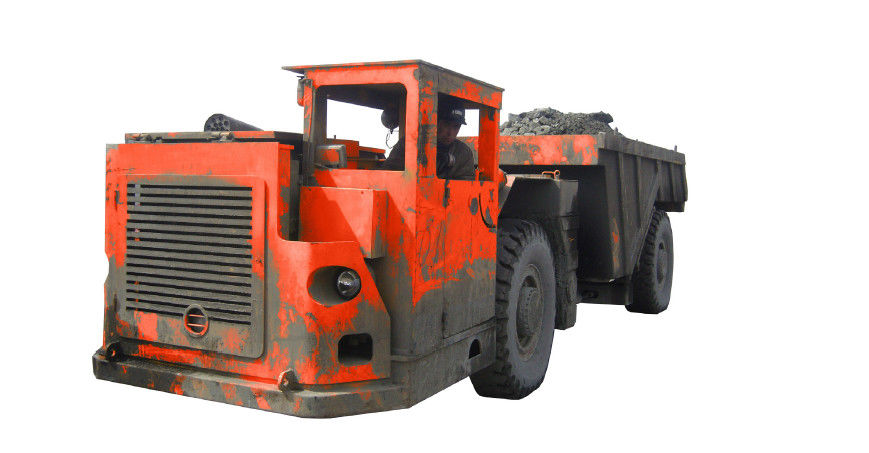

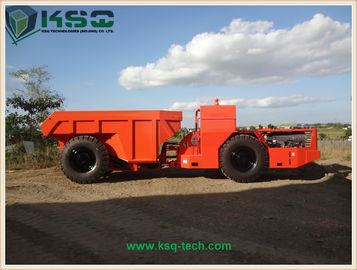

Machine Photos



RT - 20 Heavy Duty Dump Truck With DANA Axles For Roadway / Railway Tunneling Underground Mining dump truck 0RT - 20 Heavy Duty Dump Truck With DANA Axles For Roadway / Railway Tunneling Underground Mining dump truck 1

RT - 20 Heavy Duty Dump Truck With DANA Axles For Roadway / Railway Tunneling Underground Mining dump truck 2





ROXMECH® was developed through years of exchanges and hands-on work with mining
operations in China and some parts of the world where mining is the lifeblood of the econ-
omy. In every product we build, our reputation and experience can be seen. That’s the rea-
son to choose us if you are looking to improve your productivity and reduce costs.



KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.



Tags: Load Haul Dump Machine, Low Profile Dump Truck
