High Strength Alloy Steel Integral Drill Rod For Small Hole Rock Drilling H19 Shank 19 x 108mm

High Strength Alloy Steel Integral Drill Rod For Small Hole Rock Drilling H19 Shank 19 x 108mm

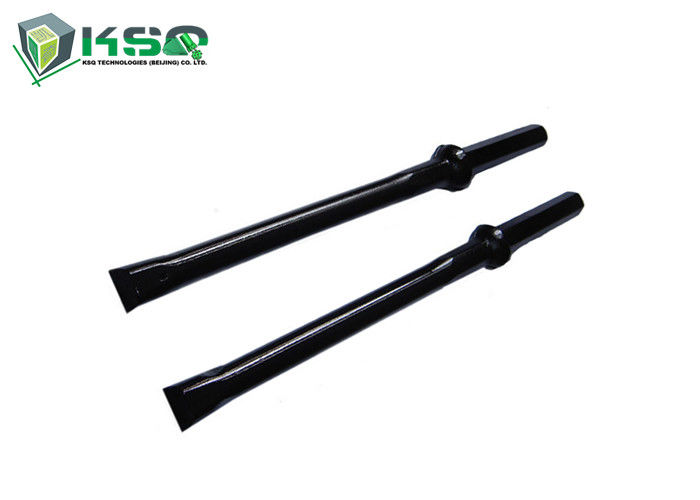

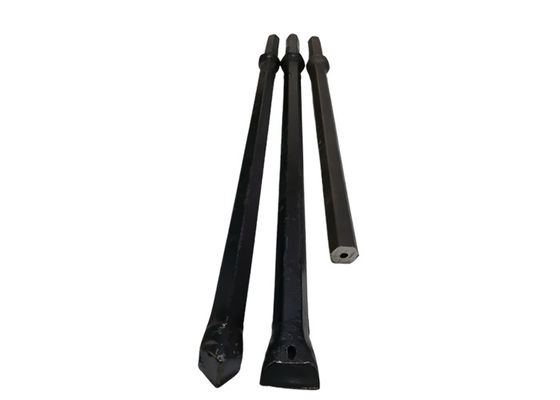

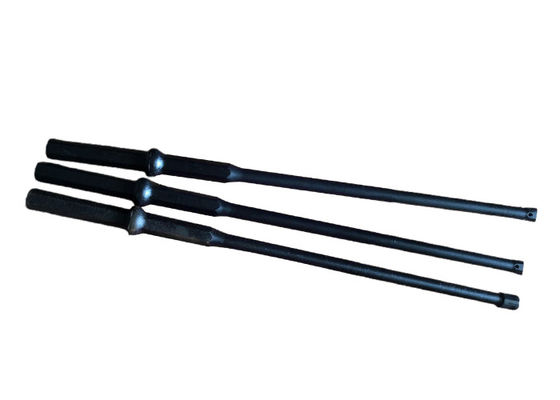

    • High Strength Alloy Steel Integral Drill Rod For Small Hole Rock Drilling H19 Shank 19 x 108mm
    • High Strength Alloy Steel Integral Drill Rod For Small Hole Rock Drilling H19 Shank 19 x 108mm
    • High Strength Alloy Steel Integral Drill Rod For Small Hole Rock Drilling H19 Shank 19 x 108mm
    • High Strength Alloy Steel Integral Drill Rod For Small Hole Rock Drilling H19 Shank 19 x 108mm
    • High Strength Alloy Steel Integral Drill Rod For Small Hole Rock Drilling H19 Shank 19 x 108mm
  • High Strength Alloy Steel Integral Drill Rod For Small Hole Rock Drilling H19 Shank 19 x 108mm

    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Model Number: Integral Drill Rod

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 Pieces
    Price: negotiation
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 25 days
    Supply Ability: 20000 pieces per month
    Contact Now
    Detailed Product Description
    Diameter: 29-35mm Length: 400-4000mm
    Shank Length: 19*108mm Body: Hex



    Sizes of Integral Drill Rod For Small Hole Rock Drilling



    Integral drill rod or integral drill steels, integral rods are used by hand held rock drill in granite and marble quarries, underground mining, for small blasting hole drilling.



    It can reduces the expense of impact energy, improves the drilling speed and efficiency, also it can be used for drilling bore hole diameter from 19mm to 41mm usually. Each rods use premium quality alloy steel and excellent quality tungsten carbide to assure high drilling performance.



    Basic Information:



    Product Name:

    Integral Drill Rod

    Shank

    Shank 19mm x108mm, Shank22x108mm

    Diameter

    29mm-41mm

    Length

    400mm-8000mm

    Material:

    High strength alloy steel

    Type

    Chisel bit integral rod, Plug hole integral rod

    Color

     Black or based on customer requirements.

    MOQ:

    No MOQ required for testing and trial order



    H19- Chisel Bit Integral Drill Steel - Shank 19 x108mm



    Within the Dimensional Stone Quarrying Industry, hole sizes are generally quite small (Ø25-34mm) and are therefore too small to accommodate threaded equipment. H19 Chisel Bit Integral Rods with H19 x 108mm shank are suitable for the smaller hole ranges, between Ø25-27mm. Smallest available size is Ø23mm.



    Length Bit Diameter Weight Part Number
    mm foot mm kg
    400 1 1/3 29 1.3 4148300000
    500 1 2/3 29 1.5 4148300001
    800 2 5/8 28 2.2 4148300002
    1000 3 2/7 28 2.6 4148300003
    1200 4    27 3 4148300004
    1600 5 1/4 27 3.9 4148300005
    2400 7 7/8 26 5.7 4148300006
    3200 10 1/2 25 7.5 4148300007
    4000 13 1/8 24 9.2 4148300008

    400 1 1/3 24 1.3 4148300009
    800 2 5/8 23 2.2 4148300010

    600 2    27 1.7 4148300011
    1200 4    26 3 4148300012
    2000 6 5/9 24 4.8 4148300013
    2400 7 7/8 24 5.7 4148300014
    2700 8 6/7 24 6.3 4148300015

    400 1 1/3 35 1.3 4148300016
    800 2 5/8 34 2.2 4148300017



    H19-Chisel Bit Integral Drill Steel - Shank 22 x108mm



    Length Bit Diameter Weight Part Number
    mm foot mm kg
    400 1 1/3 24 1.5 4148300018
    400 1 1/3 29 1.5 4148300019
    600 2    27 1.7 4148300020
    800 2 5/8 23 2.3 4148300021
    800 2 5/8 28 2.3 4148300022
    1200 4    23 3.2 4148300023
    1600 5 1/4 27 4 4148300024
    2000 6 5/9 28 5 4148300025
    2400 7 7/8 26 5.8 4148300026
    3200 10 1/2 25 7.5 4148300027



    H22-Chisel Bit Integral Drill Steel - Shank 22 x108mm



    The H22 Integral drills steels, H22 x 108 mm shank, are the most common type within the Dimensional Stone Quarrying Industry. The product range includes a Ø26 - 40 mm bit diameters and lengths from 0.4 – 7.2 meters.



    Length Bit Diameter Weight Part Number
    mm foot mm kg
    800 2 5/8 34 3 4148300035
    1600 5 1/4 33 5.2 4148300036
    2400 7 7/8 32 8 4148300037
    3200 10 1/2 31 10.2 4148300038
    4000 13 1/8 30 12.9 4148300039
    4800 15 3/4 29 15.1 4148300040
    5600 18 3/8 28 17.6 4148300041
    6400 21    27 20.1 4148300042
    7200 23 5/8 26 22.5 4148300043

    800 2 5/8 40 3 4148300044
    1600 5 1/4 39 5.2 4148300045
    2400 7 7/8 38 8 4148300046
    3200 10 1/2 37 10.2 4148300047
    4000 13 1/8 36 12.9 4148300048
    4800 15 3/4 35 15.1 4148300049
    5600 18 3/8 34 17.6 4148300050
    6400 21    33 20.1 4148300051
    7200 23 5/8 32 22.5 4148300052
    8000 26 1/4 31 25 4148300053

    400 1 1/3 34 1.7 4148300054
    800 2 5/8 33 3 4148300055
    1200 4    32 4.1 4148300056
    1600 5 1/4 31 5.2 4148300057
    2000 6 5/9 30 6.7 4148300058

    600 2    41 2.4 4148300059
    1200 4    40 4.3 4148300060
    1800 6    39 6.2 4148300061
    2400 7 7/8 38 8 4148300062

    400 1 1/3 41 1.7 4148300063
    800 2 5/8 29 3 4148300064
    800 2 5/8 38 3.1 4148300065
    1200 4    39 4.3 4148300066
    1600 5 1/4 36 5.2 4148300067
    1800 6    36 6 4148300068
    2000 6 5/9 32 6.7 4148300069
    2400 7 7/8 27 8 4148300070
    3200 10 1/2 27 10.2 4148300071
    3200 10 1/2 32 10.3 4148300072
    6400 21    30 20.1 4148300073
    8000 26 1/4 26 25 4148300074




    Pictures

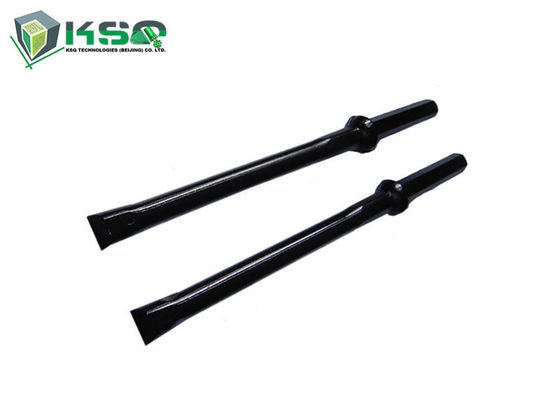

    High Strength Alloy Steel Integral Drill Rod For Small Hole Rock Drilling H19 Shank 19 x 108mm



    High Strength Alloy Steel Integral Drill Rod For Small Hole Rock Drilling H19 Shank 19 x 108mm



    Related Rock Drilling Tools

    (1) Integral Drill Rod– Chisel Bit Integral Rod and Plug Hole Integral Drill Steel
    (2) Tapered Rock Drill Tools - Chisel Bit,  Cross Bit, Taper Rod of Taper 7, 11, 12 degree
    (3) Threaded Rock Drill Tools - Button Bit, Extension Rod, Coupling of R25 R28, R32,R38,T38,T45,T51
    (4) Shank Adapters (Striking Bars) - Equivalent to Atlas Copco, Sandvik, Furukawa etc.
    (5)Down-the-hole (DTH) Bits& Hammers
