| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | Shank Adapter |
| Minimum Order Quantity: | 5 Pieces Shank Adappter |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 20 days Production |
| Supply Ability: | 20000 pieces per month |
| Color: | Black | Material: | Carbon Steel |
|---|---|---|---|
| Thread: | T45 T51 | Use: | To Connect Drill Rigs And Drill Rods |
| High Light: | drill bit shank adapter,threaded shank drill bit adapter |
||

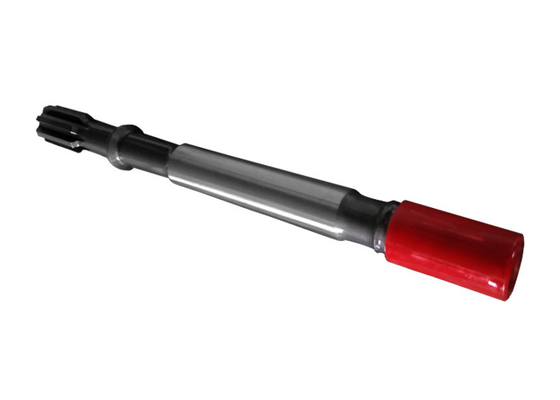

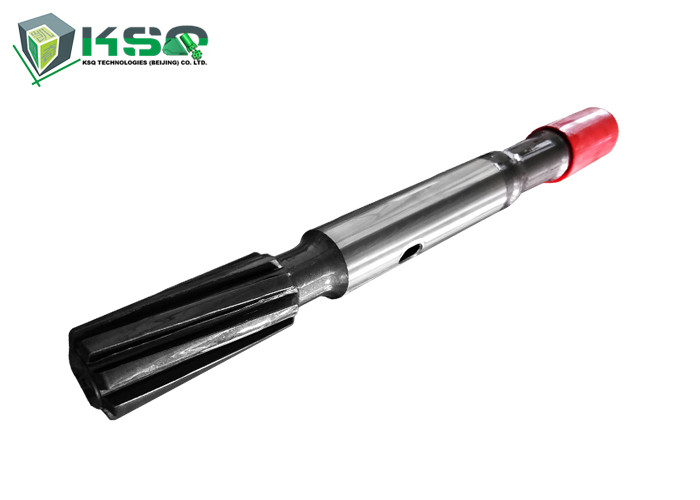

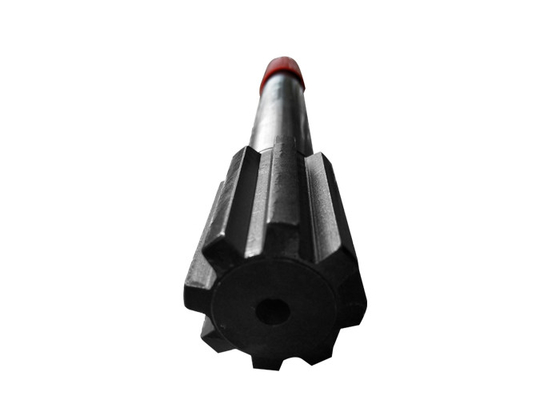

T45 T51 Drill Shank Adapter For Tamrock HL800 HL700 and Other Rock Drills
In top hammer drilling, the shank adapter transmits impact energy from the piston to the rod(s) or tube(s). Additionally, rotation torque is delivered via the shank adapter.
Shank adaptor or shank adapter/striking bar, the task of the shank adapter is to transmit rotation torque, feed
force, impact energy and flushing medium to the drill string.
The shank adapters from KSQ are there fore designed to with stand the high impact power of modern rock
drills and made from specially selected material which also is hardened through cauterizing. Around 300
different shank adapters suitable for different rock drills are currently available from Atlas Copco series drifters,
Tamrock series drifters, Garden Dever series drifters Atlas Copco, Boart, Furukawa, Gardner-Denver, Ingersoll-Rand, Montabert, SIG, Shank Adapter
Specification:
| Shank Adapter | Thread | Diameter | Length | Flushing | Weight | Part Number |
| mm | mm | kg | ||||
| /Tamrock HL 700, HL 800 | T45 | 45 | 600 | - | 7.2 | 414832648 |
| T38 | 52 | 600 | - | 8.0 | 414832649 | |
| T45 | 52 | 600 | - | 8.5 | 414832650 | |
| T51 | 50 | 600 | - | 8.5 | 414832651 |
Other Shank adapters:
| Thread | Manufacturer | Drifter | Length(mm) | Weight(kg) |
| R32 | Furukawa | HD120/200,M120 | 349.3 | 3.12 |
| R32 | Gardner-Denver | PR123,PR133 | 349.3 | 3.12 |
| R32 | Ingersoll-Rand | Evl130, VL120/140 | 349.3 | 3.12 |
| R38 | Atlas-Copco | BBE 51/52/57 | 448 | 4.9 |
| R38 | Furukawa | HD120/200,M120 | 349.3 | 3.26 |
| R38 | Ingersoll-Rand | Evl130, VL120/140 | 349.3 | 3.26 |
| R38 | Joy | VCR260/360 | 390.5 | 3.6 |
| R38 | Montabert | H100 | 448 | 4.9 |
| R38 | Tmrk | HL844 | 448 | 4.9 |
| R38 | Tmrk | L600 / 750 | 349.3 | 3.26 |
| T38 | Atlas-Copco | BBE56/57 | 530.4 | 5.5 |
| T38 | Atlas-Copco | COP1036/1038 | 590 | 5 |
| 1038ME/1238ME | ||||
| T38 | Furukawa | HD120/200,M120 | 349.3 | 3.4 |
| T38 | Furukawa | PD200 | 484 | 3.6 |
| T38 | Gardner-Denver | HPR1H(12 Spline) | 725 | 6.8 |
| T38 | Gardner-Denver | PR123/133/55 | 349.3 | 3.4 |
| T38 | Ingersoll-Rand | ELV130 | 349.3 | 3.4 |
| T38 | Ingersoll-Rand | ELV130 | 349.3 | 3.4 |
| T38 | Ingersoll-Rand | HC80RP (shot) | 669 | 7.9 |
| T38 | Ingersoll-Rand | VL120/140 | 349.3 | 3.4 |
| T38 | Joy | VCR260/360 | 390.5 | 3.6 |
| T38 | Montabert | HC80 | 591 | 6.68 |
| T38 | Montabert | HC80RP(Shot) | 669 | 7.9 |
| T38 | Montabert | HC80RP(Long) | 771 | 8.5 |
| T38 | Tmrk | HL438/538/844 | 495 | 3.6 |
| T38 | Tmrk | L600/750 | 349.3 | 3.4 |
| T45 | Atlas-Copco | BBE56/57/57-01 | 530.4 | 5.7 |
| T45 | Atlas-Copco | Cop1036/1038 | 590 | 5 |
| /1238ME | ||||
| T45 | Furukawa | HD120/200,M120 | 349.3 | 3.6 |
| T45 | Gaedner-Denver | HPR1H 12Spline | 725 | 5.7 |
| T45 | Gaedner-Denver | PR132 | 349.3 | 5 |
| T45 | Gaedner-Denver | PR66 | 558.8 | 3.6 |
| T45 | Ingersoll-Rand | EVL130,VL140 | 349.5 | 5 |
| 12 Spline | ||||
| T45 | Ingersoll-Rand | EVL130, VL120/140 | 558.8 | 3.6 |
| T45 | Ingersoll-Rand | VL671 w 3/4" tube | 349.5 | 5.9 |
| T45 | Ingersoll-Rand | VL671 w 9/16" tube | 533.4 | 6 |
Pictures
Competitive Advantage
Applications
• Bolting, drifting
• Bench drilling
• Production drilling
