    Product Details:

    Place of Origin: Shangdong,China
    Brand Name: MIROC
    Certification: ISO
    Model Number: Taper Drill Rod

    Payment & Shipping Terms:

    Minimum Order Quantity: 20 Pieces
    Price: negotiation
    Packaging Details: Wooden Box or Bundle
    Delivery Time: 10-20days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 30000pcs per month
    Contact Now
    Detailed Product Description
    Type: Taper Drill Rod Taper: 7degree,11degree, 12 Degree
    Length: 610mm-8000mm Shank: Shank 22x108mm



     600mm 800mm 1200mm 1600mm 2000mm Taper Drill Rod - 7 Degree,  11 Degree, 12 Degree



    Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.



                                    Taper Drill Rod- Taper 7° , Taper 11°, Taper 12°





    Product Name:

    Hex tapered rod

    Types

    Tapered drill rods, Integral drill rods, Plug hole rods

    Application::

    Tapered drill rods are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling

    We can produce as your request of carbide size, different length of drill rods.

    Types of drill rods

    Specifications

    Length            (mm)

    Shank

    Weight (kg)

    Tapered drill rods

    Taper Angle: 4, 6, 7, 11, 12 degree

    400mm to 8000mm

    Hex22mm*108mm Hex25mm*159mm Hex19mm*108mm

    1.7 - 24.9

    Integral drill steel

    Bit diameter: 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm

    400mm to 4800mm

    3 – 15.4

    Plug hole rods

    Chisel bit diameter: 17mm, 20mm, 22mm

    150mm to 710mm

    0.6 - 2.9





    Application:



    • Suitable for small hole range drilling
    • Widely used in dimensional stone quarrying industry and underground mining industry.



    Specification:



    Tapered Rock Drilling Tools - 7 degree, Shank 22 x 108mm

    Length Weight Part Number
    mm foot kg
    600 2    1.93 4148300179
    800 2 5/8 2.54 4148300180
    1000 3 2/7 3.15 4148300181
    1200 4    3.76 4148300182
    1500 5    4.68 4148300183
    1600 5 1/4 4.98 4148300184
    1800 6    5.59 4148300185
    2000 6 5/9 6.2 4148300186
    2200 7 2/9 6.81 4148300187
    2300 7 5/9 7.12 4148300188
    2400 7 7/8 7.42 4148300189
    2500 8 1/5 7.73 4148300190
    2600 8 1/2 8.03 4148300191
    3000 9 5/6 9.25 4148300192
    3500 11 1/2 10.78 4148300193
    4000 13 1/8 12.3 4148300194
    4500 14 3/4 13.83 4148300195
    5000 16 2/5 15.35 4148300196
    5500 18    16.88 4148300197
    6000 19 2/3 18.3

    4148300198





    Tapered Rock Drilling Tools - 7 degree, Shank 25 x 159mm

    Length Weight Part Number
    mm foot kg
    4000 13 1/8 16.1 4148300199
    4700 15 3/7 18.9 4148300200
    5000 16 2/5 22.1 4148300201
    5500 18    22.1 4148300202
    6000 19 2/3 24.1 4148300203



    Tapered Rock Drilling Tools - 11 degree, Shank 22 x 108mm

    Length Weight Part Number
    mm foot kg
    610 2    2.2 4148300241
    1220 4    4.1 4148300242
    1830 6    5.9 4148300243
    2000 6 5/9 6.4 4148300244
    2435 8    7.8 4148300245
    2600 8 1/2 8.3 4148300246
    3200 10 1/2 10.1 4148300247
    3655 12    11.5 4148300248
    4000 13 1/8 12.6 4148300249
    4800 15 3/4 14.9 4148300250
    5600 18 3/8 17.4 4148300251
    6400 21    19.8 4148300252
    7200 23 5/8 22.2 4148300253
    8000 26 1/4 24.6 4148300254



    Tapered Rock Drilling Tools - 12 degree, Shank 22 x 108mm

    Length Weight Part Number
    mm foot kg
    610 2    2.2 4148300291
    1220 4    4.1 4148300292
    1830 6    5.9 4148300293
    2000 6 5/9 6.4 4148300294
    2435 8    7.8 4148300295
    2600 8 1/2 8.3 4148300296
    3200 10 1/2 10.1 4148300297
    3655 12    11.5 4148300298
    4000 13 1/8 12.6 4148300299
    4800 15 3/4 14.9 4148300300
    5600 18 3/8 17.4 4148300301
    6400 21    19.8 4148300302
    7200 23 5/8 22.2 4148300303
    8000 26 1/4 24.6 4148300304



    Tapered Rock Drilling Tools - 12 degree, Shank 25 x 159mm

    Length Weight Part Number
    mm foot kg
    1830 6    7.96 4148300305
    2435 8    10.38 4148300306
    3050 10    12.84 4148300307
    3655 12    15.26 4148300308
    3965 13    16.5 4148300309
    4270 14    17.72 4148300310
    4880 16    20.16 4148300311
    5530 18 1/7 22.76 4148300312
    6095 20    25.02 4148300313



    Order information:

    Drill rod shank type + Taper degree + Length



     (1) Type: Shank 22 x 108mm, Shank 25 x 159mm

     (2) Taper degree: 7 degree, 11 degree, 12 degree

     (3) Length: 600mm,  1000mm, 1200mm, 1500mm, 1600mm, 2000mm, 3000mm, 4000mm, 5000mm etc.

          We can design and munufacture according to your specical requirements.

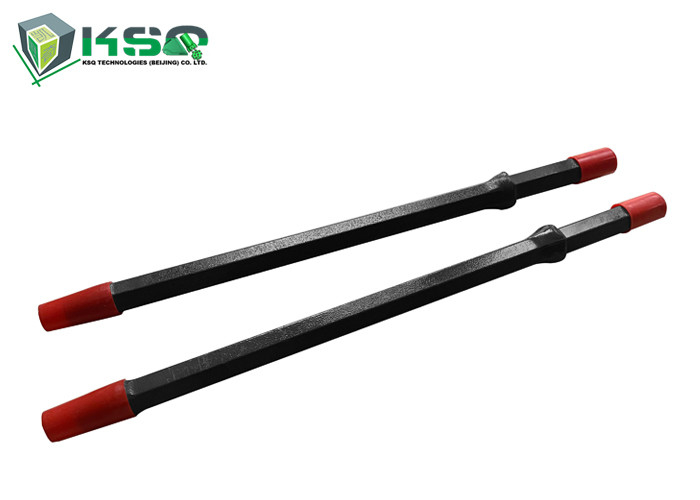

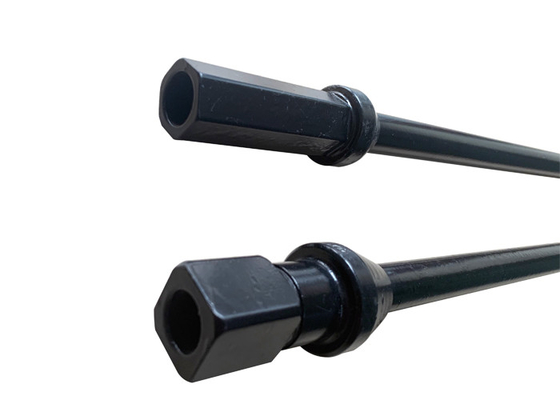

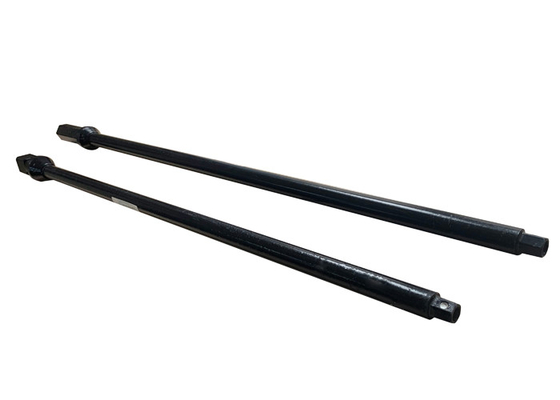

    Pictures:
