Underground Mining DTH Drilling Tools Drill Sub / DTH Adapter

Underground Mining DTH Drilling Tools Drill Sub / DTH Adapter

    • Underground Mining DTH Drilling Tools Drill Sub / DTH Adapter
    • Underground Mining DTH Drilling Tools Drill Sub / DTH Adapter
  • Underground Mining DTH Drilling Tools Drill Sub / DTH Adapter

    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Certification: API
    Model Number: DTH Sub

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Pieces DTH Sub
    Price: negotiation
    Packaging Details: Bundle and Wooden Box
    Delivery Time: 10- 25 days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 20000pcs per month
    Contact Now
    Detailed Product Description
    Type: DTH Sub/ DTH Adapter Length: 140mm - 225mm
    Diameter: 59mm- 115mm Thread: 2 3/8'' API Reg, 2 7/8'' API Reg, 3 1/2‘’ API Reg



    Underground Mining DTH Drilling Tools Drill Sub / DTH Adapter



    In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.



    Specification:



    DTH Subs Specification
    Female- Male
    Female A Male B Diameter A Diameter B Length Wrench flat Weight Part Number
    mm mm mm mm kg
    2 3/8"API Reg 2 3/8"API Reg 77 77 140 65 4.0 4148301570
    2 3/8"API Reg 2 3/8"API Reg 90 90 140 65 5.5 4148301571
    2 3/8"API Reg 2 3/8"API Reg 102 102 130 76 7.8 4148301572
    2 3/8"API Reg 2 3/8"API Reg 90 90 144 65 5.5 4148301573
    2 3/8"API Reg 2 3/8"API IF 95 95 130 65 8.0 4148301574
    2 3/8"API Reg 2 7/8"API Reg 90 102 120 95 10.5 4148301575
    2 3/8"API IF 3 1/2"API Reg 90 90 164 65 6.8 4148301576
    2 7/8"API Reg 2 3/8"API Reg 90 90 154 65 6.5 4148301577
    2 7/8"API Reg 2 3/8"API Reg 90 115 120 95 11.0 4148301578
    3 1/2"API Reg 3 1/2"API Reg 115 115 219 95 12.5 4148301579
    3 1/2"API Reg 2 3/8"API IF 115 115 160 95 10.5 4148301580
    3 1/2"API Reg 2 7/8"API Reg 115 115 160 95 10.8 4148301581
    3 1/2"API Reg 2 7/8"API IF 115 115 160 95 10.8 4148301582
    3 1/2"API Reg 3 1/2"API Reg 115 115 160 95 10.5 4148301583
    3 1/2"API Reg 4 1/2"API Reg 146 146 132 120 16.5 4148301584
    4 1/2"API Reg 3 1/2"API Reg 146 115 235 95 19.0 4148301585
    F48×10 F42×10 59 59 203 40 - 4148301586
    F48×10 F48×10 59 59 203 40 - 4148301587
    F48×10 2"API Reg 59 59 203 40 - 4148301588
    Female - Female
    Female A Male B Diameter A Diameter B Length Wrench flat Weight Part Number
    mm mm mm mm kg
    2 3/8"API Reg 2 3/8"API Reg 77 77 200 65 4.5 4148301589
    2 3/8"API Reg 2 3/8"API Reg 90 90 200 65 6.0 4148301590
    2 3/8"API Reg 2 7/8"API Reg 90 90 225 65 6.2 4148301591
    2 3/8"API Reg 3 1/2"API Reg 115 115 210 95    10.0 4148301592
    Male - Male
    Female A Male B Diameter A Diameter B Length Wrench flat Weight Part Number
    mm mm mm mm kg
    2 3/8"API Reg 2 3/8"API Reg 90 90 70 65 4.6 4148301593
    2 3/8"API Reg 3 1/2"API Reg 90 115 97 95 9.0 4148301594
    3 1/2"API Reg 3 1/2"API Reg 115 115 90 95 10.0 4148301595



    Applications



    • Underground mining
    • Quarry benching operations
    • Water well drilling



    Pictures:

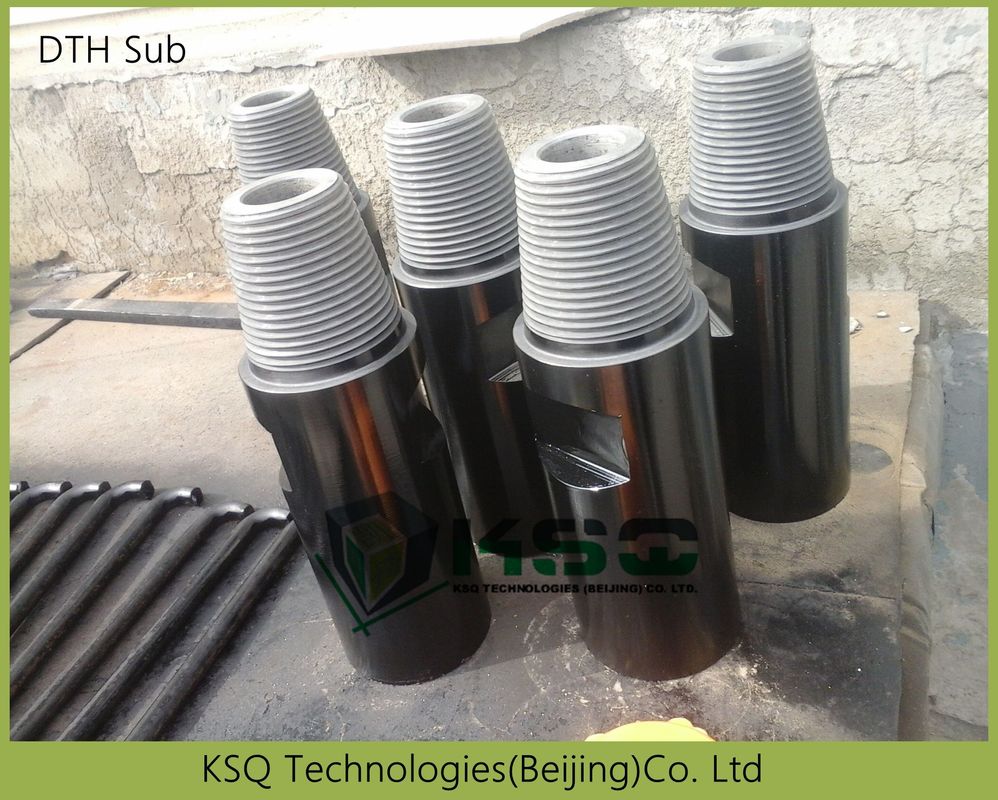

    Underground Mining DTH Drilling Tools Drill Sub / DTH Adapter
