High Grade Steel DTH Drilling Tools API Standard Drilling Pipe with Wrench Flat

High Grade Steel DTH Drilling Tools API Standard Drilling Pipe with Wrench Flat

    • High Grade Steel DTH Drilling Tools API Standard Drilling Pipe with Wrench Flat
    • High Grade Steel DTH Drilling Tools API Standard Drilling Pipe with Wrench Flat
    • High Grade Steel DTH Drilling Tools API Standard Drilling Pipe with Wrench Flat
    • High Grade Steel DTH Drilling Tools API Standard Drilling Pipe with Wrench Flat
    • High Grade Steel DTH Drilling Tools API Standard Drilling Pipe with Wrench Flat
  • High Grade Steel DTH Drilling Tools API Standard Drilling Pipe with Wrench Flat

    Product Details:

    Place of Origin: China
    Brand Name: MIROC
    Certification: API
    Model Number: DTH Drill Pipe

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 Pieces DTH Pipe
    Price: negotiation
    Packaging Details: Bundle and Wooden Box
    Delivery Time: 10- 25 days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 20000pcs per month
    Contact Now
    Detailed Product Description
    Type: DTH Drill Pipes Length: 1000mm-6000mm
    Diameter: 76mm 89mm 102mm Processing Type: Forging
    Quality Level:: 95% Similarity To COP/SD/MISSION/QL/BR/DHD Etc Famous Brand MOQ:: No Requirement For Testing And Trial Order



    High Grade Steel DTH Drilling Tools API Standard Drilling Pipe with Wrench Flat



    In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.



    Product Name:

    DTH drill pipe

    Description:

    dth button bit are used for blast hole drilling and water well drilling project.

    Working with DTH drilling pipe and DTH drill bit, mainly applied in Mining,

    Marble quarry or well drilling and other construction projects.

    Quality level:

    95% similarity to COP/SD/MISSION/QL/BR/DHD etc famous brand

    MOQ:

    No requirement for testing and trial order

    Series:

    COP/ SD/ DHD/ IR/ Mission/ QL/ BR/ CIR etc



    Competitive Advantage

    High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance



    Specification:



    DTH Drill Pipe for Atlas Roc F6/L6/L8

    Diameter

    (inch)

    Diameter

    (mm)

    Thread Pin/Box Wall thickness

    Length

    (feet)

    Length

    (m)

    Wrench Flat Weight(kg)
    3 76 2 3/8" API REG 6 13.1 4 No wrench flats 48
    3 76 2 3/8" API REG 6 16.4 5 No wrench flats 58

    3.5 89 2 3/8" API REG 6 13.1 4 No wrench flats 60
    3.5 89 2 3/8" API REG 6 16.4 5 No wrench flats 74
    3.5 89 2 3/8" API REG 6 19.7 6 No wrench flats 84
    3.5 89 2 3/8" API REG 6 19.7 6 No wrench flats 127

    4 102 2 7/8" API REG 6 13.1 4 No wrench flats 69
    4 102 2 7/8" API REG 6 16.4 5 No wrench flats 89
    4 102 2 7/8" API REG 6 19.7 6 No wrench flats 105

    4.5 114 3 1/2" API REG 6 19.7 6 No wrench flats 115
    4.5 114 3 1/2" API REG 8 19.7 6 No wrench flats 159

    5.5 140 4 1/2" API REG 8 19.7 6 No wrench flats 200

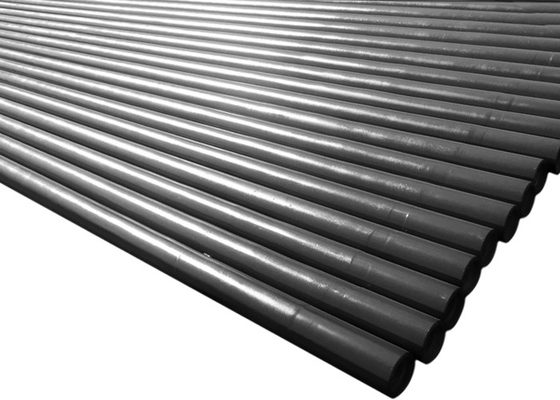

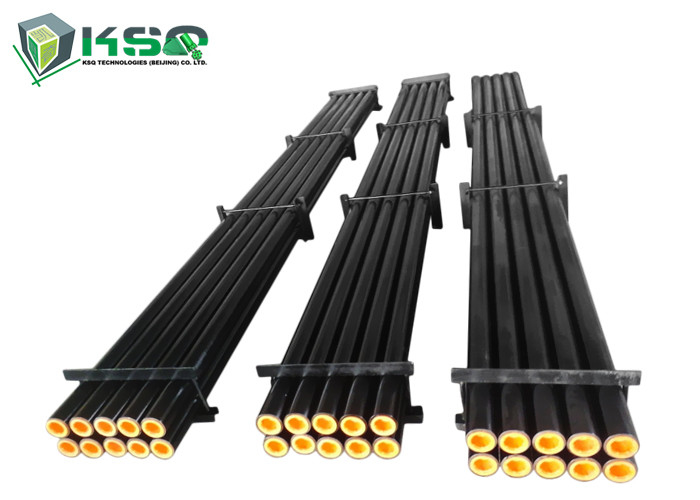

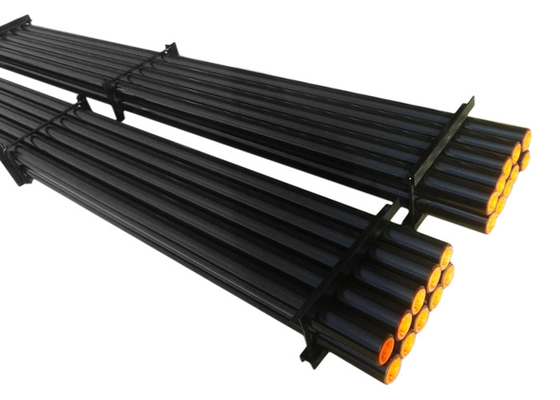

    Pictures:

    High Grade Steel DTH Drilling Tools API Standard Drilling Pipe with Wrench Flat



    High Grade Steel DTH Drilling Tools API Standard Drilling Pipe with Wrench Flat



    Applications

    • Underground mining
    • Quarry benching operations
    • Water well drilling
