Place of Origin: | Shangdong,China |
Brand Name: | MIROC |
Certification: | API |
Model Number: | Thread coupling sleeves |
Minimum Order Quantity: | 50 Pieces |
---|---|
Price: | negotiation |
Packaging Details: | Wooden Plate |
Delivery Time: | 10-25days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 20000pcs per month |
Material: | Tungsten Carbide | Processing Type: | CNC Milling And Proprietary Heat Treatment Process |
---|---|---|---|
Coupling: | T38-T38 | Crossover Coupling: | T38-R32/T38-T45 |
Diameter: | 54-66MM | Length: | 190-215MM |
Use: | Tunneling, Mining,Quarrying,Construction | Color: | Green, Black And Demaned By Customer |
High Light: | crossover coupling,rock drilling tool |

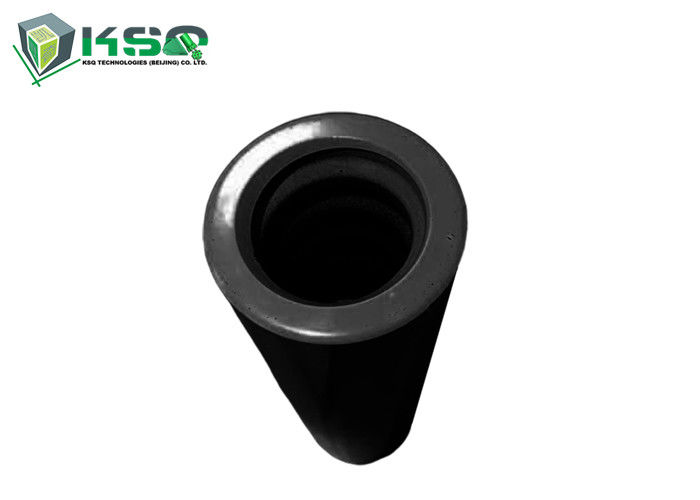

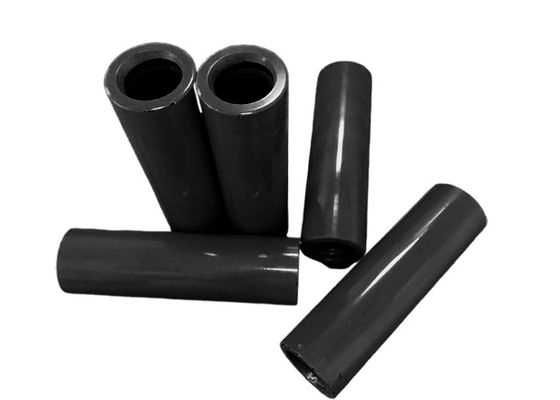

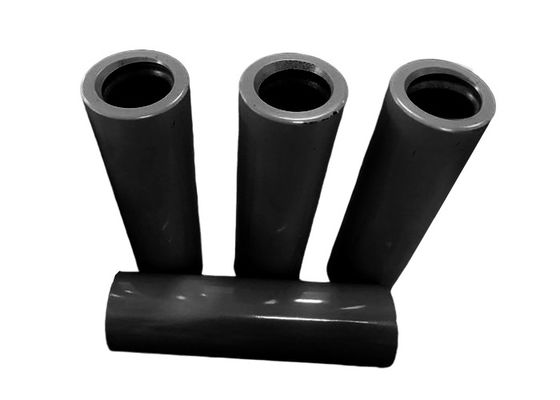

T38 Coupling Drill Rod Coupling T38-T38 Coupling Sleeve Adapter Sleeve Drill Pipe Coupling
Describtion
In top hammer drilling, the shank adapter transmits impact energy from the piston to the rod(s) or tube(s). Additionally, rotation torque is delivered via the shank adapter.
Color: Green, Black or Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: Thread coupling sleeves
Specification
Couplings (T38) | D | L | ||
mm | inch | mm | Ft inch | |
T38-T38 | 54 | 2 1/8" | 190 | 7' 1/2" |
Crossover type T38-R32 |
54 | 2 1/8" | 188 | 7' 1/2" |
Crossover type T38-T45 |
66 | 2 1/2" | 215 | 8' 1/2" |
KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.
Tap: Thread Drill Coupling
