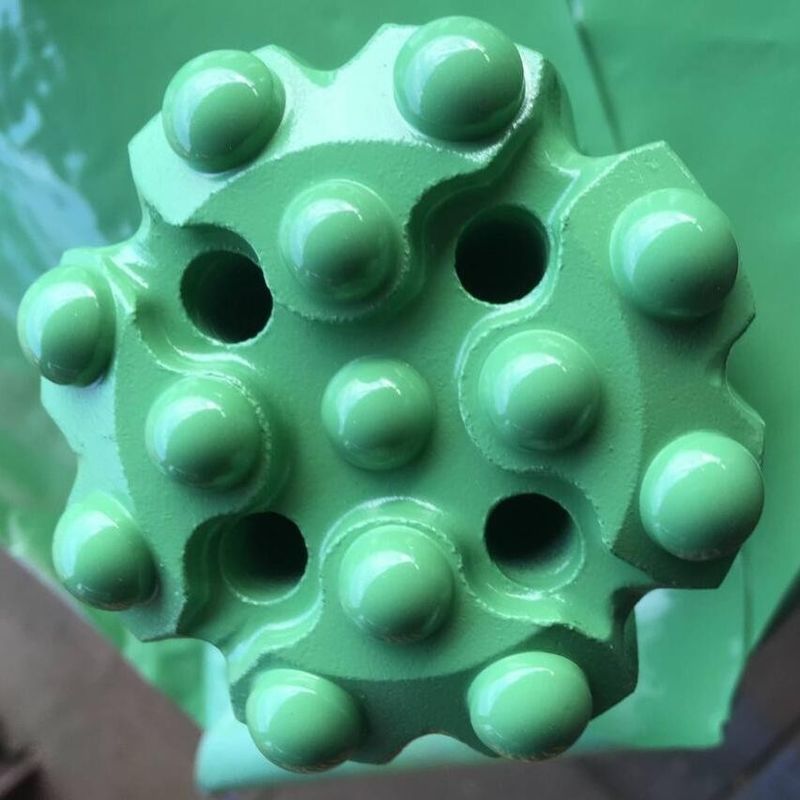

Straigh Hole Application Drop Center Retractable Drill Bit Button Rock Drilling Bits

Straigh Hole Application Drop Center Retractable Drill Bit Button Rock Drilling Bits

    • Straigh Hole Application Drop Center Retractable Drill Bit Button Rock Drilling Bits
    • Straigh Hole Application Drop Center Retractable Drill Bit Button Rock Drilling Bits
    • Straigh Hole Application Drop Center Retractable Drill Bit Button Rock Drilling Bits
  • Straigh Hole Application Drop Center Retractable Drill Bit Button Rock Drilling Bits

    Product Details:

    Place of Origin: Shangdong,China
    Brand Name: MIROC
    Certification: ISO9001:2000
    Model Number: Retractable Button Drill Bits

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 Pieces
    Price: negotiation
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 10-22days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 30000pcs per month
    Contact Now
    Detailed Product Description
    Type: Retractable Button Drill Bits Thread: T38,T45
    Processing Type: Forging Use: Mining,Tunneling,Quarrying,Construction
    Colour: Orange,Green Button: Ballistic,Spherical



    Straigh Hole Application Drop Center Retractable Drill Bit Button Rock Drilling Bits



    Description

    Button bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.



    • Widely used drifting and tunneling
    • Bit face design is ideal for medium-hard to hard abrasive rock



    Product Name:

    different rock hardness drilling button bit

    Description:

    For different rock hardness mining,tunneling,quarrying button bit

    Button bit Made with high quality of best quality alloy steel bar and tungsten carbide, through heat treatment.

    Material:

    Alloy steel bar and tungsten carbide bit

    MOQ:

    trial order 1-5pcs

    Body Type

    Normal type and retract type

    Thread type

    R25,R28,R32,R38,T38,T45,T51,ST58,ST68

    Diameter

    32mm-152mm

    Button bit shape

    Spherical and Ballistic

    Face shape

    Flat shape and Drop-center shape



    Button bit and Insert types
    Spherical Button Characteristics:
    1. Universal button
    2. Good wear resistance
    3. Best suited for hard ground
    4. 27000-48000PSI(180 to 320Mpa)
    5. Suited for abrasive to very abrasive drilling conditions


    Ballistic Button Characteristics:
    1. Fast Penetration
    2. Best suited for soft rock
    3. 10000-20000PSI(70 to 140Mpa)
    4. Suited for non-abrasive drilling conditions


    Straigh Hole Application Drop Center Retractable Drill Bit Button Rock Drilling Bits



    Applications of  rock drilling Bit

    • Underground mining
    • Tunneling,quarrying





    Competitive Advantage

    • High grade tungsten carbide inserts
    • Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
