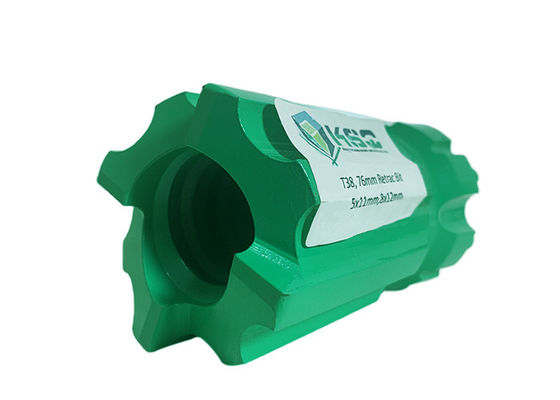

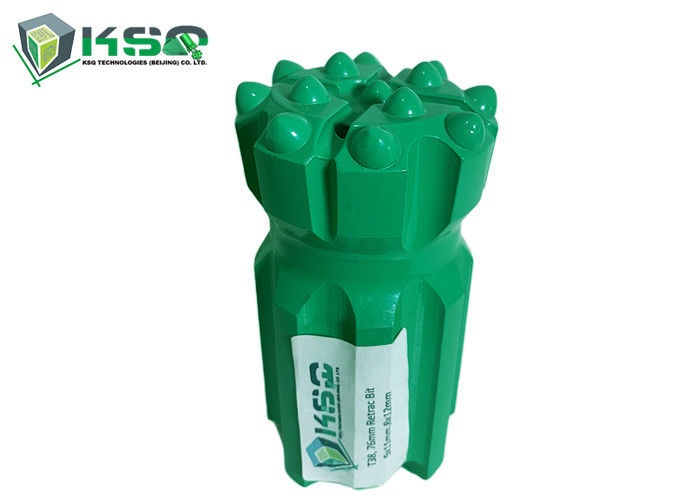

Tungsten Carbide Inserts Top Hammer Drilling Tools Retractable Drill Bit for Hard Rock Drilling

Tungsten Carbide Inserts Top Hammer Drilling Tools Retractable Drill Bit for Hard Rock Drilling

    • Tungsten Carbide Inserts Top Hammer Drilling Tools Retractable Drill Bit for Hard Rock Drilling
    • Tungsten Carbide Inserts Top Hammer Drilling Tools Retractable Drill Bit for Hard Rock Drilling
    • Tungsten Carbide Inserts Top Hammer Drilling Tools Retractable Drill Bit for Hard Rock Drilling
  • Tungsten Carbide Inserts Top Hammer Drilling Tools Retractable Drill Bit for Hard Rock Drilling

    Product Details:

    Place of Origin: China(Mainland)
    Brand Name: MIROC by KSQ
    Certification: ISO9001
    Model Number: Retractable Drill Bit

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 Pieces
    Price: USD$20-$200
    Packaging Details: Carton Box or Wooden Box
    Delivery Time: 15days
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 30000pcs per month
    Contact Now
    Detailed Product Description
    Type: Retractable Drill Bit Thread Type: R38, T38, T45, T51 Etc
    Diameter: 35-152mm Processing Type: Forging
    Carbide Material: YK05 Use: Mining,Tunneling,Quarrying,Construction
    Color: Orange Or Customize Quality: Reliable

    Tungsten Carbide Inserts Top Hammer Drilling Tools Retractable Drill Bit for Hard Rock Drilling



    Description

    Button bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.



    • Widely used drifting and tunneling
    • Bit face design is ideal for medium-hard to hard abrasive rock



    Product Name:

    different rock hardness drilling button bit

    Description:

    For different rock hardness mining,tunneling,quarrying button bit

    Button bit Made with high quality of best quality alloy steel bar and tungsten carbide, through heat treatment.

    Material:

    Alloy steel bar and tungsten carbide bit

    MOQ:

    trial order 1-5pcs

    Body Type

    retract type

    Thread type

    R38,T38,T45,T51,ST58,ST68

    Diameter

    35mm-152mm

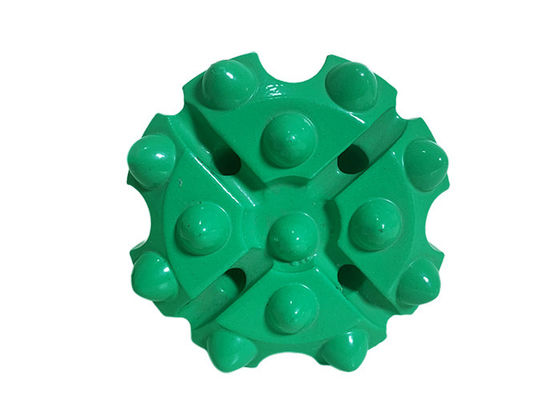

    Button bit shape

    Spherical and Ballistic

    Face shape

    Flat shape and Drop-center shape

    Tungsten Carbide Inserts Top Hammer Drilling Tools Retractable Drill Bit for Hard Rock Drilling

    Tungsten Carbide Inserts Top Hammer Drilling Tools Retractable Drill Bit for Hard Rock Drilling

    Tungsten Carbide Inserts Top Hammer Drilling Tools Retractable Drill Bit for Hard Rock Drilling

    Button bit and Insert types
    Spherical Button Characteristics:
    1. Universal button
    2. Good wear resistance
    3. Best suited for hard ground
    4. 27000-48000PSI(180 to 320Mpa)
    5. Suited for abrasive to very abrasive drilling conditions


    Ballistic Button Characteristics:
    1. Fast Penetration
    2. Best suited for soft rock
    3. 10000-20000PSI(70 to 140Mpa)
    4. Suited for non-abrasive drilling conditions



    Applications of  rock drilling Bit

    • Underground mining
    • Tunneling,quarrying



    Competitive Advantage

    • High grade tungsten carbide inserts
    • Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
