    Product Details:

    Place of Origin: Anhui,China
    Brand Name: MIROC
    Certification: ISO9001
    Model Number: Disc Filter

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Pieces
    Price: negotiation
    Packaging Details: Wooden Box or Seaworthy Package
    Delivery Time: 15-25days after receiving payment and order confirmation
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 50 Sets per month
    Contact Now
    Detailed Product Description
    Type: Disc Filter Eramic Filter Solid Filtration: <50ppm
    Filter Area: 30m3 Filter Disk Number: 120pcs
    Dis Diameter: 1920mm Length*Width*Height: 5800x3170x2530mm

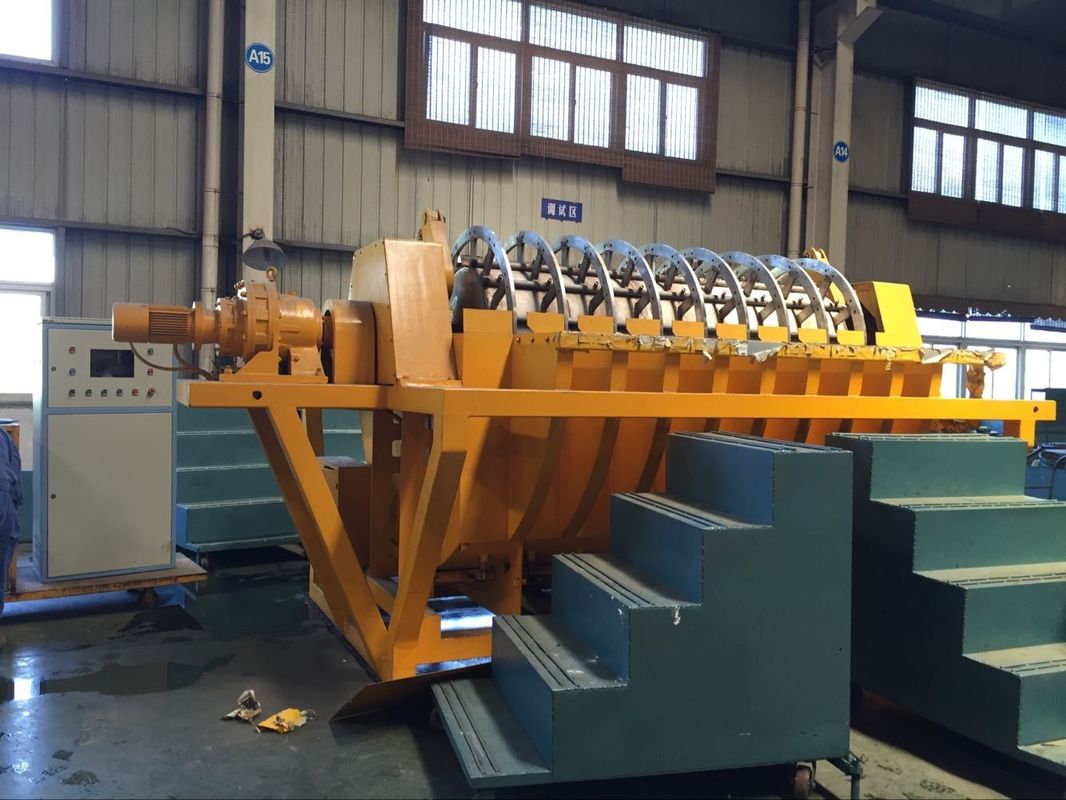

    Disc Filter , Industrial Filtering Separate liquids from Solid for Dewatering



    Ceramic Vacuum Filter System is extensively used in the mining industry to separate liquids from solids for dewatering purposes. The operation and construction principle is similar to a conventional disc filter except the filter medium is replaced by finely porous ceramic disc,providing resistance to almost all chemicals and havin a long operational life. The TT series is designed and manufactured based on specific requirements by clients.



    Technical Parameters of Filter Plate
    Name Parameters
    Water flux(pure water pressure 0.15MPa) ≥6400L /h.m2
    Pneumatic back flush test pressure ≥0.5Mpa
    Assembly precision Assembly ring plane and plate surface parallelism ±0.2mm
    Assembly ring  plane and the plate spacing 8±0.1mm
    Installation disk precision Assembly hole center and diagonal error ≤2mm
    Each plate spacing for disk   5±1mm
    The membrane surface abrasion total time                          (without scraper or other hard objects damage) ≥7000h
    Poriness ≥42%
    Bore diameter 2um-10um
    Breaking strength ≥30Mpa

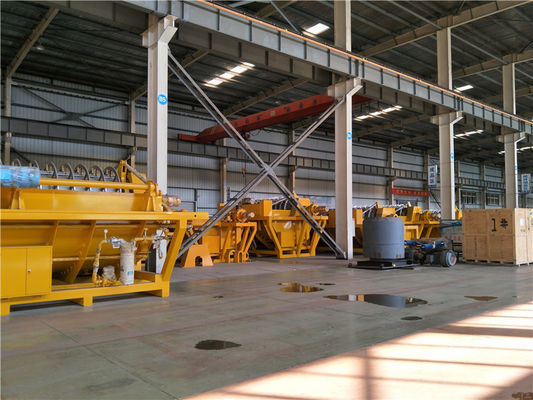

    Application at site for Ceramic Filter:



    Ceramic Disc Filter , Industrial Filtering Separate liquids from Solid for Dewatering



    Characteristics of Ceramic Vacuum Filter :



    1. High vacuum degree(0.09-0.098MPa),filter cake has low water content.

    2. Solid content of liquid the maximum is 25ppm,repeated application is available,drainage is lessened.

    3. It can save 90% energy or above in contrast with traditional filter with low consumption and low cost.

    4. Filter cake cleaning process is added to clean proper materials.

    5. It combines PLC,computer and automatic valve control with high automatization and labor force has been lowered.

    6. Compact structure,covering less floor area,conventient installation and maintenance.

    7. Advanced drainage system fits for any working conditons.
