| Place of Origin: | China |
| Brand Name: | ROXMECH |
| Certification: | API/CE Certificate |
| Model Number: | 1 CBM Load-Haul-Dump Machine |
| Minimum Order Quantity: | 1 Set Load-Haul-Dump Machine |
|---|---|
| Price: | negotiation |
| Packaging Details: | Nude Package or Based on Customer's Requirements |
| Delivery Time: | 1-3 Months |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 3pcs per month |
| Material: | Tungsten Carbide And High Quality Carbon Steel | Use: | Tunneling, Mining,Quarrying, Construction |
|---|---|---|---|
| Processing Type: | CNC Milling And Proprietary Heat Treatment Process | ||
| High Light: | underground lhd machines,load haul dump truck |
||

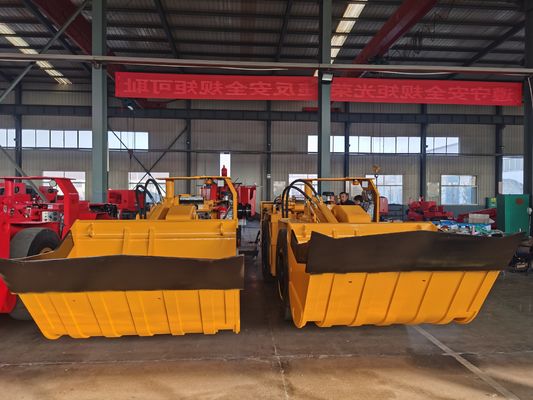

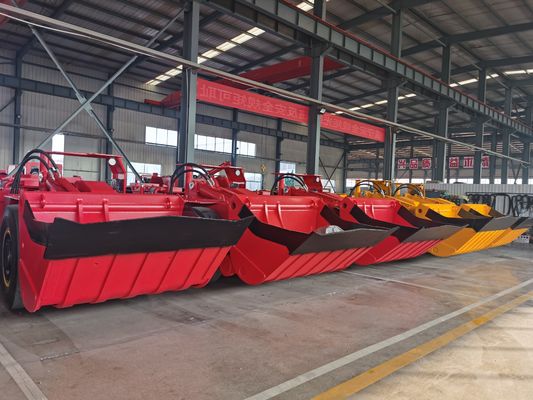

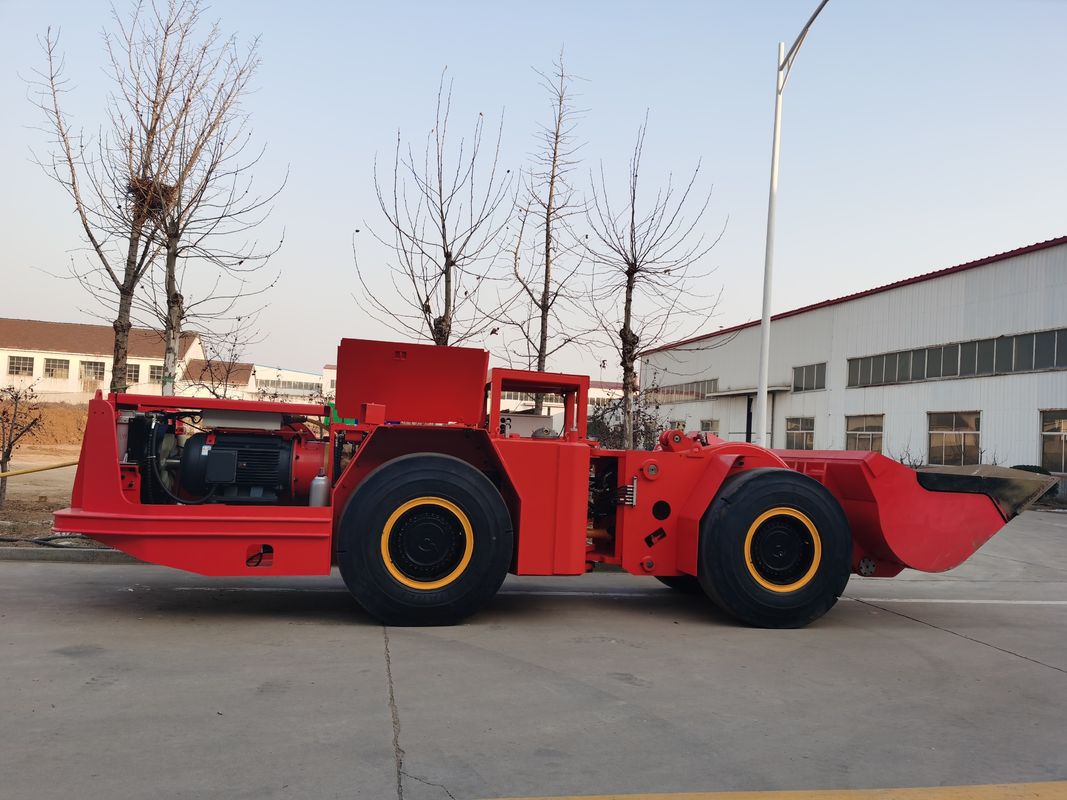

RL-1 Load Haul Dump Truck Used For Railway Tunneling Underground
Describtion
The RL-1 Load-Haul-Dump Machine is ideal for small scale rock excavation operations. The small footprint of the machine is possible thanks to the use of a hydrostatic drive system. It has high proven reliability, and straight-forward mechanical components that are easy to maintain.
Specification
| RL-1 Load-Haul-Dump Machine Main Dimensions | |
| Length | 6000mm (Haul postion) |
| Width | 1330mm |
| Height | 2037mm |
| Turning Radius | 2533mm(Inside) |
| 4260mm(Outside) | |
| Volume Capacity | 1m³ |
| Tramming Capacity | 2000kg |
| Engine | DEUTZ F4L914 air cooled diesel engine |
| Torque Converter | SAUER DANFOSS PV22 |
| Transmission | SAUER DANFOSS MV23 |
| Axles | XUZHOU-JINHE |
| Tires | 10.00-20.00 L5-S |
Applications
• Underground Mining
• Hydropower Tunneling
• Roadway/Railway Tunneling
• Can be utilized as a multi-role equipment with various attachments (i.e. shotcrete robot arm)
KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.
Tags: Load Haul Dump Machine, Low Profile Dump Truck
