| Place of Origin: | AnHui,China |
| Brand Name: | MIROC |
| Certification: | CE |
| Model Number: | Underground Diesel Scooptram |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Nude Packed or Based on Customers |
| Delivery Time: | 30-60 Days after receiving payment and order confirmation |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 40 Set/Sets per Month |
| Type: | Underground Diesel Scooptram | Color: | Orange,Yellow |
|---|---|---|---|
| Volume Capacity: | 0.6m3 | Tramming Capacity: | 1200KG |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Engine: | DEUTZ BF4L2011 |
| High Light: | underground lhd machines,lhd load haul dump |
||

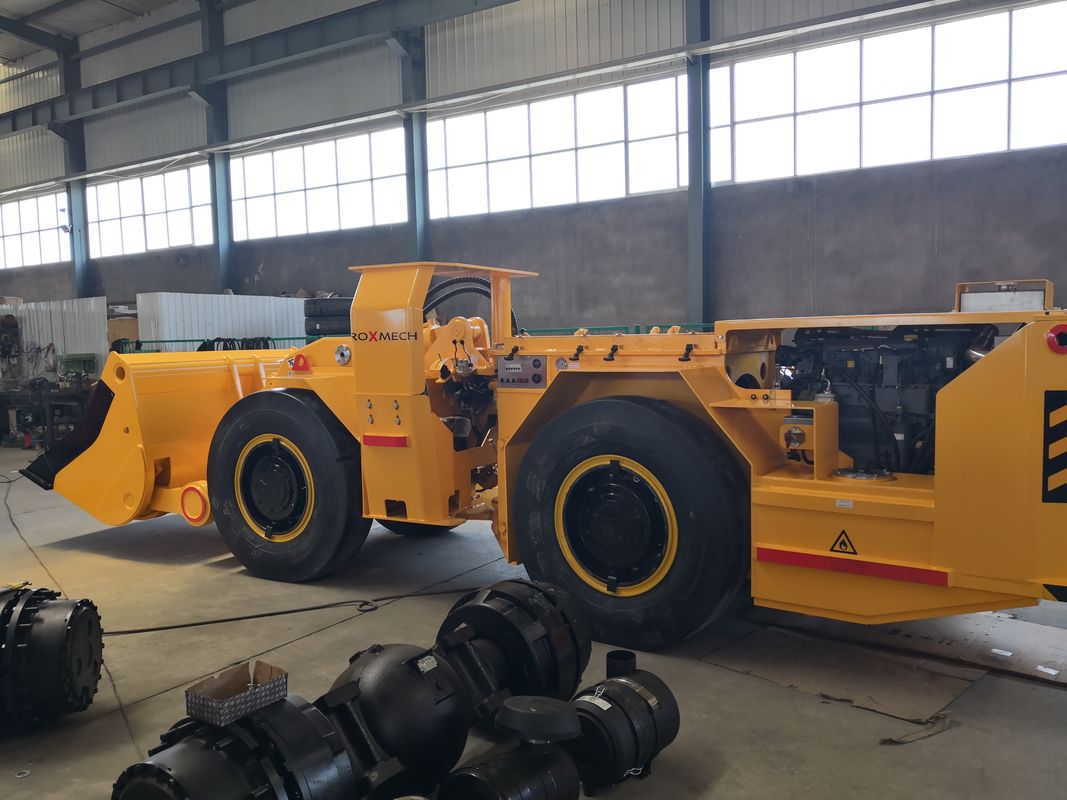

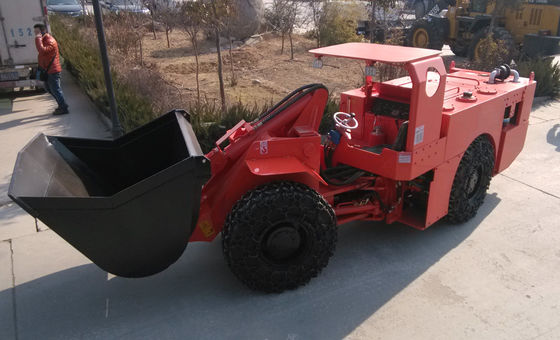

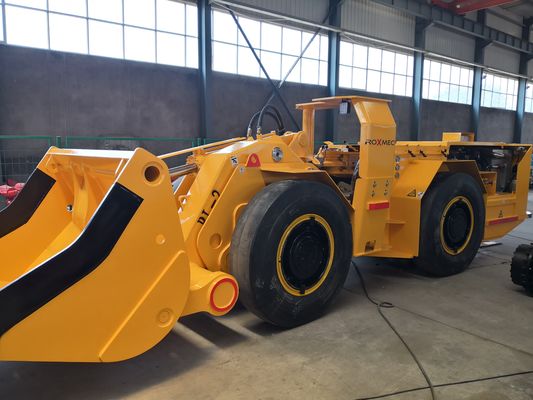

Excellent KSQ 0.6CBM Underground Diesel Scooptram Load Haul Dump
The RL-0.6 Load Haul Dump Machine is ideal for small scale rock excavation operations. The small footprint of the machine is possible thanks to the use of a hydrostatic drive system. It has high prove reliability,and straight-forward mechanical components that are easy to maintain.
|
Main Dimensions |
Length |
4850mm(haul position) |
|
Width |
1160mm |
|
|
Height |
1830mm |
|
|
Turning Radius |
Inside |
2533mm |
|
Outside |
3350mm |
|
|
Volume Capacity |
|
0.6m3 |
|
Tramming Capacity |
|
1200kg |
|
Engine |
|
DEUTZ BF4L2011 |
|
Driving Speed |
|
0-9km/h |
|
Maximum Relieving Force |
|
35kN |
|
Maximum Traction |
|
42kN |
|
Maximum Climbing Capacity |
|
20° |
Applications of Load Haul Dump
Underground Mining
Hydropower Tunneling
Roadway/Railway Tunneling
ROXMECH® Rock Excavation and Service/Support Equipment include:
RL-1 Load-Haul-Dump Machine
RL-2 Load-Haul-Dump Machine
RL-3 Load-Haul Dump Machine
RL-4 Load-Haul Dump Machine
RT-12 Low Profile Dump Truck
RT-15 Low Profile Dump Truck
RT-20 Low Profile Dump Truck
MT30D Low Profile Dump Truck
RS-3 Service Vehicle Series
MG-64A-SB Shotcrete Batcher
MT30M Low Profile Transmixer
ROXMECH®, by KSQ Technologies (Beijing) Co. Ltd., is a product line consisting of specialized
equipment for use in underground mining and tunneling works, such as Load-Haul-Dump
Machines (LHDs), Low Profile Trucks (LPTs), Scissors Lift Truck, Mobile Batching Equipment,
Service Vehicles, and Personnel Carriers.
ROXMECH® was developed through years of exchanges and hands-on work with mining
operations in China and some parts of the world where mining is the lifeblood of the econ-
omy. In every product we build, our reputation and experience can be seen. That’s the rea-
son to choose us if you are looking to improve your productivity and reduce costs.
